Armstrong Air®

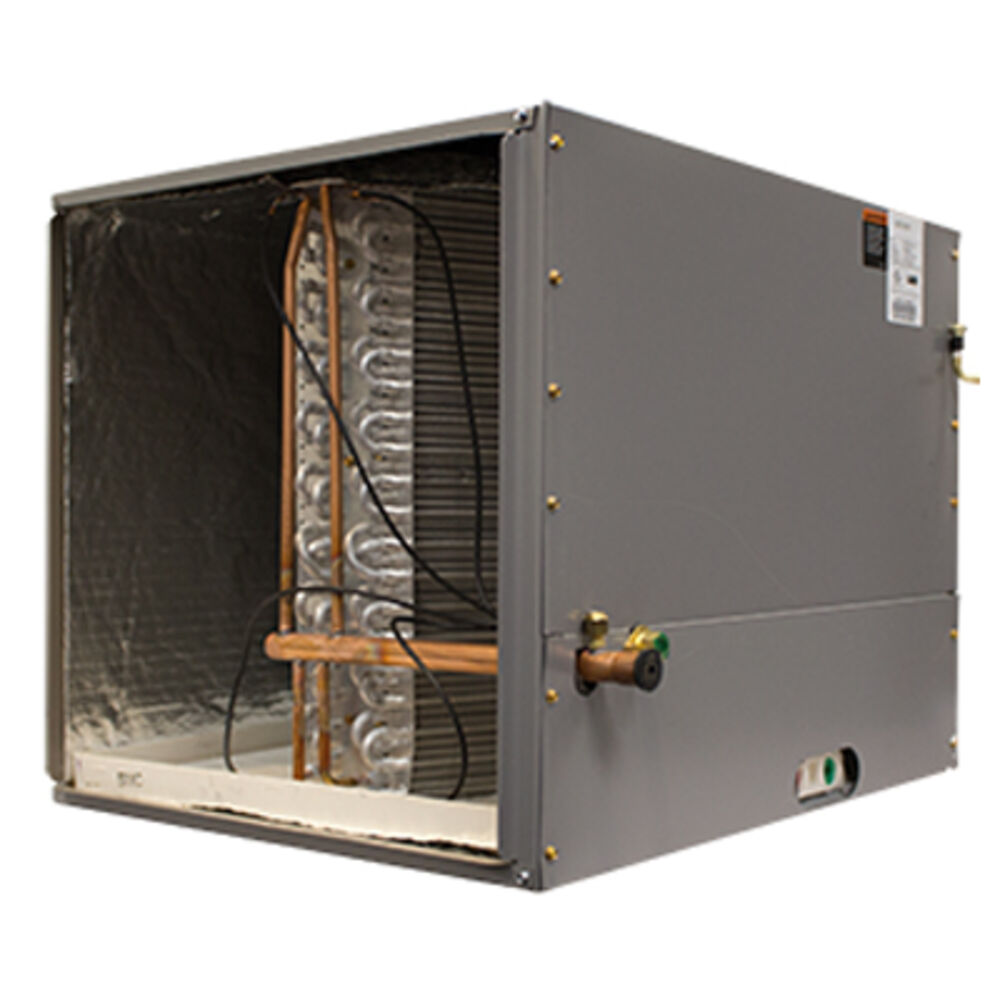

EAH1P36CG Omniguard™ Cased Horizontal Evaporator Coil, 3 Ton, 800 to 1600 cfm, R-410A Refrigerant, 21" Gas Furnace Compatible
Sign In to View Pricing & Availability
- EAH1P36CG Omniguard™ Cased Horizontal Evaporator Coil, 3 Ton, 800 to 1600 cfm, R-410A Refrigerant, 21" Gas Furnace Compatible, Aluminum, Platinum Gray
- Omniguard® Total Corrosion Protection- Armstrong Air's enhanced evaporator coil helps protect against leaks and corrosion for long- term performance. A fully-insulated cabinet and pre-bent duct flanges with rolled edges allow for a tight fit to existing ductwork, preventing heating and cooling losses.
- Anti-Microbial Protection- Drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce.
- Matched System- Armstrong Air's evaporator coils are specially designed and sized to match Armstrong Air heating and cooling products. Removable cabinets and a single drain pan offer quick access and easy clean up for lifelong performance efficiencies. Plus, when you add a matching coil, you get a system that runs at peak performance while maximizing efficiency.
- MHT™ Technology- Armstrong Air’s proprietary heat transfer system. A specially designed fan shroud pulls air evenly throughout the air conditioner’s coil surface. The coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air. All combine for maximum heat transfer and efficiency.
- Fully insulated cabinet- Wall-to-wall insulation ensures less than 2% air leakage increasing efficiency and energy savings.
- Cooling Capacity36,000 Btu/hrDomestic / ImportImportEnclosure TypeCasedFlow Rate800 to 1600 cfmNominal Capacity3 tonRefrigerant TypeR-410ASeriesEAH1PTypeHorizontalColorPlatinum GrayDimensions26-1/2 in W x 21 in H x 21-1/2 in DExpansion DevicePistonLiquid Line Size3/8 inManufacturerAllied Air EnterprisesManufacturer #EAH1P36CGMatching Gas Furnace Width21 inMaterialAluminumSub-BrandOmniguardSuction Line Size7/8 inWeight55 lb
