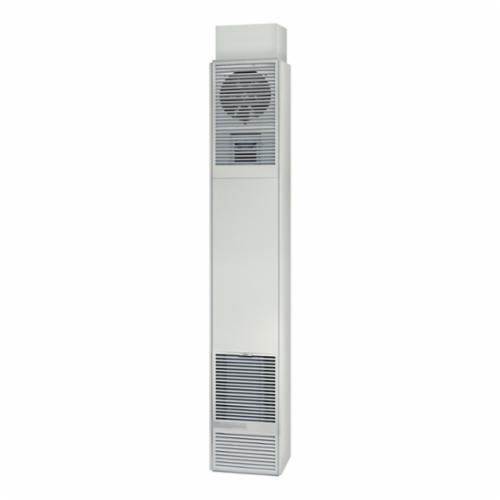

CozY 96801626 Top-Vent Counterflow Wall Furnace, 55000 BTU/hr Input, 42000 BTU/hr Output, 24 VDC, 440 cfm, Domestic

COZCF553DNG MFG #: 96801626
  • Flow Rate: 440 cfm
  • Input Capacity: 55,000 BTU/hr
  • Output Capacity: 42,000 BTU/hr
  • Voltage Rating: 24V
  • Connection Size: 1/2 in
  • Dimensions: 15-5/16 in W x 10-1/4 in D x 81-5/16 in H
  • Fuel Type: Natural Gas
  • Ignition Type: Ignitor
  • Manufacturer: Cozy Heating System
  • Manufacturer #: 96801626
  • Supply Opening Size: 4 in
  • Type: Top-Vent Counterflow
The combination of fan-forced efficiency, counterflow heat delivery and sealed combustion makes Cozy Direct-Vent Counterflow Wall Furnaces the perfect heater for multi-story units, room additions, garage apartments, vacation homes, and more. Cozy Top-Vent Counterflow Wall Furnaces can be mounted on any inside o outside wall, allowing maximum installation flexibility. The powerful, thermostatically controlled blower draws cool air into the upper grill and delivers warm air at floor level, distributing heat uniformly throughout the room.

CozY Wall Furnace, Top-Vent Counterflow, 55000 BTU/hr Input, 42000 BTU/hr Output, 24 VDC, 440 cfm, Natural Gas, 4 in Supply Opening Size, 1/2 in, Ignitor Ignition, Eggshell White, 15-5/16 in W x 10-1/4 in D x 81-5/16 in H, Domestic
  • Features
  • Includes
  • Wall thermostat - standard on all units assuring convenient operation
  • Standing pilot (low Btu) available as standard equipment, featuring 100% shut-off
  • Manual spark igniter - eliminate the need for matches or lighting tools (standing pilot units only)
  • Multi-port stainless steel burner - provide excellent flame characteristics and quiet ignition and extinction
  • Junction box - provide inside upper casing to facilitate installation
  • Reccessible - counterflow-up to 9-1/4 in direct vent counterflow-up to 10 in
  • 4 in top vent (oval)
  • 24 W stat control
Model 16VEA 16 in Vent Enclosure Kit, Model 24VEA 24 in Vent Enclosure Kit, Model 36VEA 36 in Vent Enclosure Kit, Model 406RR-A Flush Mount Rear Register Kit, Model 407RR-A Recess Mount Rear Register Kit, Model 4OVK 4 in BW Oval Vent Kit, Model 306SR-A Side Casing Grill Kit, Model 30SRB-A Side Outlet Kit with 10 in Boots, Model 31300-A Cabinet Trim Kit, Model 14PEK-A Plug Extension Kit, Model 3003P Remote Control Thermostat
