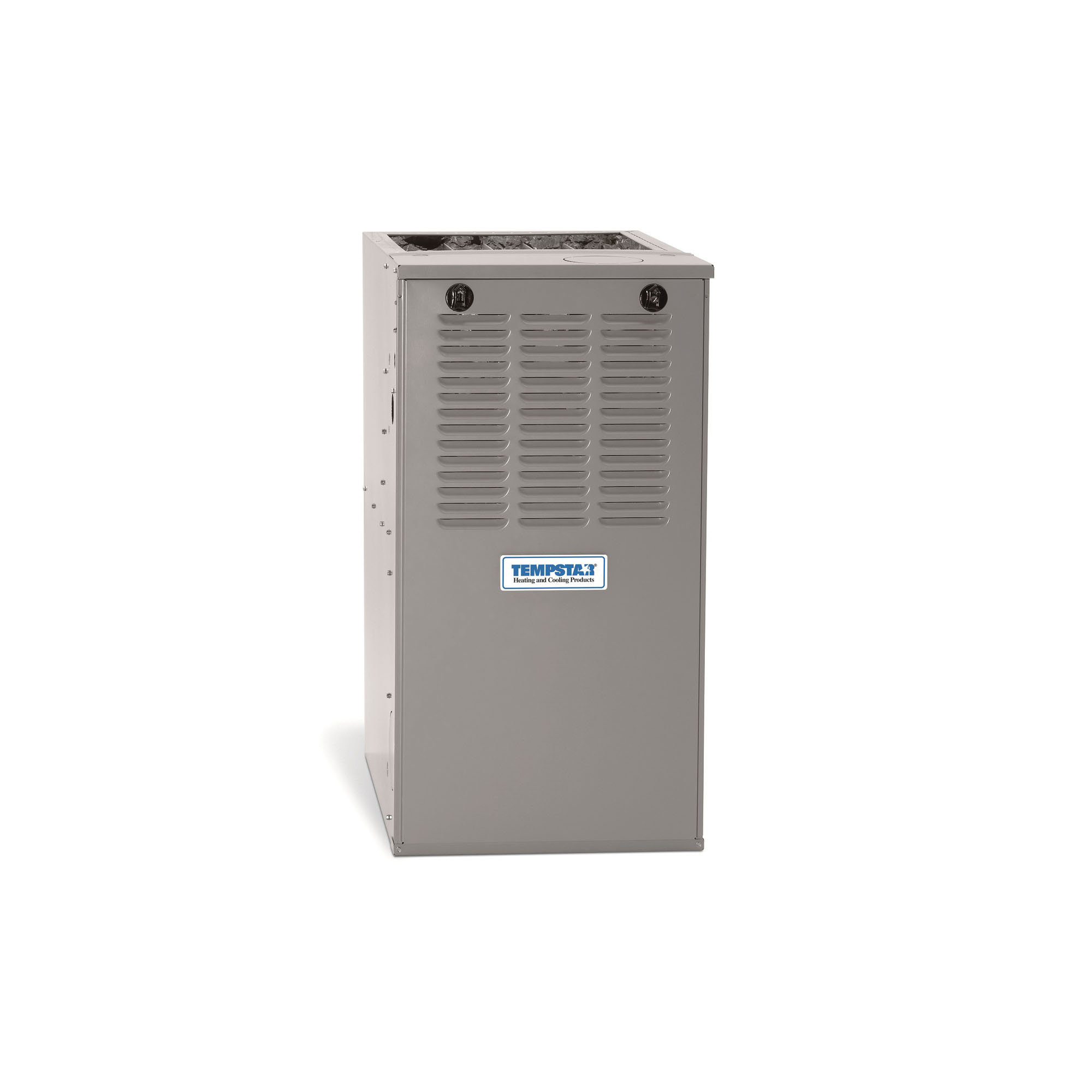

ICP® N8MXL1102120A Performance® N8MXL Low NOx Multi-Position Gas Furnace, 110000 BTU/hr Input, 90000 BTU/hr Output, 115 VAC, 80% AFUE, 2040 cfm, Domestic

ICPN8MXL1102120A MFG #: N8MXL1102120A
  • AFUE Rating: 80 %
  • Domestic / Import: Domestic
  • Flow Rate: 2040 cfm
  • Input Capacity: 110,000 BTU/hr
  • Output Capacity: 90000
  • Voltage Rating: 115V
  • Bottom Return Size: 20 x 25 x 3/4
  • Dimensions: 29 in W x 21 in D x 33.3 in H
  • Fuse Size: 20
  • Gas Type: Natural Gas
  • Ignition Type: Hot Surface
  • Manufacturer: International Comfort Products
  • Manufacturer #: N8MXL1102120A
  • Material: Steel
  • Motor HP: 1
  • Motor RPM: 1050
  • Motor Type: ECM Blower
  • Series: Performance® N8MXL
  • Side Return Size: 16 x 25 x 3/4
  • Type: Low NOx Multi-Position
This product is branded as Comfortmaker or Tempstar—you will receive the brand that is tied to your dealership. Parts are generic across all ICP brands and Carrier Corporation products. Relish in the warmth and energy savings of our efficient gas furnace when it's cold outside. It features a multi-speed blower motor and single-stage gas heating that delivers even levels of temperature control and quiet performance. The multi-speed blower motor also means you'll enjoy better summer dehumidification and a possible SEER boost from your cooling unit.

ICP® Gas Furnace, Low NOx Multi-Position, Series: Performance® N8MXL, 110000 BTU/hr Input, 90000 BTU/hr Output, 115 VAC, 80% AFUE, 2040 cfm, Natural Gas, 16 x 25 x 3/4 in Side Return, 20 x 25 x 3/4 in Bottom Return, ECM Blower Motor, 1 hp Motor, 1050 rpm Motor, 1/2 in NPT, Hot Surface Ignition, 20 A Fuse, Steel, 29 in W x 21 in D x 33.3 in H, Domestic
  • Features
  • Quiet performance
  • Multi-speed blower motor and 1-stage gas valve also provide improved levels of even temperature control and comfort
  • Dual fuel capable with a compatible heat pump and thermostat for energy-saving heating performance
  • Fully insulated cabinet keeps the heat moving to your ductwork
  • Air purifier and humidifier compatible for better home air quality
  • High-efficiency multi-speed ECM blower motor
  • 1-stage gas valve
  • RPJ® (Rigid Press Joint) primary heat exchanger
  • Reliable direct spark gas ignition
  • High temperature limit control prevents overheating
  • Solid pre-painted and steel insulated cabinet with tight fit door latch system
  • Soft mounted blower and inducer motor
  • Compatible thermostat: Heat/cool with humidity sensing
  • Multiposition: Upflow/downflow/horizontal (left/right) installation
  • Sales (Major) Revision Digit "A
