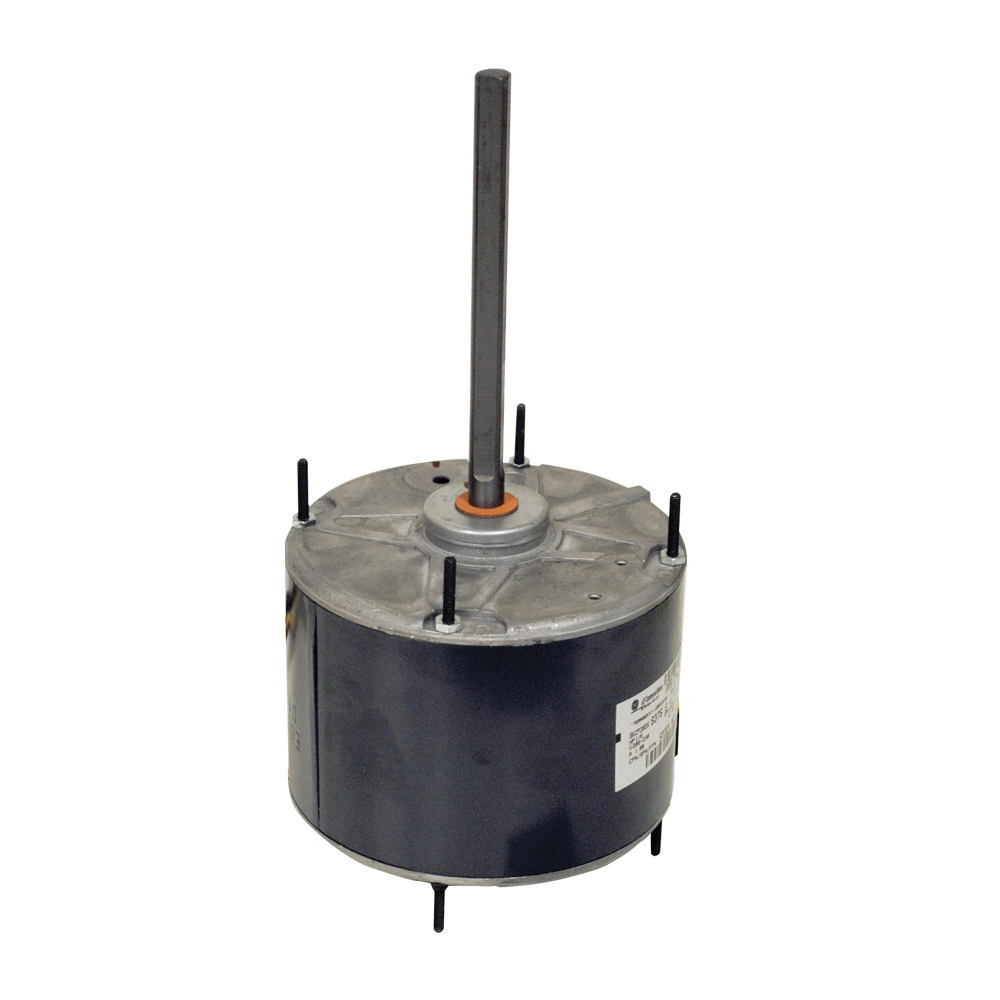

03459 34 Series Multi-Horsepower Condenser Fan Motor With Heat Shield

MOA03459 MFG #: 03459
  • Application Type: Condenser Fan Motors
  • Enclosure Type: Closed
  • Frame: NEMA 48
  • Frequency Rating: 60 Hz
  • Horsepower: 1/3 to 1/8 HP
  • Phase: 1
  • Speed: 825
  • Amperage Rating: 1.9 A Full Load
  • Bearing Type: Ball
  • Dimensions: 5-1/2 in Dia
  • Insulation Class: Class B
  • Manufacturer: Mars
  • Manufacturer #: 03459
  • Mounting Type: Shaft Down
  • Number of Speeds: 1
  • Rotation: CW/CCW
  • Series: 34 Series
  • Shaft Size: 0.5 in Dia x 12.19 in L
  • Temperature Rating: 70 degC
  • Type: Multi-Horsepower
Mars® SOS™ multi-horsepower condenser fan motors are ideal for truck stock. Three 1075 RPM models cover 208-230 volt applications from 1/6 to 1/2 HP. New Slim Stack™#03458, WIZARD and the new WIZARD 825 fit in many 1/3 HP installations that will not accept other manufacturer's motors. The 03458 is a single speed "wide-range" motor that will run at any fan load from 1/6 to 1/3 HP at a nominal 1075 RPM. Mars® #03459, the new WIZARD 825, will run at any fan load from 1/8 to 1/3 HP at a nominal 825 RPM. All SOS™ motors feature easy mounting in Rheem applications.

Genteq® by Mars® Condenser Fan Motor, Multi-Horsepower, Series: 34 Series, Application Type: Condenser Fan Motors, 1/3 to 1/8 hp, 208/230 VAC, 1.9 A Full Load, 60 Hz, 1 ph, 825 rpm, 1 Speed, Closed, NEMA 48 Frame, 0.5 in Dia x 12.19 in L Shaft, CW/CCW, Ball Bearing, Shaft Down Mount, 70 deg C, Insulation Class: Class B, 5-1/2 in Dia
  • Features
  • Rheem® mounting capability
  • Water slinger on shaft
  • Capacitor requirement noted on motor label
  • End shield drain holes with plug
  • 8 poles
  • Overload protection
  • Fan duty, continuous, air-over
  • Capacitor not included
  • 10 uF at 370 VAC capacitor required
