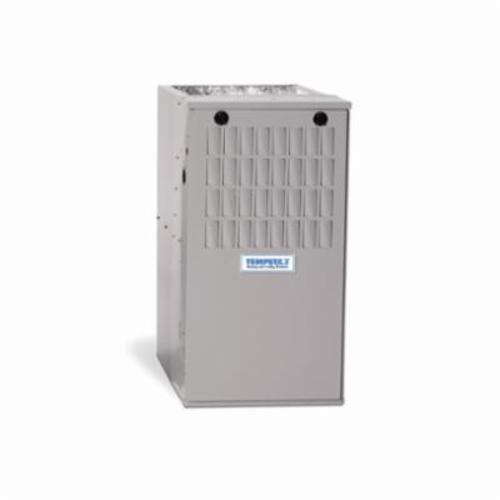

EXCLUSIVE OFFERSF8MTL0901714A 2-Stage Low NOx Deluxe Multi-Position Gas Furnace, 80% AFUE - Discontinued
TEMF8MTL0901714A
MFG #: F8MTL0901714A
- AFUE Rating: 80%
- Flow Rate: 1385 cfm
- Input Capacity: 88,000 BTU/hr
- Number of Stages: 2
- Output Capacity: 71,000 BTU/hr
- Type: Multi-Position
- Bottom Return Size: 16 x 25 x 3/4
- Dimensions: 29 in W x 17.5 in D x 33.3 in H
- Flue Size: 4 in Collar
- Fuel Type: Natural Gas
- Fuse Size: 15
- Ignition Type: Hot Surface
- Manufacturer: International Comfort Products
- Manufacturer #: F8MTL0901714A
- Motor HP: 1/3
- Motor RPM: 1075
- Motor Type: PSC Blower
- Series: F8MTL
- Side Return Size: 16 x 25 x 3/4
- Voltage Rating: 115V
- Weight: 127 lb
Create warm, soothing comfort in your home with our reliable and efficient gas furnace that won't break the bank. It features a fixed-speed blower motor and 2-stage gas valve that deliver even levels of temperature control and quiet performance.
TEMPSTAR® Gas Furnace, 2-Stage Low NOx Deluxe Multi-Position, Series: F8MTL, 88000 BTU/hr Input, 71000 BTU/hr Output, 115 VAC, 80% AFUE, 1385 cfm, Natural Gas, 4 in Collar Flue, 16 x 25 x 3/4 in Side Return, 16 x 25 x 3/4 in Bottom Return, PSC Blower Motor, 1/3 hp Motor, 1075 rpm Motor, 1/2 in NPT, Hot Surface Ignition, 15 A Fuse, Steel, 29 in W x 17.5 in D x 33.3 in H, Domestic
TEMPSTAR® Gas Furnace, 2-Stage Low NOx Deluxe Multi-Position, Series: F8MTL, 88000 BTU/hr Input, 71000 BTU/hr Output, 115 VAC, 80% AFUE, 1385 cfm, Natural Gas, 4 in Collar Flue, 16 x 25 x 3/4 in Side Return, 16 x 25 x 3/4 in Bottom Return, PSC Blower Motor, 1/3 hp Motor, 1075 rpm Motor, 1/2 in NPT, Hot Surface Ignition, 15 A Fuse, Steel, 29 in W x 17.5 in D x 33.3 in H, Domestic
- Features
- Quiet performance
- Fixed-speed blower motor and 2-stage gas valve provide even levels of temperature control and comfort
- Dual fuel capable with a compatible heat pump and thermostat for energy-saving heating performance
- Fully insulated cabinet keeps the heat moving to your ductwork
- Air purifier and humidifier compatible for better home air quality
- Efficient fixed-speed blower motor
- Energy saving 2-stage gas valve
- RPJ® (Rigid Press Joint) primary heat exchanger
- Reliable direct spark gas ignition
- High temperature limit control prevents overheating
- Solid pre-painted and steel insulated cabinet with tight fit door latch system
- Soft mounted blower and inducer motor
- Compatible thermostat: 2-stage heat/cool with humidity sensing
- Multiposition: Upflow/downflow/horizontal (left/right) installation
- Mainline tier
- Sales (Minor) Revision Digit "A
