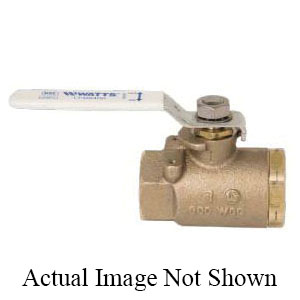

0125208 LFB6400, LFB6400-LL 3/8 2-Piece Ball Valve With Mounting Pads, Copper Silicon Alloy Body
WATLFB6400LLC
MFG #: 0125208
- Body Material: Copper Silicon Alloy
- Domestic / Import: Domestic
- End Style: FNPT
- Nominal Size: 3/8 in
- Port Type: Standard
- Softgoods Material: Glass Reinforced PTFE
- Actuator Type: Lever-Latch Lock Handle
- Ball Material: 316 Stainless Steel
- Flow Rate: 6.3 gpm
- Inlet to Outlet Length: 2-1/4
- Manufacturer: Watts Water Technologies
- Manufacturer #: 0125208
- Media: Liquid/Gas
- Orifice Size: 1/2
- Series: LFB6400
- Temperature Rating: 55 to 450 degF
- Top to Inlet Center: 1-3/4
- Type: 2-Piece
This 3/8 in 2-piece lead free standard port ball valve with actuator mounting pads and latch lock lever is used in commercial and industrial applications for a wide range of liquids and gases. It consists of Durafill® (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, stainless steel ball and adjustable stem packing to provide lasting service. This ball valve is rated for 150 WSP/600 WOG.
WATTS® Ball Valve, 2-Piece, Series: LFB6400, 3/8 in Nominal, FNPT, 600 psi WOG, 55 to 450 deg F, 6.3 gpm, Standard Port, Media: Liquid/Gas, 1/2 in Orifice, Lever-Latch Lock Handle Actuator, 316 Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Copper Silicon Alloy Body, 316 Stainless Steel/Carbon/Glass Reinforced PTFE Durafill® Trim, Glass Reinforced PTFE, Domestic
WATTS® Ball Valve, 2-Piece, Series: LFB6400, 3/8 in Nominal, FNPT, 600 psi WOG, 55 to 450 deg F, 6.3 gpm, Standard Port, Media: Liquid/Gas, 1/2 in Orifice, Lever-Latch Lock Handle Actuator, 316 Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Copper Silicon Alloy Body, 316 Stainless Steel/Carbon/Glass Reinforced PTFE Durafill® Trim, Glass Reinforced PTFE, Domestic
- Features
- Blowout proof pressure retaining stem
- Excellent for throttling and balancing applications of non-abrasive fluids where minimum flow is 20 to 100% of valve capacity
- High cycle life reinforced PTFE stem packing seal and thrust washer
- Vinyl insulator on heavy duty zinc plated carbon steel handles
- Lever latches and locks in open and closed positions
- Glass reinforced PTFE adjustable stem packing gland/thrust Washer
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 316 stainless steel stem shaft/carbon/glass reinforced PTFE Durafill® seat
