- Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.

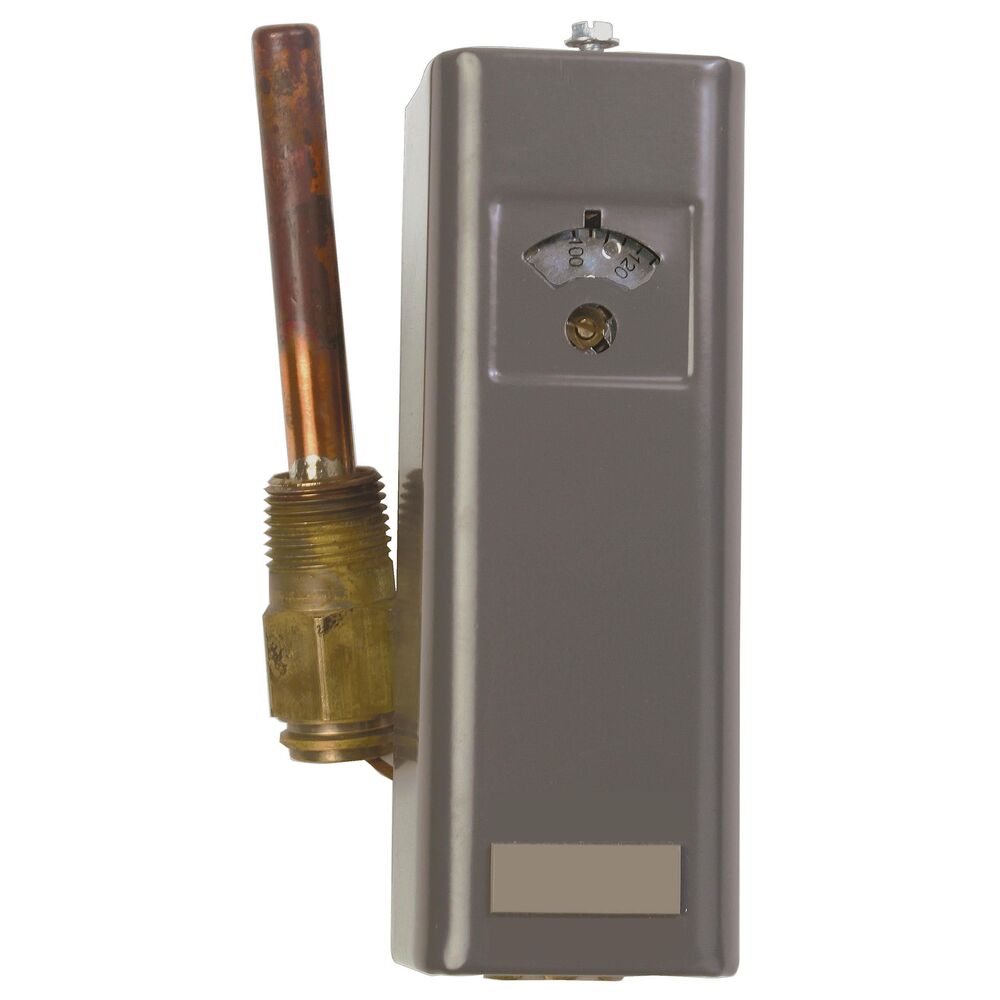

Resideo Aquastat® Aquastat Controller, High and Low limit, Series: L4006A, 100 to 240 deg F, 5 to 30 deg F Adjustable Differential, Horizontal Mount, 3/8 x 2-7/8 in Copper Bulb, SPST Switch, 2 in Width, 2-1/8 in D, 5-5/8 in Height, Import
- Totally enclosed Micro switch™ snap-acting switches operate on temperature rise to set point
- Visible control point scale and external adjustments screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct or well immersion of the sensing element
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
- TRADELINE® models include heat-conductive compound
- Electrical ratings: Millivolt: 0.25 A at 0.25 to 12 VDC, full load: 8 A at 120 VAC: 5.1 A at 240 VAC, locked rotor - 48 A at 120 VAC: 30.6 A at 240 VAC
- Contacts break on temperature rise
- Differential5 to 30 deg F AdjustableDomestic / ImportImportMounting TypeHorizontalTemperature Rating100 to 240 deg FBulb Size3/8 x 2-7/8 in CopperDepth2-1/8 inHeight5-5/8 inManufacturerResideo TechnologiesManufacturer #L4006A2007/USeriesL4006ASwitch TypeSPSTTypeHigh and Low limitWidth2 in
