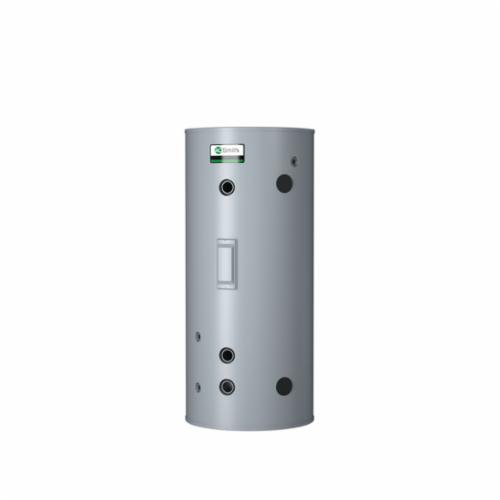

A.O. Smith® 100123717 TJV-200A Insulated Storage Tank, 175 gal Tank, 36 in Dia

AOSTJV200A MFG #: 100123717
A.O. Smith® 100123717 TJV-200A Insulated Storage Tank, 175 gal Tank, 36 in Dia
  • Diameter: 36 in
  • Manufacturer: A.O. Smith
  • Manufacturer #: 100123717
  • Overall Length: 83 in
  • Pressure Rating: 125 psi
  • Series: TJV-200A
  • Tank Capacity: 175 gal
  • Tank Type: Glass Lined
  • Type: Insulated
Large volume tanks are designed for storing potable water. Fitting locations of these custom-line tanks match the needs of normal installations plus those for the A.O. Smith Cer-Temp® 80 and Shure-Temp™ systems.

Looking for model-specific repair or replacement parts? Enter the unit’s serial number into the A.O. Smith Parts Finder.

A.O Smith® Storage Tank, Insulated, Series: TJV-200A, 175 gal Tank, Glass Lined Tank, 36 in Dia, 83 in Overall Length, 125 psi
  • Features
  • Heavy gauge steel with high quality powder coat paint provides additional insulating qualities for greater energy savings
  • Each lining and coating has particular capabilities and limitations
  • Glasslined: These are normally stocked tanks for water storage up to 180 deg F, with glass lining to prevent corrosion and addition of rust to water
  • Cement: A special formulation of cement provides excellent corrosion protection
  • Epoxy: The application of specially formulated epoxy makes this lining suitable for cold or hot water storage
  • Insulation: Entire tank is surrounded with high density fiber glass insulation to reduce costly heat loss; non-sagging and vermin-proof
  • Standard Sizes: from 140 to 1000 gal - A. O. Smith stocks vertical factory jacketed and insulated tanks from 140 gal up to 1000 gal for fast delivery and retrofit applications
  • ASME code construction: All tanks are constructed to the requirements of the ASME
  • Custom-line factory jacketed and insulated storage tank
