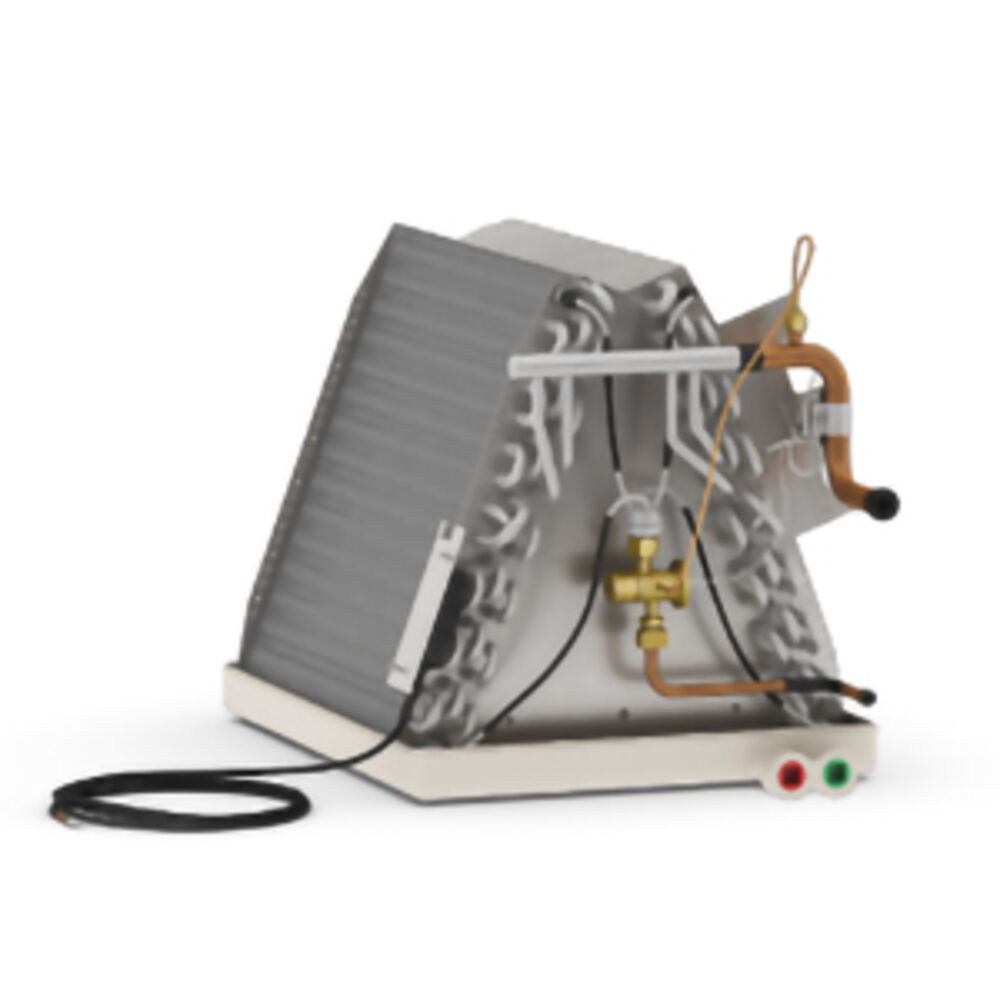

- Our evaporator coils are specially designed and sized to match Armstrong Air heating and cooling products. Removable cabinets and a single drain pan offer quick access and easy clean up for lifelong performance efficiencies. Plus, when you add a matching coil, you get a system that runs at peak performance while maximizing efficiency.
- Optimized to deliver the right amount of refrigerant, providing high efficiency and energy savings daily.
- Armstrong Air’s proprietary heat transfer system. The coil features rifled tubing to enhance refrigerant flow while lanced coil fins increase surface contact between metal and air. They combine for maximum heat transfer and efficiency.
- Drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce.
- Copper refrigerant sweat connections on both liquid and suction lines for easy brazing
- Ripple-edged aluminum fins
- Copper refrigerant sweat connections on both liquid and suction lines for easy brazing
- Lines extend outside of the cabinet for ease of connection
- Enclosure TypeUncasedFlow Rate400 to 1200 cfmNominal Capacity2 tonRefrigerant TypeR-454BSeries7EU-71Air Flow TypeUpflowDimensions15-1/2 in W x 16-3/8 in H x 21 in DLiquid Line Size3/8 inManufacturerAllied Air EnterprisesManufacturer #25X80Metering DeviceTXVSub-brandOmniguardSuction Line Size3/4 inTubing MaterialAluminumWeight24 lb
