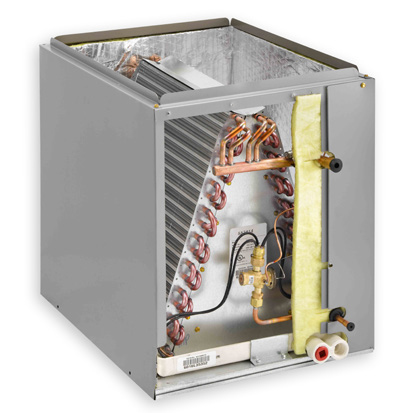

Allied™ Omniguard™ EC4X24AG EC4X Evaporator Coil, 2 ton Nominal, Upflow/Downflow Air Flow, Cased Enclosure, R-410A Refrigerant

AAEEC4X24AG MFG #: 1.911432
  • Enclosure Type: Cased
  • Nominal Capacity: 2 ton
  • Refrigerant Type: R-410A
  • Series: EC4X
  • Air Flow Type: Upflow/Downflow
  • Color: Platinum Gray
  • Dimensions: 14-1/2 in W x 21-1/2 in D
  • Liquid Line Size: 3/8 in
  • Manufacturer: Allied Air Enterprises
  • Manufacturer #: 1.911432
  • Suction Line Size: 3/4 in
Armstrong Air® Evaporator Coil, Series: EC4X, 2 ton Nominal Capacity, Upflow/Downflow, R-410A, 3/8 in Liquid Line, 3/4 in Suction Line, Cased, Platinum Gray, 14-1/2 in W x 21-1/2 in D
  • Features
  • HP TXV expansion device with check valve
  • Matched system - Our evaporator coils are specially designed and sized to match Armstrong Air® heating and cooling products, removable cabinets and a single drain pan offer quick access and easy clean up for lifelong performance efficiencies, plus, when you add a matching coil, you get a system that runs at peak performance while maximizing efficiency
  • Fully insulated cabinet - wall-to-wall insulation ensures less than 2% air leakage increasing efficiency and energy savings
  • Microban® protection - drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
  • MHT™ Technology - Armstrong Air® coils feature rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air for maximum heat transfer and efficiency
