ALLIED™

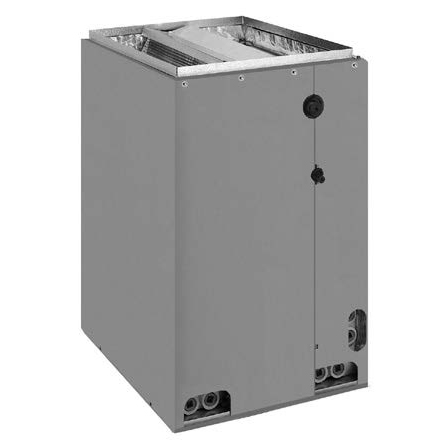

1.912104 EM1P-1 Evaporator Coil, Cased Enclosure

AAEEM1P43BG1 MFG #: 1.912104
  • Enclosure Type: Cased
  • Nominal Capacity: 3.5 to 4 ton
  • Refrigerant Type: R-22/R-410A
  • Series: EM1P-1
  • Air Flow Type: Multi-Position (Upflow/Horizontal)
  • Color: Platinum Gray
  • Dimensions: 27-1/2 in H x 17-1/2 in W x 21 in D
  • Liquid Line Size: 3/8 in
  • Manufacturer: Allied Air Enterprises
  • Manufacturer #: 1.912104
  • Suction Line Size: 7/8 in
Allied Air Enterprises Armstrong Air® Evaporator Coil, Series: EM1P-1, 3.5 to 4 ton Nominal Capacity, Multi-Position (Upflow/Horizontal) Air Flow Type, R-22/R-410A, 3/8 in Liquid Line, 7/8 in Suction Line, Cased Enclosure, Platinum Gray, 27-1/2 in H x 17-1/2 in W x 21 in D
  • Features
  • Upflow/horizontal (EM1P) for application flexibility
  • Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Interlocking door assemblies and snug line seal grommets to minimize air leakage
  • External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
  • Foil-face insulation for easy cleaning
  • Two dual drain connections on front of coil for install flexibility of drain lines around furnace vent and utility connections
  • Tubing located at door split for easy coil service or coil cleaning
  • All drain pans are compatible with UV lights
  • Piston expansion device
  • Side drain pan built-in for easy horizontal coil installations EM1P only
  • 0.076 in orifice
  • Fits 17-1/2 in W matching gas furnace cabinet
