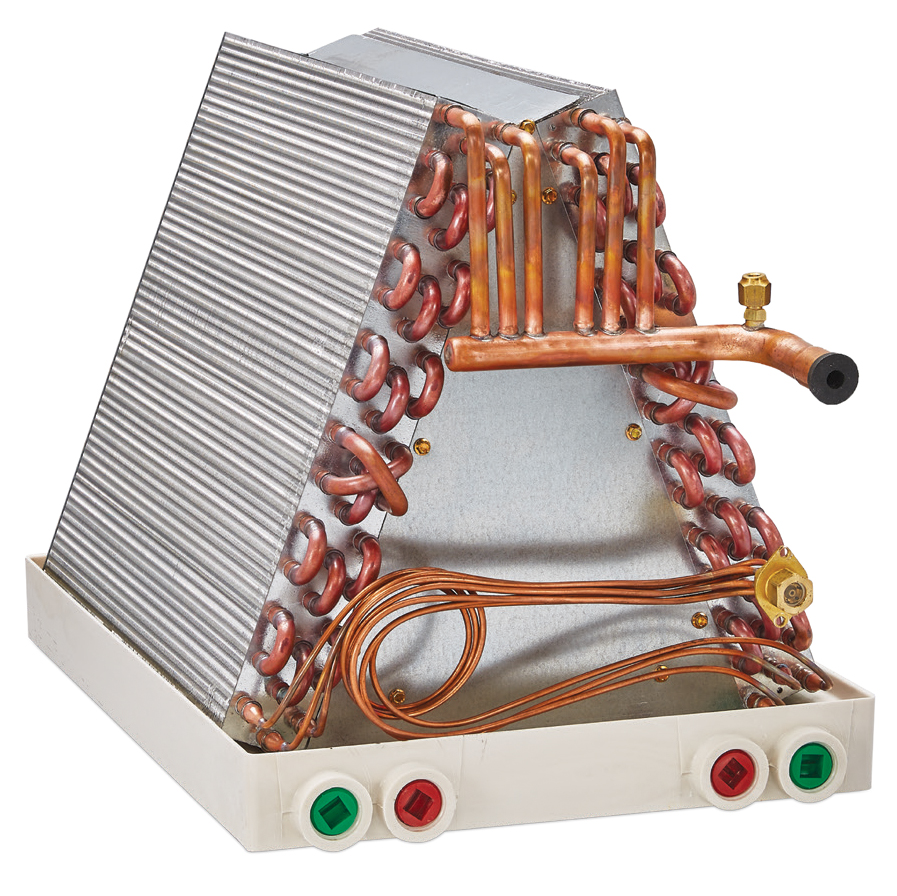

HE37936A140A0000AP 3 Ton 14 W Evaporator Coil, Uncased, A Coil, Right-hand Enclosure

ADPHE37936A140A0000AP MFG #: HE37936A140A0000AP
  • Enclosure Type: Right-Hand Uncased
  • Nominal Capacity: 36 MBTU/hr
  • Series: HE
  • Type: Type A
  • Dimensions: 14 in W x 19-1/2 in D x 13 in H
  • Manufacturer: Advanced Distributor Products
  • Manufacturer #: HE37936A140A0000AP
  • Slab: Copper
HE Series multi-position coils are the perfect solution for low height applications. These coils offer perfect furnace fit, space saving opportunities, and are available in multiple heights and widths. All Healthy Solutions™ coils feature Microban® antimicrobial in the drain pan, providing added protection against mold and mildew.

HE37936A140A0000AP 3T 14W UNCASED A COIL
  • Features
  • Improved air quality
  • Low height
  • Built-in flanges with rounded corners
  • Front panel with only four screw removals
  • TXV with all threaded connections
  • HydroTEC™ drain pan with dual drain connections
  • 1% or less air leakage
  • Highly customizable coils
  • Refrigerant connections and exposed drain connections on the left side as indicated
