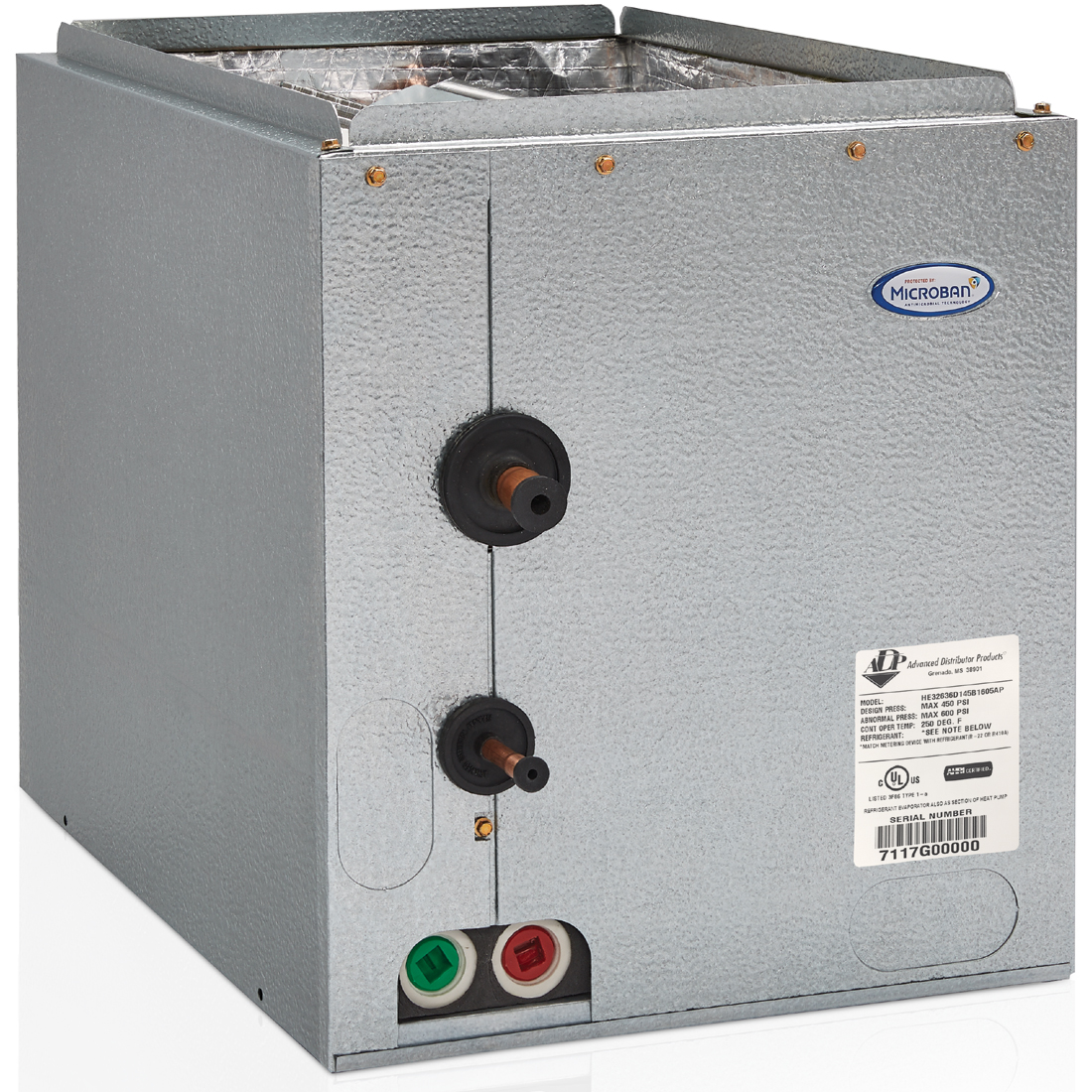

HG22924D175B1605AP 2 Ton 17.5W Evaporator Coil, Aluminum Slab, Cased TXV, A Coil, Left-hand Enclosure

ADPHG22924D175B1605AP MFG #: HG22924D175B1605AP
  • Enclosure Type: Left-Hand Cased
  • Nominal Capacity: 24 MBTU/hr
  • Refrigerant Type: R-410A
  • SEER Rating: 13
  • Series: HG
  • Type: Type A
  • Air Flow Type: Vertical Upflow/Downflow
  • Dimensions: 17-1/2 in W x 21 in D x 16-1/2 in H
  • Manufacturer: Advanced Distributor Products
  • Manufacturer #: HG22924D175B1605AP
  • Metering Device: Non-Bleed A/C TXV
  • Slab: Aluminum
  • Suction Line Size: 3/4 in
  • Tubing Material: Copper
HE Series multi-position coils are the perfect solution for low height applications. These coils offer perfect furnace fit, space saving opportunities, and are available in multiple heights and widths. All Healthy Solutions™ coils feature Microban® antimicrobial in the drain pan, providing added protection against mold and mildew.

HG22924D175B1605AP 2T 17.5W AL CASED TXV A COIL
  • Features
  • Improved air quality
  • Low height
  • Built-in flanges with rounded corners
  • Front panel with only four screw removals
  • TXV with all threaded connections
  • HydroTEC™ drain pan with dual drain connections
  • 1% or less air leakage
  • Highly customizable coils
  • Refrigerant connections and exposed drain connections on the left side as indicated
