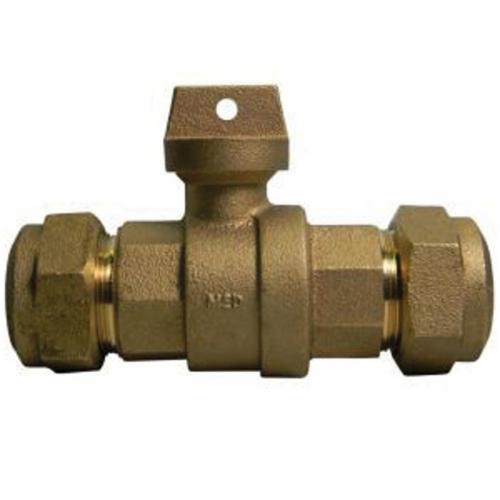

A.Y. McDonald 5182-150 Ball Curb Stop, 1-1/4 x 1 x 1-1/4", Q CTS Compression, Brass Body, EPDM Softgoods

AYM76100QHGH MFG #: 5182-150
  • Body Material: BRASS
  • End Style: Q CTS Compression
  • Nominal Size: 1-1/4 x 1 x 1-1/4 in
  • Softgoods Material: EPDM
  • Manufacturer: A.Y. McDonald
  • Manufacturer #: 5182-150
  • Media: Water
  • Pressure Rating: 300 psi
  • Trim Material: EPDM Port Seal

Please call for availability and specification confirmation.

A.Y. McDonald® Ball Valve Curb Stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. Mc Donald Ball Curb Stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis Curb Box Threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.

A.Y. McDonald Ball Curb Stop, 1-1/4 x 1 x 1-1/4 in Nominal, Q CTS Compression, 300 psi, Media: Water, Brass Ball, 2.65 in Top to Inlet Center, Brass Body, EPDM Port Seal Trim, EPDM Softgoods, 1 in Dia
  • Features
  • End piece joint sealed with an EPDM O-Ring and thread locker
  • Insert stiffeners are required on all flexible plastic connections
  • PTFE coated brass ball
  • EPDM O-ring
