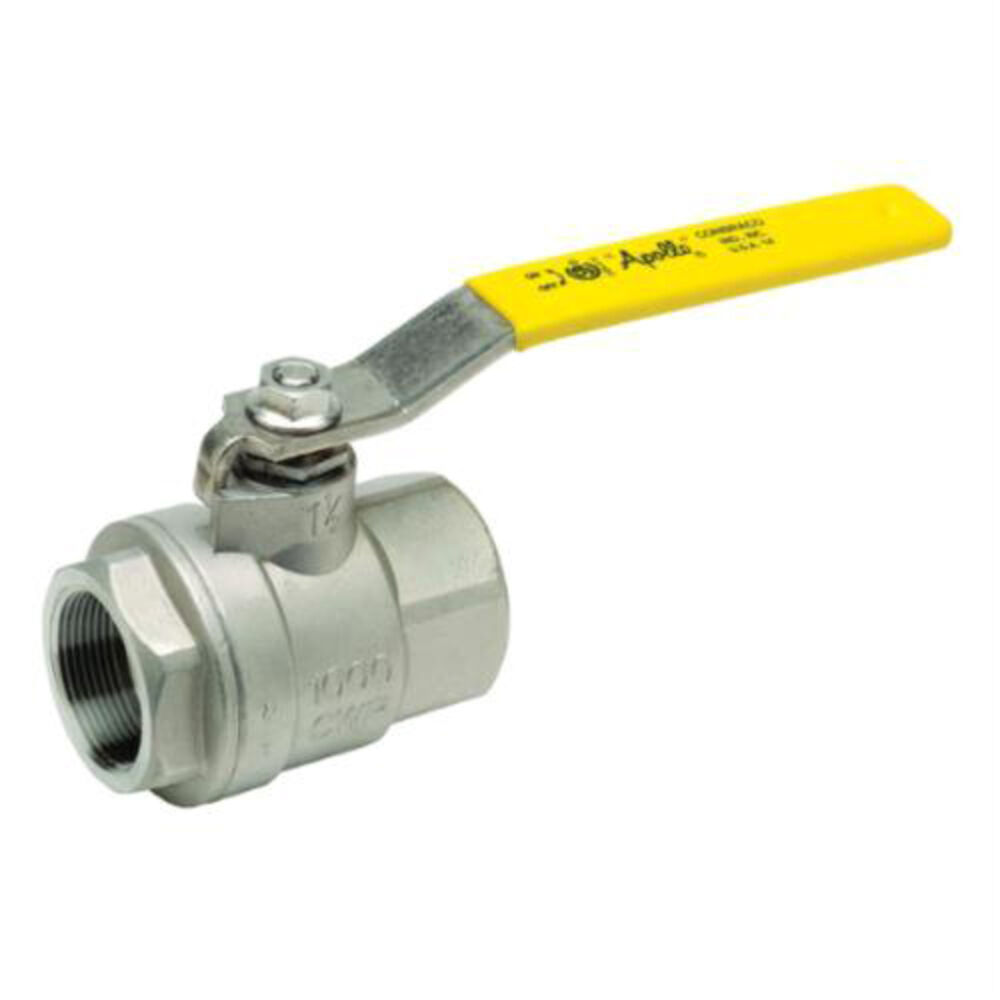

Apollo™ 76F-105-27-A 76F-100-A 2-Piece Ball Valve, 1 in, FNPT, Stainless Steel Body, Full Port, RPTFE/MPTFE Softgoods, Domestic

Item #CON76F10527A

MFG #76F-105-27-A

UPC670750614712

: Apollo™ Ball Valve, 2-Piece, Series: 76F-100-A, 1 in Nominal, FNPT, 1000 psig CWP, Full Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 2.27 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE Softgoods, Domestic

: 27: Stainless steel latch-lock lever and nut

Investment cast components

Reinforced seats

Blow-out proof stem

Vacuum service to 29 in Hg

150 psig saturated steam

Lead free: the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average

Complies with Federal Public Law 111-380, ANSI 3rd party approved and listed

Cold non-shock

RPTFE seal and MPTFE stem packing
: Adjustable Packing Gland

: Body MaterialStainless Steel
Domestic / ImportDomestic
End StyleFNPT
Nominal Size1 in
Port TypeFull
Softgoods MaterialRPTFE/MPTFE
Actuator TypeLatch-Lock Lever
Ball Material316 Stainless Steel
Inlet to Outlet Length3.34
ManufacturerApollo Conbraco
Manufacturer #76F-105-27-A
Series76F-100-A
Top to Inlet Center2.27
Trim Material316 Stainless Steel Stem and RPTFE Seat
Type2-Piece
