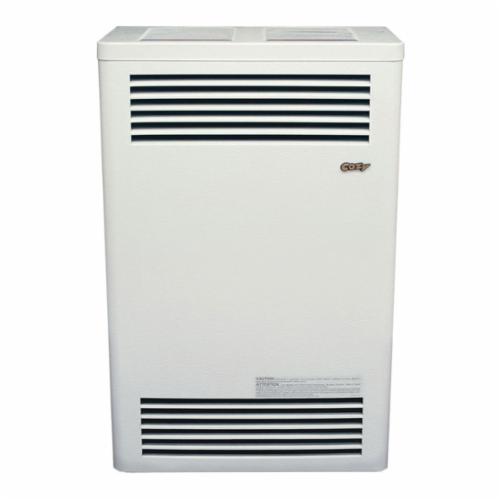

COZY CDV155D Natural Gas Direct-Vent Wall Furnace,15000 BTU/hr Input, Domestic

COZCDV155NG MFG #: CDV155D
  • Input Capacity: 15,000 BTU/hr
  • Connection Size: 1/2 in
  • Dimensions: 18 in W x 9-3/4 in D x 29-3/4 in H
  • Gas Type: Natural Gas
  • Ignition Type: Ignitor
  • Manufacturer: Cozy Heating System
  • Manufacturer #: CDV155D
  • Supply Opening Size: 9
  • Type: Direct-Vent
Cozy's Direct-Vent Wall Furnace mounts on an outside wall and occupies minimal room space. The continuous seam-welded combustion chamber draws air from the outside and exhausts through a concentric vent system, which keeps the interior air warm and fresh. The louvered cabinet design maximizes airflow, providing uniform temperatures from floor to ceiling. A telescoping vent assembly is included and fits a standard 5 to 9 in wall thickness, eliminating the need for expensive and difficult-to-install vent pipe systems. A wall-mounted thermostat comes standard, or choose the optional built-in bulb stat kit (BBSK). Both provide precise temperature control, even if the electrical power fails. All controls include a 100 percent safety pilot and pressure regulator for safe, efficient operation.

CozY Wall Furnace, Direct-Vent, 15000 BTU/hr Input, 10000 BTU/hr Output, Natural Gas, 9 in Supply Opening Size, 1/2 in, Ignitor Ignition, Eggshell White, 18 in W x 9-3/4 in D x 29-3/4 in H, Domestic
  • Features
  • Includes
  • Continuous seam welded combustion chamber - constructed of heavy 18 ga steel maximizes heat transfer
  • Inner jacket - suspended with U type interlocking bracket and is easily removed for cleaning
  • 430 stainless steel, ported burner - provide quiet ignition/extinction and excellent flame characteristics for natural and LP gas
  • 100% safety pilot/built-in pressure regulator - Completely stops the flow of gas in the event pilot flame is extinguished
  • Low Btu pilot - Durably constructed of stainless steel and provide maximum efficiency during standby
  • Wall thermostat - standard on all model and provide maximum comfort and ease of operation
  • Matchless spark ignition - eliminate the need for matches or lighting tools
  • M-Volt/wall stat control
  • 9 in vent wall opening
  • Equipped with dexen 6003 mV control valve, includes standard vent assembly for 9 in max wall thickness, wall thermostat, 20 in wire and insulated staples
Model DVB3 Blower, Model VK1525/9-15-B Vent Kit, Model VK1525/15-24-B Vent Kit, Model VK33/9-15-B Vent Kit, Model VK33/9-15-B Vent Kit, Model BBSK CDV Bulb Stat Kit, Model 3003P Remote Control Thermostat
