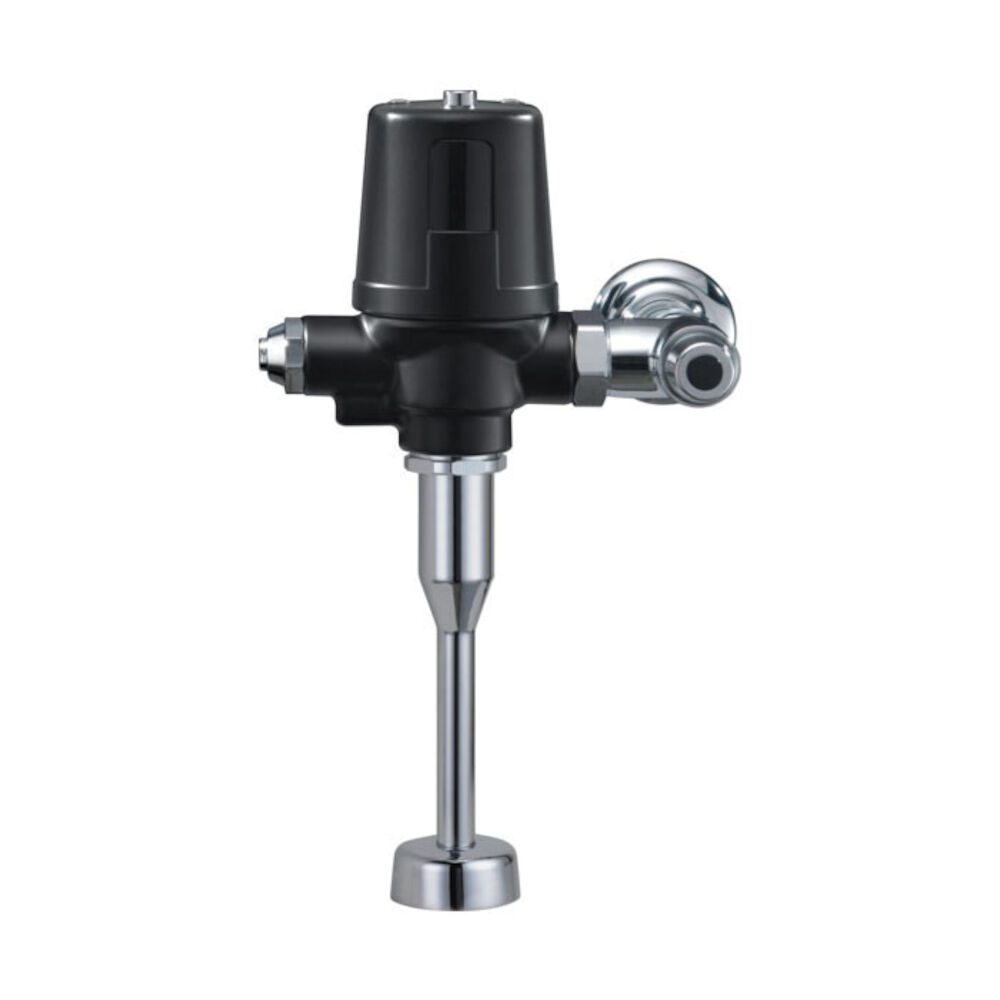

- DELTA® Electronic Flush Valve, Exposed Manual Mechanical Override, Series: 81TBT, TECK® Collection, Urinal Fixture, 6 VDC AA Alkaline Battery Power Source, 1.5 gpm Flush, 1 in FNPT Inlet, 3/4 in Spud Coupling, Diaphragm Valve Design, Connection Location: Top, 8 to 24 in Sensor, 60 psi Pressure, Matte Black
- Urinal, 13" height
- Battery operated, batteries included
- Electronic exposed flush valve
- Hands-free operation
- Body mounted sensor
- Vacuum breaker
- 3/4" copper sweat inlet
- Low battery flashing light (5000 flushes remaining) with battery strength indicator
- Infrared sensor range adjustment of 8 to 24 in, factory set at 16 in (+/-2 in)
- Set-up sensor range adjustment indicator lights
- 6 VDC input, 6 s arming delay
- Electronic operated non-hold-open metal manual override button with 5 s lockout
- Quiet action, TECK® exposed diaphragm flush valve
- Chloramine resistant diaphragm
- Brass diaphragm retainer
- Renewable seat
- 1 in FNPT or 3/4 in C inlet adaptor, angle check stop with protecting cap
- Matte black with chrome finish
- External water conserving flush adjustment - factory set to 1.9 L, field adjustable from 0.47 to 3.78 L
- Hands-free operation
- CollectionTeckFinish / ColorMatte BlackFlush Rate1.5 gpmInlet Size1 in FNPTPower Source6 VDC AA Alkaline BatteryPressure Rating60 psiSpud Coupling3/4 inConnection LocationTOPFixture TypeUrinalManufacturerDelta Faucet CompanyManufacturer #81T231BTA-MMO-BLSensor Range8 to 24 inSeries81TBT / 81THWTypeExposed Manual Mechanical OverrideValve DesignDiaphragm
