- The Delta Commercial offering goes beyond providing exceptional Commercial-grade performance with products that reflect the personality of the individual institution. Delta believes there is a better way to live with water and has developed smart solutions that meet the unique requirements presented by each Commercial environment. Providing individuals with a better way to experience water, while standing up to prolonged, rigorous use. And, all Delta Commercial products are backed by the industry's best 5-year limited warranty.

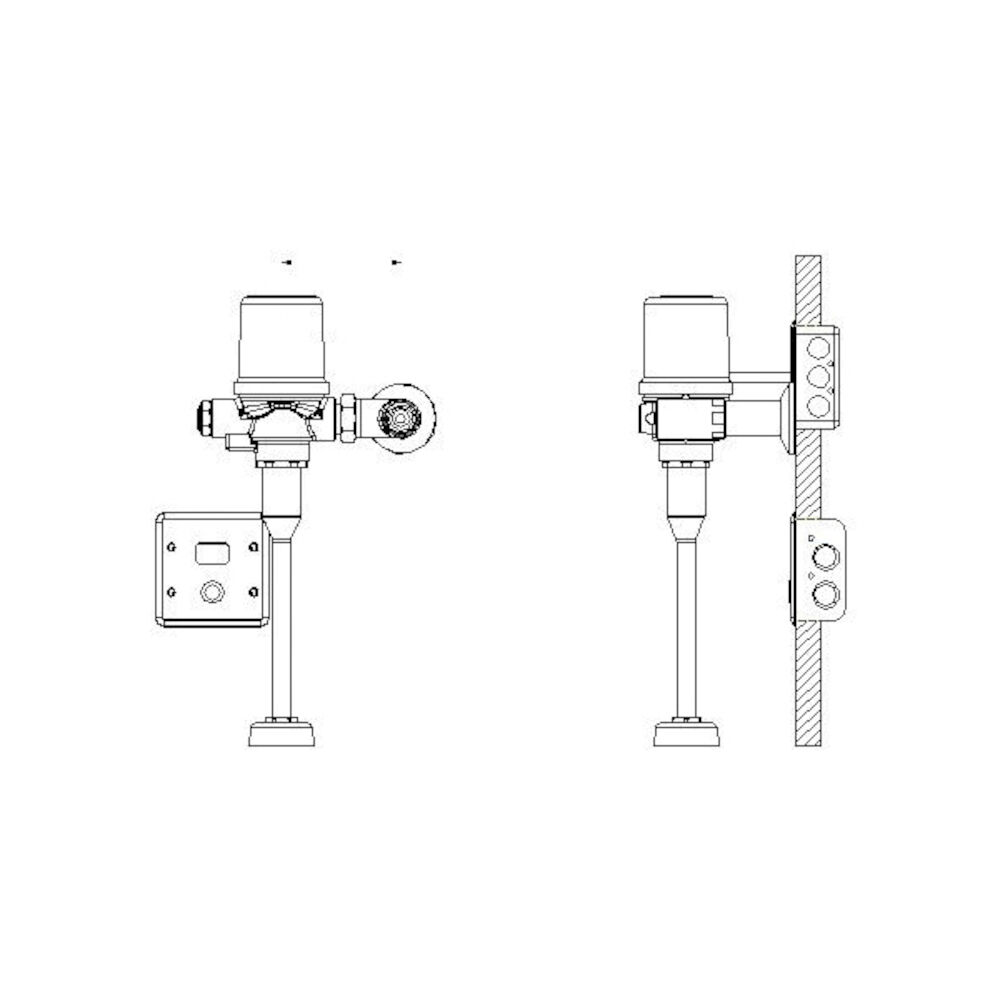

DELTA® Teck® Electronic Flush Valve, Exposed, Series: 81T, Urinal Fixture, Battery, 8 gpm Flush, 3/4 in Spud Coupling, 13 in Rough-In, Diaphragm, Connection Location: Top, 20 in Sensor, 25 psi, Metal, Chrome Plated, Import
- Polished chrome-plated vandal resistant metal cover with 4 in. wallmount sensor
- Right or left-hand supply installation
- ADA compliant, automatic operation hardwire powered H2Optics technology infrared sensor
- Infrared sensor range adjustment of 305mm - 711mm (12 in.- 28 in.), in 4 in. increments, factory set at 508 mm (20 in.) [± 50.8 mm (2 in.)]
- Hardwire adaptor
- Vandal resistant copper tube conduit
- Adjustable 24 hour courtesy flush factory set to off
- Quiet action, Teck® exposed diaphragm flush valve
- Chloramine resistant diaphragm
- Brass diaphragm retainer
- Renewable seat
- Adjustable 24 hour courtesy flush factory set to off
- 1 in FIP/copper sweat inlet adaptor, angle check stop with protecting cap
- Adjustable 4-3/4 in +/- 7/16 in inlet/valve outlet centers
- Vacuum breaker
- Cover tube, stainless steel wall flange, spud flange, concealed spud nut and 292 mm (11-1/2 in) outlet tube
- External water conserving flush adjustment: Factory set to 0.5 gal, Field adjustable from 1/8 to 1 gal flush
- 24 VAC
- 25 psi Min
- Domestic / ImportImportFinish / ColorChromeFlush Rate8 gpfPower SourceBatteryPressure Rating25 psiSpud Coupling3/4 inConnection LocationTOPFixture TypeUrinalManufacturerDelta Faucet CompanyManufacturer #81T231-WMSHWAMaterialMetalRough-In Size13 inSensor Range20 inSeries81T WMSTypeExposedValve DesignDiaphragm
