Daikin®

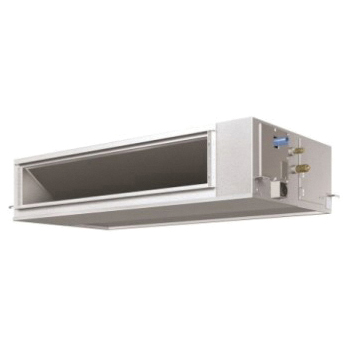

Daikin® SkyAir FBQ42PVJU 1-Zone Indoor Heat Pump, 47000 BTU/hr Heating, 42000 BTU/hr Cooling, 208/230 VAC, 1 ph, 60 Hz, 16 SEER, 10.2 EER, R-410A Refrigerant

DAIFBQ42PVJU MFG #: FBQ42PVJU
Daikin® SkyAir FBQ42PVJU 1-Zone Indoor Heat Pump, 47000 BTU/hr Heating, 42000 BTU/hr Cooling, 208/230 VAC, 1 ph, 60 Hz, 16 SEER, 10.2 EER, R-410A Refrigerant
  • Cooling Capacity: 42,000 Btu/hr
  • Domestic / Import: Import
  • Nominal Capacity: 42,000 BTU/hr
  • Power Source: 208/230 VAC, 1 ph, 60 Hz
  • SEER Rating: 16
  • Compressor Type: Inverter Technology
  • Dimensions: 55-1/8 in W x 27-9/16 in D x 11-13/16 in H
  • Discharge Line Size: 3/8 in
  • EER Rating: 10.2
  • Flow Rate: 988 to 1377 cfm
  • Fuse Size: 15 A
  • HSPF Rating: 8.8
  • Manufacturer: Daikin
  • Manufacturer #: FBQ42PVJU
  • Material: Galvanized Steel
  • Maximum Piping Length: 230 ft
  • Mounting Type: Concealed Ceiling
  • Refrigerant Type: R-410A
  • Sound Level: 44 dBA
  • Suction Line Size: 5/8 in
  • temHeatingCapacity: 47,000 BTU/hr
  • Temperature Rating: 23 to 115 deg F Cooling/0 to 77 deg F Heating
  • Type: 1-Zone
Daikin®'s Heat Pump SkyAir system provides comfortable heating and cooling in a one-to-one application. With the ability to combine a quiet indoor unit with a variety of sleek indoor units such as the easily installed wall mounted unit, the concealed, built-in DC Duct unit, the comfort customizing roundflow ceiling mounted cassette, or the slim, silent operating ceiling suspended unit, Daikin provides the ultimate duct-free solution for large residential or light commercial projects.

Daikin® SkyAir Indoor Heat Pump, 1-Zone, 42000 BTU/hr Nominal, 47000 BTU/hr Heating, 42000 BTU/hr Cooling, 208/230 VAC, 1 ph, 60 Hz Power Source, 988 to 1377 cfm, 10.2 EER, 16 SEER, 8.8 HSPF, Inverter Technology Compressor, R-410A Refrigerant, 5/8 in Suction Line, 3/8 in Discharge Line, 15 A Fuse, 23 to 115 deg F Cooling/0 to 77 deg F Heating, 44 dBA Sound Level, 230 ft Maximum Piping Length, Concealed Ceiling Mounting, Galvanized Steel, 55-1/8 in W x 27-9/16 in D x 11-13/16 in H Dimensions, Import
  • Features
  • Inverter technology delivers precise temperature control and superior energy efficiency
  • Max piping length up to 230 ft allows flexible placement of indoor unit
  • Maximum piping height separation up to 164 ft
  • Quiet operation makes it ideal for many light commercial applications
  • Fully optimized for R-410A refrigerant, recognized as the future industry standard
  • Self-diagnostic capabilities provide added reliability
