- Cooling Capacity: 40,500 Btu/hr
- Nominal Capacity: 3.5 ton
- Power Source: 60 Hz
- SEER Rating: 13.8 SEER
- Color: White
- Compressor Type: Inverter
- COP Rating: 2.69
- Dimensions: 62-5/8 in W x 26-3/4 in D x 7-11/16 in H
- Discharge Line Size: 3/8 in
- EER Rating: 9.5 EER
- Flow Rate: 700 to 850 cfm
- Fuse Size: 15
- HSPF Rating: 7.7
- Manufacturer: Daikin
- Manufacturer #: FHQ42MVJU
- Maximum Piping Length: 230
- Mounting Type: Ceiling Suspended
- Phase: 1
- Refrigerant Type: R-410A
- Series: FHQ
- Sound Level: 47 dBA
- Suction Line Size: 5/8 in
- temHeatingCapacity: 39,500 BTU/hr
- Voltage Rating: 208 / 230 VAC
- Weight: 90 lb

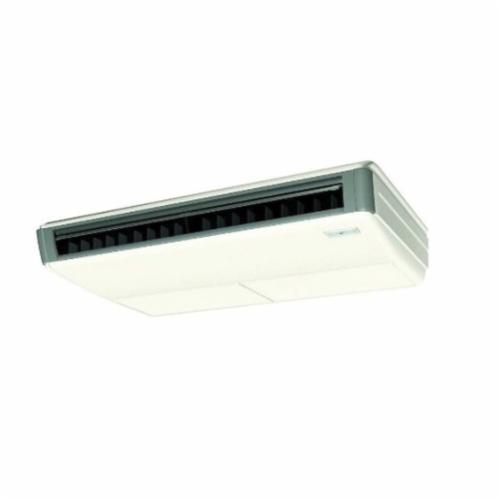

Daikin®'s Heat Pump SkyAir system provides comfortable heating and cooling in a one-to-one application. With the ability to combine a quiet indoor unit with a variety of sleek indoor units such as the easily installed wall mounted unit, the concealed, built-in DC Duct unit, the comfort customizing roundflow ceiling mounted cassette, or the slim, silent operating ceiling suspended unit, Daikin provides the ultimate duct-free solution for large residential or light commercial projects.
Daikin® Indoor Heat Pump, Series: FHQ, 3.5 ton Nominal Capacity, 39500 Btu/hr Heating, 40500 Btu/hr Cooling, 208 to 230 VAC 60 Hz 1 ph, 700 to 850 cfm, 9.5 EER, 13.8 SEER, HSPF: 7.7, 2.69 COP Rating, Inverter Compressor, R-410A, 5/8 in Suction Line, 3/8 in Discharge Line, 15 A Fuse, 23 to 115 deg F Cooling/0 to 77 deg F Heating, 47 dBA, 230 ft Maximum Piping Length, Ceiling Suspended Mount, Galvanized Steel, White, 62-5/8 in W x 26-3/4 in D x 7-11/16 in H
Daikin® Indoor Heat Pump, Series: FHQ, 3.5 ton Nominal Capacity, 39500 Btu/hr Heating, 40500 Btu/hr Cooling, 208 to 230 VAC 60 Hz 1 ph, 700 to 850 cfm, 9.5 EER, 13.8 SEER, HSPF: 7.7, 2.69 COP Rating, Inverter Compressor, R-410A, 5/8 in Suction Line, 3/8 in Discharge Line, 15 A Fuse, 23 to 115 deg F Cooling/0 to 77 deg F Heating, 47 dBA, 230 ft Maximum Piping Length, Ceiling Suspended Mount, Galvanized Steel, White, 62-5/8 in W x 26-3/4 in D x 7-11/16 in H
- Features
- Inverter technology delivers precise temperature control and superior energy efficiency
- Maximum piping length up to 230 ft allows flexible placement of indoor unit
- Maximum piping height separation up to 164 ft
- Quiet operation makes it ideal for many light commercial applications
- Fully optimized for R-410A refrigerant, recognized as the future industry standard
- Self-diagnostic capabilities provide added reliability
