- These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. They have 30in. Leads and 60 HZ with low power consumption. The motor has a standard 48 frame motor casing size and has drain holes with plugs on both end plates. There is a continuous air over on this motor and a 60 C Ambient Design with Extended Studs.

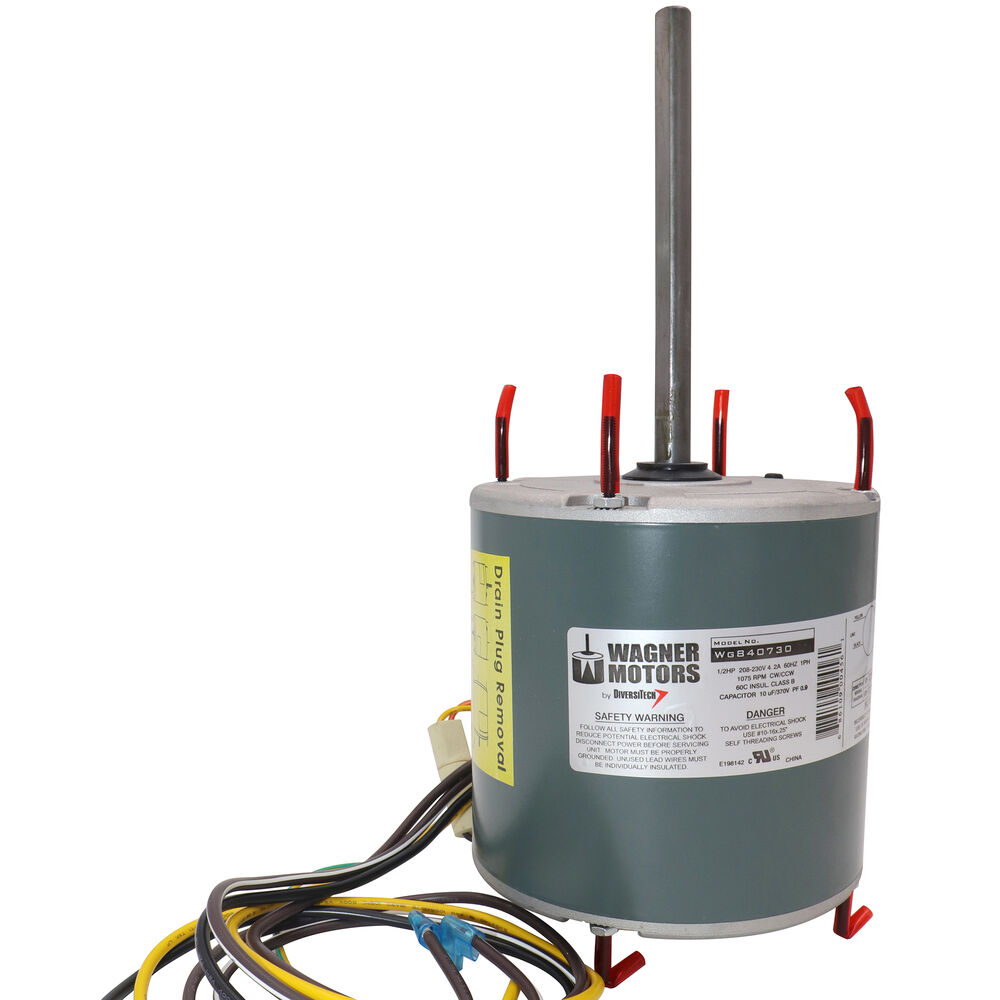

Wagner by Diversitech Condenser Fan Motor, Application Type: Condenser Fan Motors, 1/2 hp, 208 to 230 V, 4.2 A Full Load, 60 Hz, 1 ph, 1075 rpm, 1 Speed, Totally Enclosed Air Over, NEMA 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, Belly Band/Shaft Up/Down Mount, 60 deg C, Insulation Class: Class B, 5.59 in Dia x 11.95 in L
- Extended bolts - extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
- Supportive foam cradle - A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft and mounting bolts during shipment
- Large label - the informative product label contains the motor model number in large, easily identifiable type
- Capacitor size on box - the appropriate size of 370 VAC run capacitor is noted on every motor carton
- Ball bearings - fractional horsepower motors include ball bearings which allow greater heat endurance, improve performance, increase reliability and enhance motor life
- Large wiring diagram - Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet
- Carton handle - the motor carton has been designed with an innovative handle to make the motors much easier to carry
- For customer convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton
- Insulated disconnects - run capacitor connections are insulated for increased safety
- The flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided
- Easy-to-read packaging - the vibrant design of the fractional horsepower motor's packaging makes reading easy and direct
- The distributor can identify the stock of motors on the shelf with ease, the application, voltage and horsepower of the motor are clearly visible
- Extended wires - Wagner motor wires are 30 in long
- The added length makes it easier for the contractor to install the new motor
- Reversing plug - the electrical reversing plug simplifies rotation direction changes
- Enclosure TypeTotally Enclosed Air OverFrameNEMA 48Frequency Rating60 HzMotor HP1/2 HPSpeed1075 rpmVoltage Rating208 / 230 VAmperage Rating4.2 A Full LoadApplicationCondenser Fan MotorsBearing TypeBallDimensions5.59 in Dia x 11.95 in LInsulation ClassClass BManufacturerDiversitechManufacturer #WG840730Number of Speeds1RotationReversibleService Factor1Shaft Size1/2 in Dia x 5 in LTemperature Rating60 degC
