- Inspired by the slim lines and graceful arc of a ribbon, the Vero bath Collection offers a high-end, modern look.

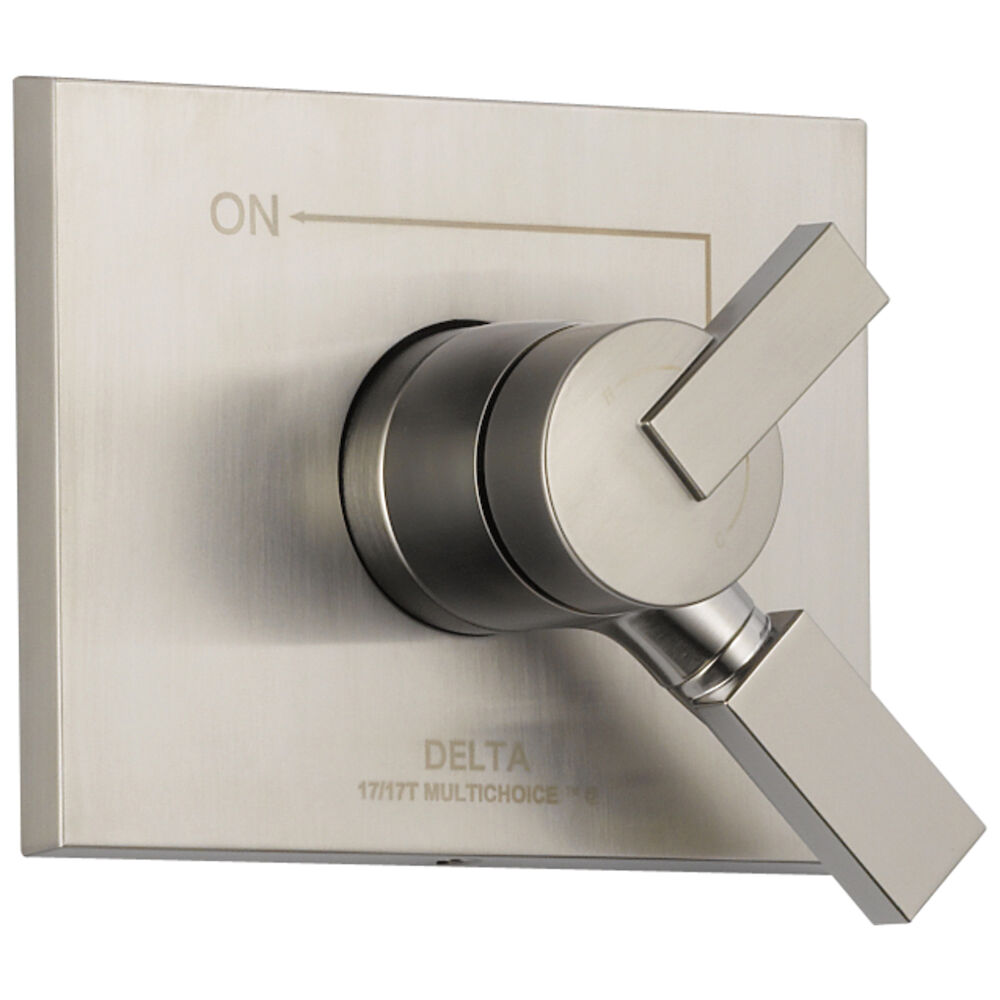

DELTA® Valve Trim, Series: Monitor® 17, Collection: Vero®, 2.5 gpm Shower Flow, Lever Handle, 7-3/32 in L x 5-19/32 in W Trim, Dual-Function Pressure Balanced Valve/Cartridge, 80 psi, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Stainless Steel, Domestic
- Order MultiChoice Universal rough-in separately
- Pressure Balance control
- Monitor® 17 series pressure balanced bath mixing valve trim
- Available in chrome, Venetian Bronze, Champagne Bronze, or Brilliance Stainless finishes
- Back-to-back installation capability
- Solid brass forged body
- Lever volume control handle, temperature adjustment diameter
- Field adjustable to limit handle rotation into hot water zone
- Maximum diameter rotation adjustable between 90 deg and 180 deg
- All parts are replaceable from the front of the valve
- 1/2 in CWT C and 1/2 in IPS threaded spout adapter
- Stem extension kit RP77992 can be ordered to allow for an additional 1-3/4 in wall thickness
- RP77992 ships with chrome escutcheon screws
- For special finishes also order RP12630 escutcheon screws in desired finish
- Hot/cold indicator
- CollectionVeroFinish / ColorStainlessShower Flow Rate2.5 gpmDomestic / ImportDomesticHandle TypeLeverManufacturerDelta Faucet CompanyManufacturer #T17053-SSMaterialBRASSPressure Rating80 psiSeriesMonitor® 17Trim Size7-3/32 in L x 5-19/32 in WValve / Cartridge TypeDual-Function Pressure Balanced
