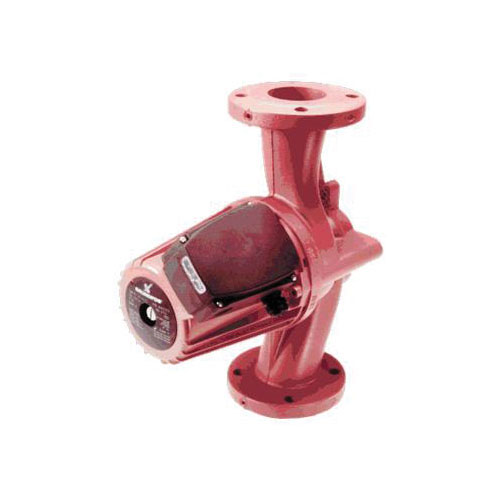

96439644 UP Series 1-Speed Circulator Pump

GRU96439644 MFG #: 96439644
  • Flow Rate: 15 to 100 gpm
  • Inlet Size: 1.5 in Flange
  • Outlet Size: 1.5 in Flange
  • Voltage Rating: 115 to 230 VAC
  • Amperage Rating: 3.4/1.8
  • Bearing Type: Thrust
  • Enclosure Type: IP44
  • Frequency Rating: 60
  • Impeller Type: 304 Stainless Steel
  • Manufacturer: Grundfos
  • Manufacturer #: 96439644
  • Maximum Head: 22.97
  • Motor Speed: 3450
The Grundfos UP Series 200 line of wet rotor circulators is unique to commercial building services. Most competitor pumps are dry runners. UP wet rotor circulators, on the other hand, are designed so that the water being pumped surrounds the rotor, cooling and lubricating the shaft and bearings. Wet rotor design eliminates the need for a fan to cool the motor. Fans are often a source of noise and vibrations that can resonate throughout a building via the pipe work. Eliminating the fan results in very quiet operation. UP Series 200 pumps are available in cast iron construction for closed (heating and air conditioning)and bronze construction for open (domestic hot water)systems. Both cast iron and bronze UP Series 200 pumps utilize laser-welded stainless steel impellers to achieve high pump efficiency. The standard UP motors are suitable for variable speed drive applications.

Grundfos VersaFlo® Circulator Pump, 1-Speed, Series: UP Series, 15 to 100 gpm, 1-1/2 in Flange Inlet, 1-1/2 in Flange Outlet, 22.97 ft Maximum Head, 400 W, 115 to 230 VAC, 3.4/1.8 A, 60 Hz, 124.73 psi Maximum, 3450 rpm Motor, 304 Stainless Steel Impeller, 104 deg F Ambient, IP44, Thrust Bearing, 12.2 in W x 8.5 in H
  • Features
  • Includes
  • Quiet operation
  • Maintenance-free
  • Easy to install
  • Small profile (1-piece vs 3-piece)
  • Seal less, which eliminates worries about hot water leakage
  • Pumped water lubricates the shaft and bearings so there is no oil to leak
  • No couplers to change
  • Wet rotor design
  • Terminal box or Line cord models
  • Cast iron housing
  • GF 40/43 flange connection
1 ph 1/2 hp 2-Pole Motor
