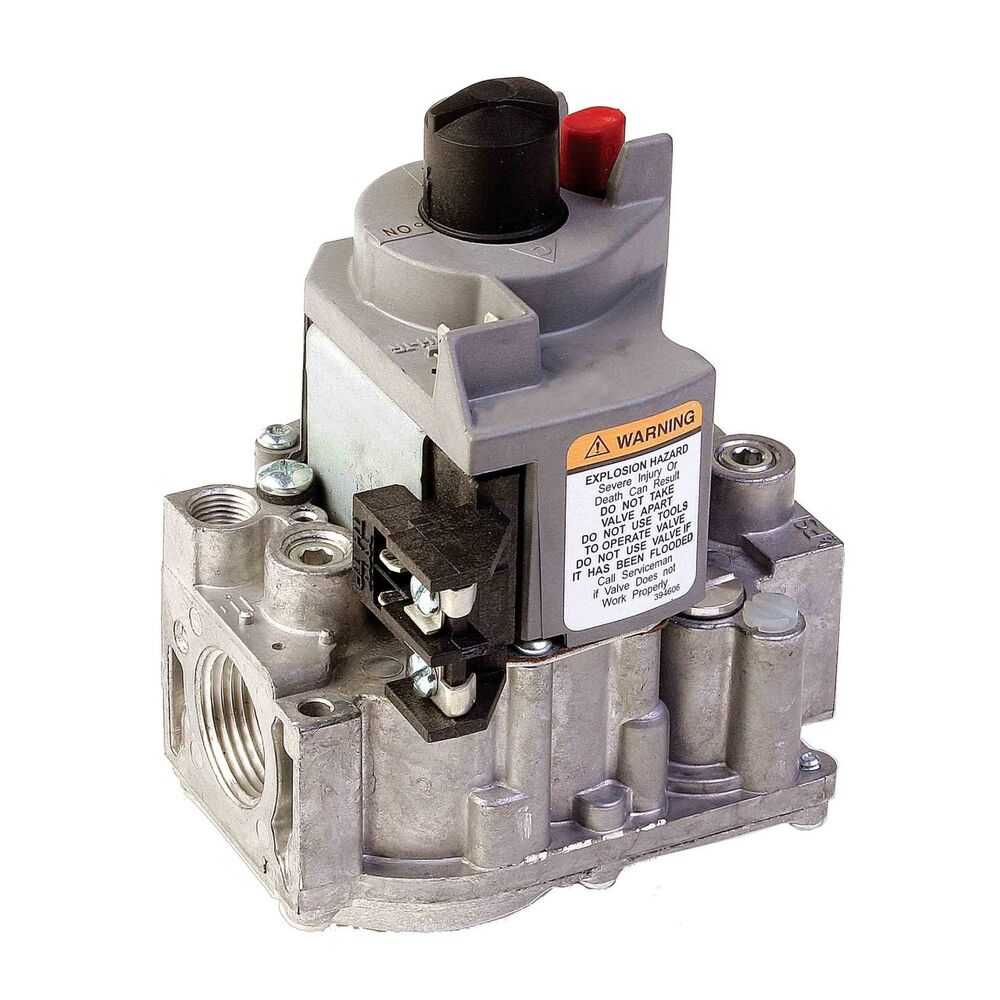

Honeywell VR8300H4501/U Low Voltage Slow Opening Combination Gas Control, 24 V, 0.7 A, Standing Pilot Ignition, 0.5 psi
Sign In to View Pricing & Availability
- Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Combination Gas Control, Low Voltage Slow Opening, Series: VR8300, 24 V, 0.7 A, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, Vertical Mount, 4-1/16 in W x 2-11/16 in D
- Compact size, provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- Lite-rite (off-pilot-on) lighting sequence
- Inlet Screen, Safety Shutoff, Manual Valve, (2) Automatic Operators, Pressure Regulator and Pilot Adjustment
- Amperage Rating0.7 AIgnition TypeStanding PilotPressure Rating0.5 psiVoltage Rating24 VDimensions4-1/16 in W x 2-11/16 in DManufacturerHoneywellManufacturer #VR8300H4501/UMounting TypeVerticalSeriesVR8300Temperature Rating0 to 175 degFTypeLow Voltage Slow Opening
