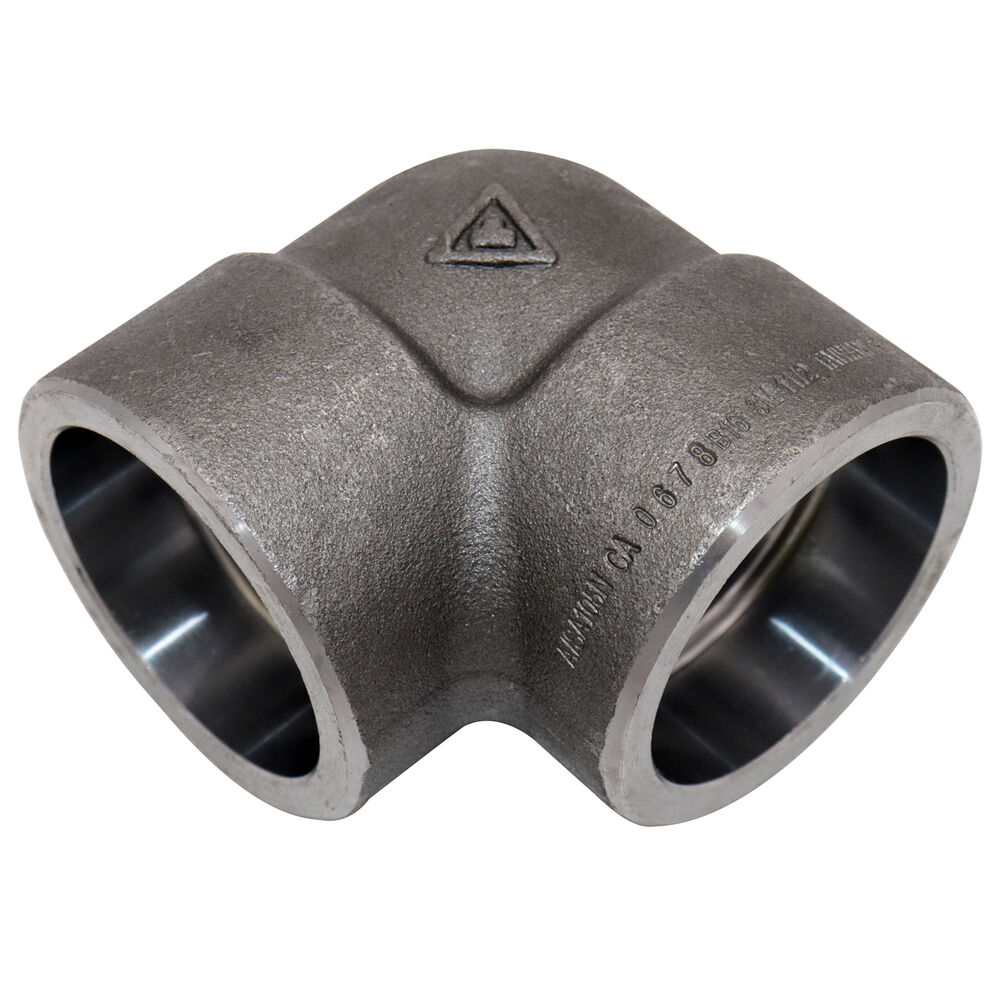

Name: FIG 3161 90 deg Pipe Elbow, 1-1/2", NPT, 300 lb, Malleable Iron, Black, Import
Brand: First Supply Approved
SKU: IB30090J
Availability: OutOfStock

First Supply Approved

FIG 3161 90 deg Pipe Elbow, 1-1/2", NPT, 300 lb, Malleable Iron, Black, Import

Item #IB30090J

UPC690291565663

BrandFirst Supply Approved

: SPF/Anvil™ Malleable Iron Pipe Fittings conform to ASME B16.3 dimensions and pressure ratings. Unions conform to ASME B16.39, while bushings and plugs conform to ASM B16.14. All SPF/Anvil Malleable Iron Fittings are tested for through wall porosity using an air under water process. Malleable Iron Class 150 and Class 300 Pipe Fittings are UL Listed and FM Approved.

Pipe Elbow, Series: FIG 3161, Fitting/Connector Type: 90 deg Elbow, 1-1/2 in Nominal Size, NPT, SCH 80/XS, SCH 80/XH, 300 lb, 1500 psi, Malleable Iron, Black, -20 to 150 deg F, Import

: Domestic / ImportImport
End StyleNPT
FinishBlack
Fitting / Connector Type90 deg Elbow
MaterialMalleable Iron
Nominal Size1-1/2 in
Pressure Class300 Lb
ManufacturerFirst Supply Approved
Pressure Rating1500 psi
Schedule RatingSCH 80/XS, SCH 80/XH
SeriesFIG 3161
Temperature Rating-20 to 150 deg F

: Specification Sheet
