ICP™ - Comfortmaker® / Tempstar®

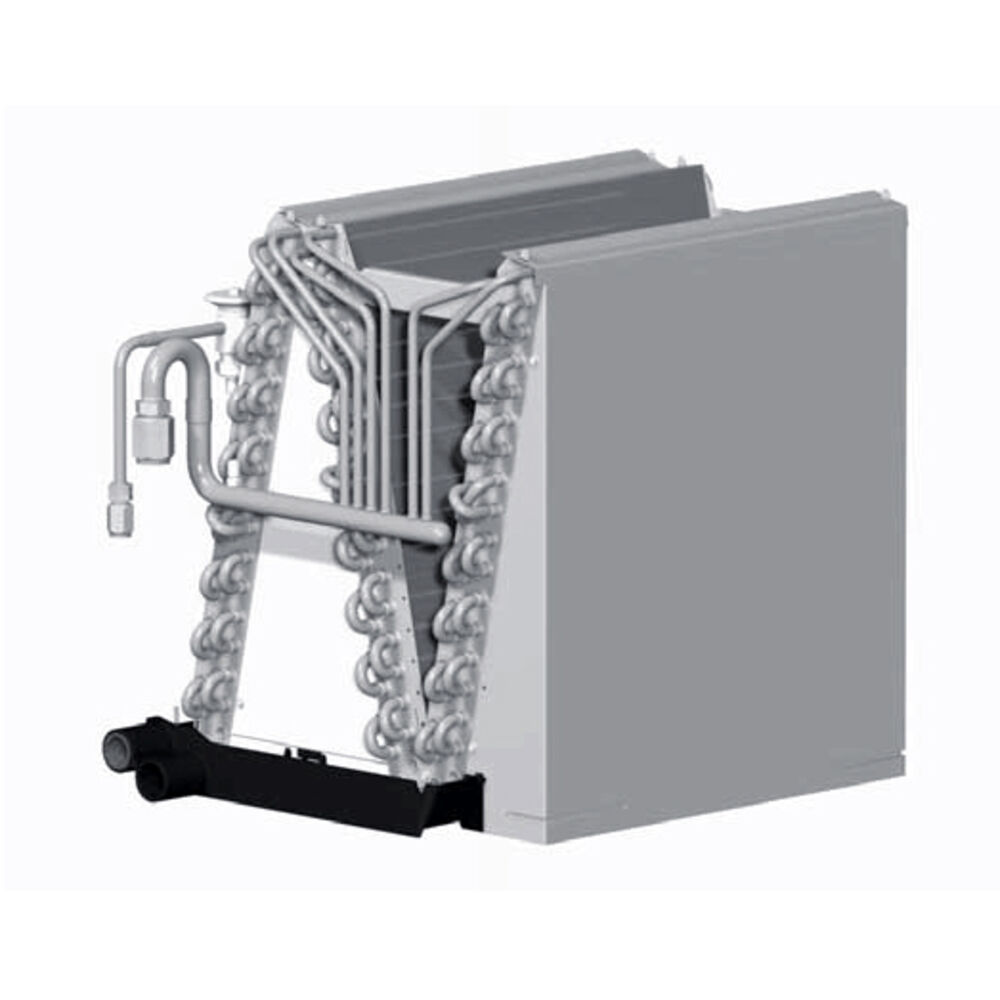

EMAWX24DAL ICP 19" Uncased Manufactured Home Evaporator Coil, Service Use, 2 Ton, 24,000 BTU/hr, R-410A Refrigerant, Aluminum
Sign In to View Pricing & Availability
- • Designed for mobile home downflow gas furnaces
- • Bolt-on TXV metering device factory installed on all models (equalizer tube brazed in)
- • Two condensate drain connections
- • “N” evaporator design to keep height at a minimum Shipped with condensate drain hose and trap
- • Shipped with fittings and adapter plates
- • Aluminum hairpin/return-bend/fin “N” coil with the latest high-tech fin design
- United States and is only available for service and warranty use. In Canada, the EMAWX can be used for new R-410A installations, service, and warranty use.
- Cooling Capacity24,000 Btu/hrEnclosure TypeUncasedFlow Rate700 to 900 cfmNominal Capacity2 tonRefrigerant TypeR-410ASeriesEMAWXTypeManufactured HomeDimensions17-7/8 in W x 12-5/8 in H x 19-9/16 in DFins per Inch16Liquid Line Size3/8 inManufacturerInternational Comfort ProductsManufacturer #EMAWX24DALMaterialAluminumMetering DeviceTXVSpecificationsProduct is for Service and Warranty OnlySuction Line Size5/8 inWeight34 lb
