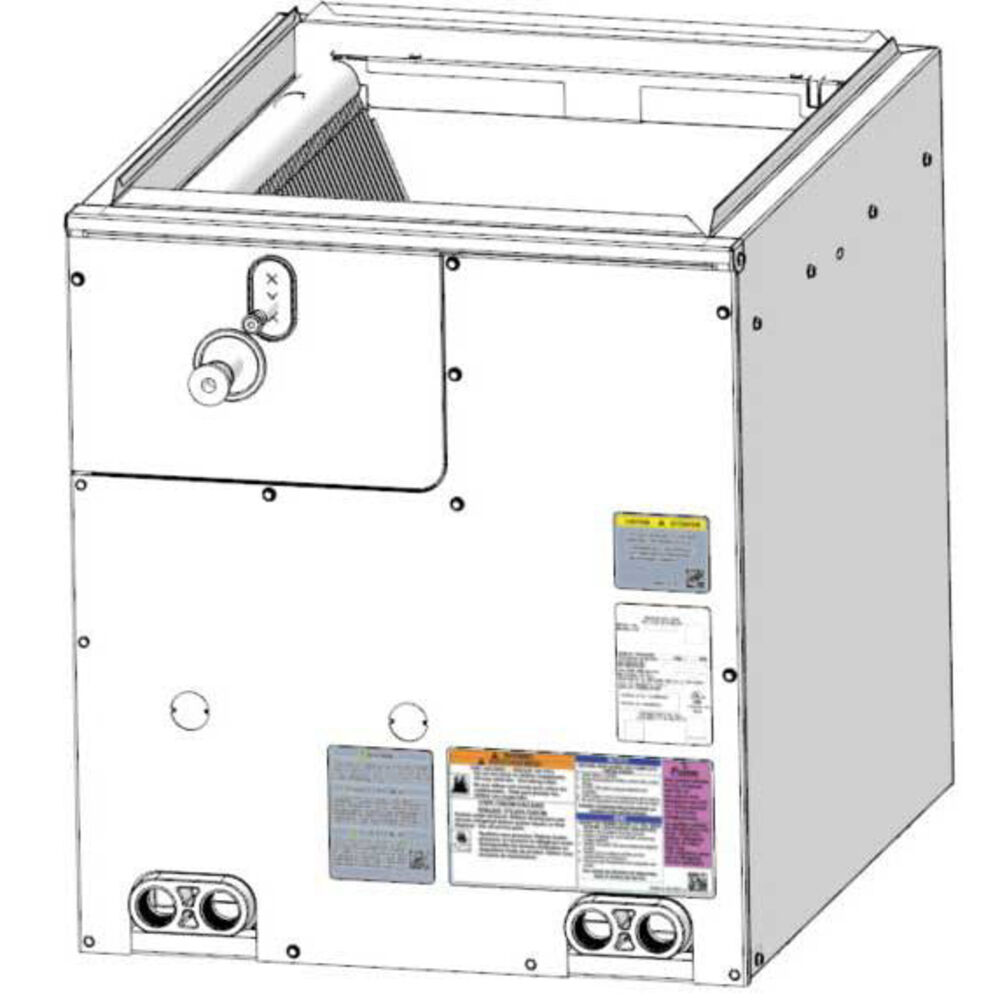

EVDWX60M24A ICP 24" Vertical Upflow / Downflow Cased Evaporator V-Coil, Service Use, 5 Ton, 60,000 BTU/hr, R-410A Refrigerant, Steel
Sign In to View Pricing & Availability
- This evaporator coil incorporates proven standards for reliable system operation and performance throughout the life of this product. These quality coils, manufactured and installed as part of a total comfort system, provide AHRI-rated performance ratings and are additionally listed with UL and c-UL. Available for use in R-410A refrigerant only, it is a cased V-coil or slope coil that is housed in a durable, 24-gauge, pre-painted cool gray cabinet. The fully insulated cabinet (foil faced with R-2.1 insulation) provides for quiet efficient operation of the evaporator coil.
- Designed with performance in mind, this new evaporator coil offers lower pressure drops to enhance system performance and airflow characteristics.
- All coils have refrigerant-specific, factory-installed TXVs. All models are factory pre-set to approximately 10° of superheat at the suction service valve.
- The corrosion-resistant drain pan is designed of a “Polybutylene terephthalate” material (PBT) that offers unsurpassed pan strength. It is engineered with proper slope to help ensure water drainage, improved moisture removal, and home comfort.
- The drain pan is supplied with three water-tight drain plugs to prevent leakage from unused drain connections.
- Provided with industry proven sweat connections for leak-free operation to maintain system reliability. The location of the lineset connections allows for removal of the access door for easy cleaning/servicing of the coils, as well as easy access to the TXV.
- All models come from the factory with enough length of straight tube— once the pipe swages are cut off—to accommodate braze-less compression fittings.
- Meets or exceeds burst pressure of 1900 psi, which is at least three times the maximum operating pressure it would see in actual cooling or heating application.
- This cased coil comes with factory-installed UV knockouts for quick and easy installation of UV lights.
- Comes with a “no delta plate” for easy, quick access to both sides of the coil for service and cleaning. Also, after the door is removed and refrigerant lines disconnected, the coil is removable from the front of the unit without the use of any tools.
- Cooling Capacity60,000 Btu/hrEnclosure TypeCasedFlow Rate1500 to 2500 cfmNominal Capacity5 tonRefrigerant TypeR-410ASeriesEVDWXTypeType VAir Flow TypeUpflow / DownflowColorCool GrayDimensions22-3/4 in W x 26-5/16 in H x 20-5/8 in DHairpin MaterialMicrochannelInstallation ConfigurationVerticalLiquid Line Size3/8 inManufacturerInternational Comfort ProductsManufacturer #EVDWX60M24AMetering DeviceTXVSuction Line Size7/8 inWeight41.3 lb
