First Supply Approved

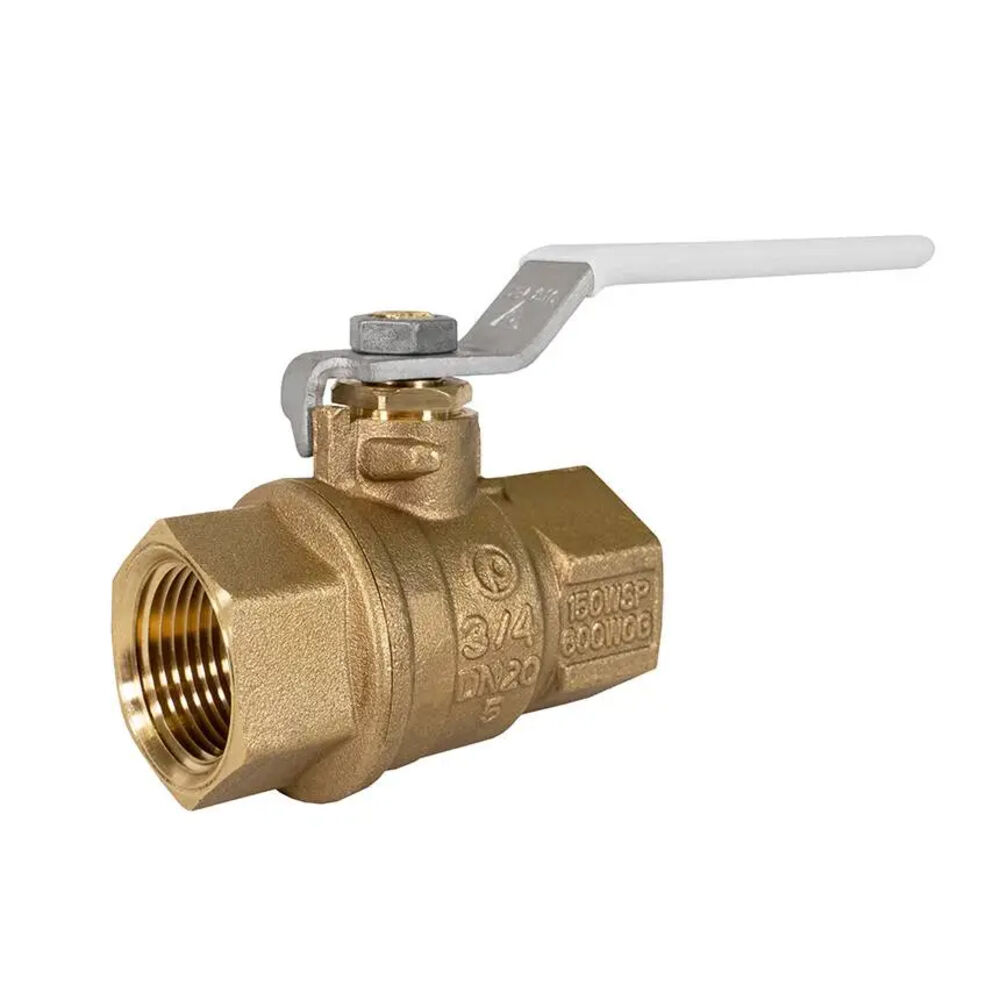

100-404G 2-Piece Ball Valve with Lever Handle, 3/4" Nominal, Thread, Brass Body, Full Port, Hostaflon® TFM / FKM Softgoods
Item #JOM100404G
While Supplies Last
Sign In to View Pricing & Availability
- Ball Valve, 2-Piece, 3/4 in Nominal, Thread End Style, 600 psi WOG Pressure, Full Port, 0.79 in Orifice, TEA Coated Brass Ball, 2.34 in Inlet to Outlet Length, 1.95 in Top to Inlet Center, Brass Body, Brass Stem and Hostaflon® TFM 1600 Seat Trim, Hostaflon® TFM/FKM Softgoods
- Compact design
- Triple sealing stem with (2) FKM O-Rings and PTFE seal
- Blow-out proof stem
- 100% leak tested
- Leak-proof stem lifetime warranty
- Wetted surface contains less than 0.25 % lead content
- 34.8 in Cv flow
- CW510L Lead free brass end connection/ball/stem, steel - Geomet® plated handle
- 150 psi working steam pressure
- Hostaflon® TFM 1600 packing and FKM stem O-ring
- Body MaterialBRASSEnd StyleThreadNominal Size3/4 inPort TypeFullSoftgoods MaterialHostaflon TFM / FKMBall MaterialTEA Coated BrassHandle StyleLeverInlet to Outlet Length2.34 inManufacturerFirst Supply ApprovedOrifice Size0.79 inPressure Rating600 psi WOGSeriesT-100CGTop to Inlet Center1.95 inTrim MaterialBrass Stem and Hostaflon TFM 1600 SeatType2-Piece
