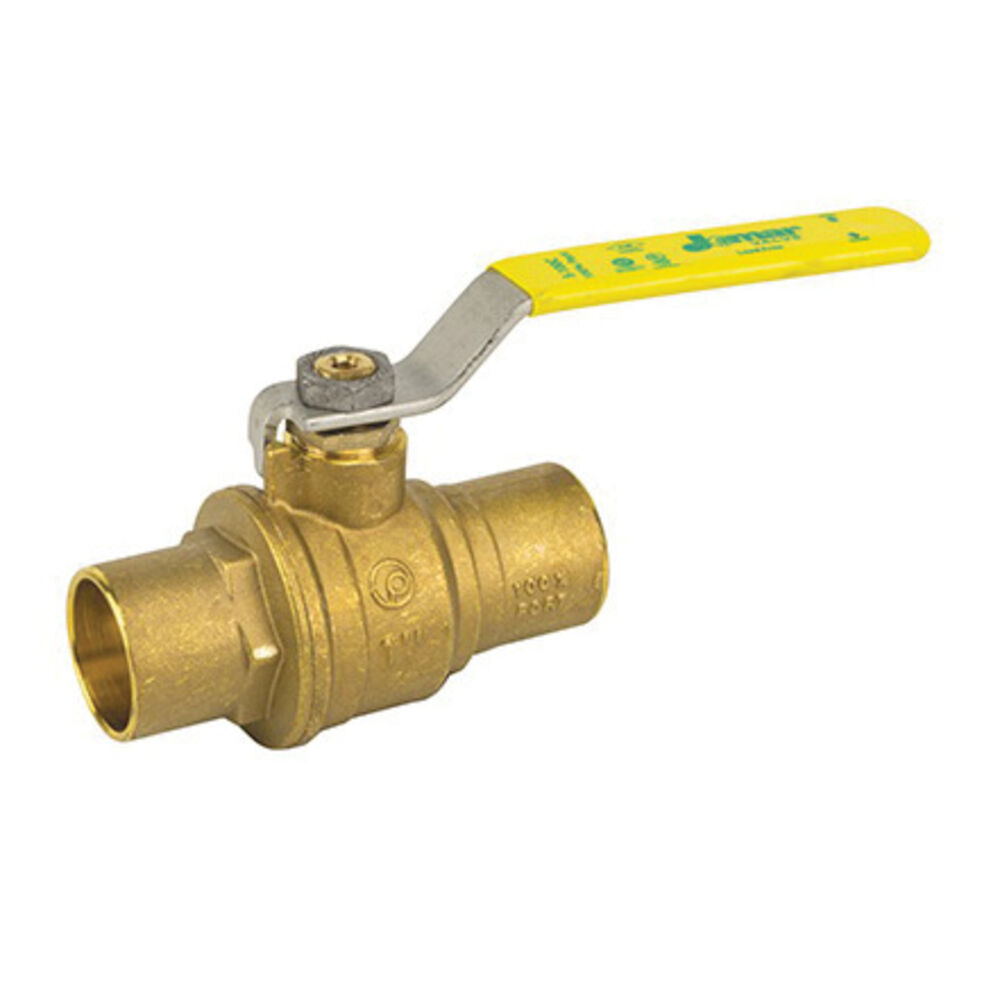

Name: 100-415G 2-Piece Ball Valve with Lever Handle, 1" Nominal, Solder, Brass Body, Full Port, TFM / FKM Softgoods
Brand: First Supply Approved
SKU: JOM100415G
Availability: OutOfStock

First Supply Approved

100-415G 2-Piece Ball Valve with Lever Handle, 1" Nominal, Solder, Brass Body, Full Port, TFM / FKM Softgoods

Item #JOM100415G

BrandFirst Supply Approved

While Supplies Last

: Ball Valve, 2-Piece, 1 in Nominal, Solder, 500 psi WOG, Full Port, 0.97 in Orifice, TEA Coated Brass Ball, 3.94 in Inlet to Outlet Length, 2.55 in Top to Inlet Center, Brass Body, Brass Stem Trim, TFM/FKM Softgoods

: Blow-out proof stem

100% leak tested

Leak-proof stem lifetime warranty

29 in-Hg vacuum rating

Wetted surfaces contains less than 0.25% lead content

Triple sealing stem with (2) FKM O-Rings and PTFE seal

CW510L TEA coated Lead free brass ball/body/stem

150 psi steam working pressure

TFM 1600 hostaflon® packing and FKM O-ring
: Body MaterialBRASS
End Stylesolder
Nominal Size1 in
Port TypeFull
Softgoods MaterialTFM / FKM
Ball MaterialTEA Coated Brass
Handle StyleLever
Inlet to Outlet Length3.94 in
ManufacturerFirst Supply Approved
Orifice Size0.97 in
Pressure Rating500 psi WOG
SeriesS-100CG
Top to Inlet Center2.55 in
Trim MaterialBrass Stem
Type2-Piece

: Catalog
Specification Sheet
