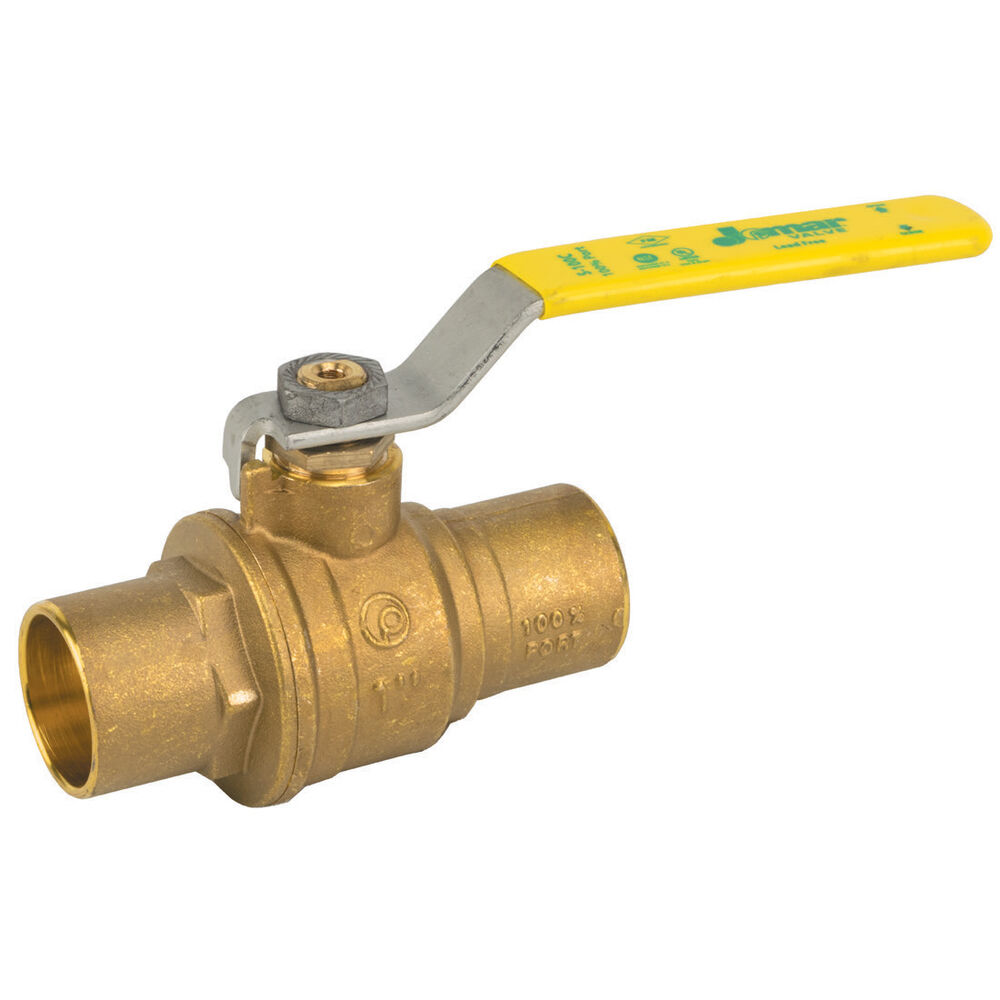

Name: 100-417G 2-Piece Ball Valve with Lever Handle, 1-1/2" Nominal, Solder, Full Port, PTFE G300 Softgoods
Brand: First Supply Approved
SKU: JOM100417G
Availability: OutOfStock

First Supply Approved

100-417G 2-Piece Ball Valve with Lever Handle, 1-1/2" Nominal, Solder, Full Port, PTFE G300 Softgoods

Item #JOM100417G

BrandFirst Supply Approved

While Supplies Last

: 100-417G, Ball Valve, 2-Piece, 1-1/2 in Nominal, Solder End Style, 600 psi WOG Pressure, Full Port, TEA Coated Brass Ball, 5.07 in Inlet to Outlet Length, 3.31 in Top to Inlet Center, PTFE G300 Softgoods, Import

: Triple sealing stem with 2 Viton o rings and Teflon seal

Blow out proof stem

100% leak tested

100% Made in Italy

Leakproof stem

29 in Hg vacuum rating

Wetted surfaces contain less than 0.25% lead content
: Body MaterialBRASS
Domestic / ImportImport
End Stylesolder
Nominal Size1-1/2 in
Port TypeFull
Softgoods MaterialPTFE G300
Ball MaterialTEA Coated Brass
Handle StyleLever
Inlet to Outlet Length5.07 in
ManufacturerFirst Supply Approved
Pressure Rating600 psi WOG
SeriesS-100CG
Top to Inlet Center3.31 in
Type2-Piece

: Catalog
Specification Sheet
