First Supply Approved

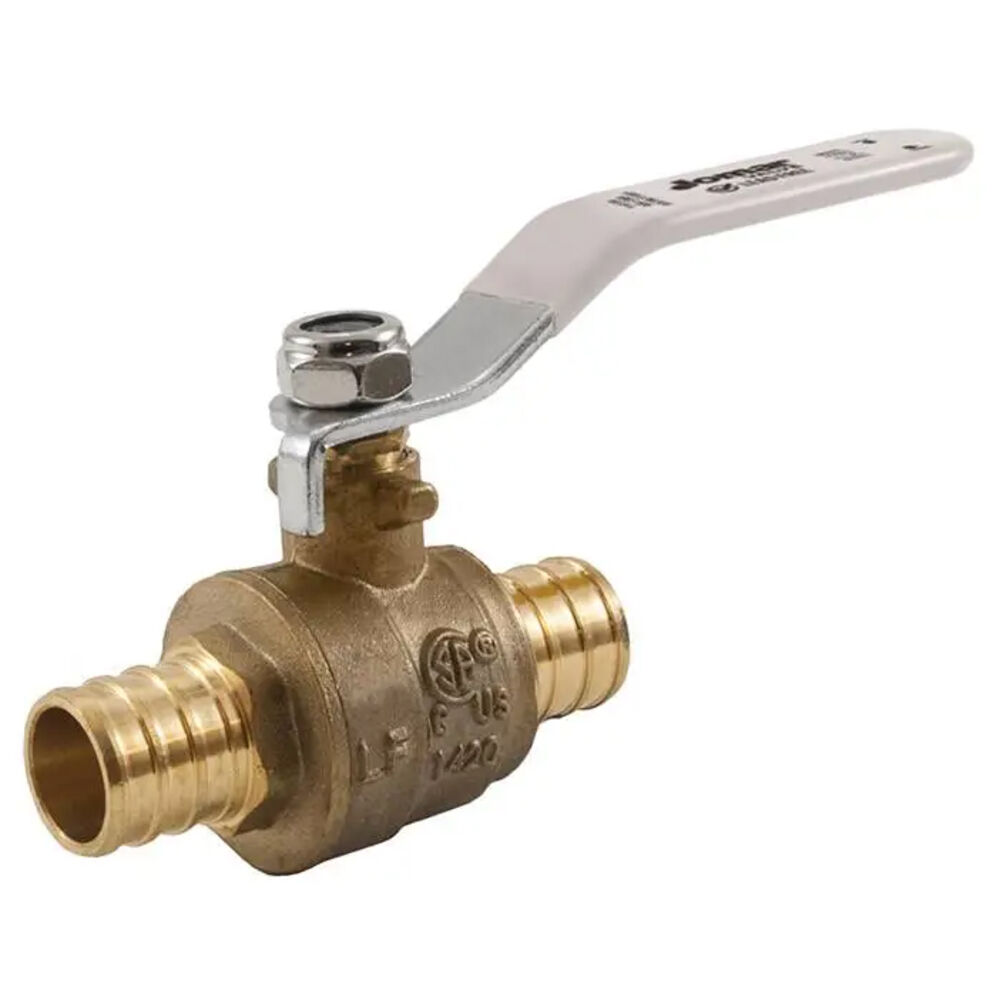

103-526PG 2-Piece Ball Valve with Lever Handle, 1-1/4" Nominal, F2159 Crimp PEX, Brass Body, Standard Port, PTFE / EPDM Softgoods
Sign In to View Pricing & Availability
- Ball Valve, 2-Piece, 1-1/4 in Nominal, PEX (Crimp) End Style, 400 psi WOG Pressure, 180 deg F, Standard Port, Lever Operated Actuator, Chrome Plated Brass Ball, 3.62 in Inlet to Outlet Length, 2.16 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE / EPDM Softgoods
- Gland follower and single O-Ring stem design
- Blow-out proof stem
- 100% leak tested
- Wetted surfaces contains less than 0.25 % lead content
- Crimp connection rated to 100 psi WOG up to 180 deg F
- PTFE packing and EPDM stem O-ring
- Body MaterialBRASSEnd StyleF2159 Crimp PEXNominal Size1-1/4 inPort TypeStandardSoftgoods MaterialPTFE / EPDMBall MaterialChrome Plated BrassHandle StyleLeverInlet to Outlet Length3.62 inManufacturerFirst Supply ApprovedPressure Rating400 psi WOGSeriesT-412GTemperature Rating180 deg FTop to Inlet Center2.16 inTrim MaterialBrass Stem and PTFE SeatType2-Piece
