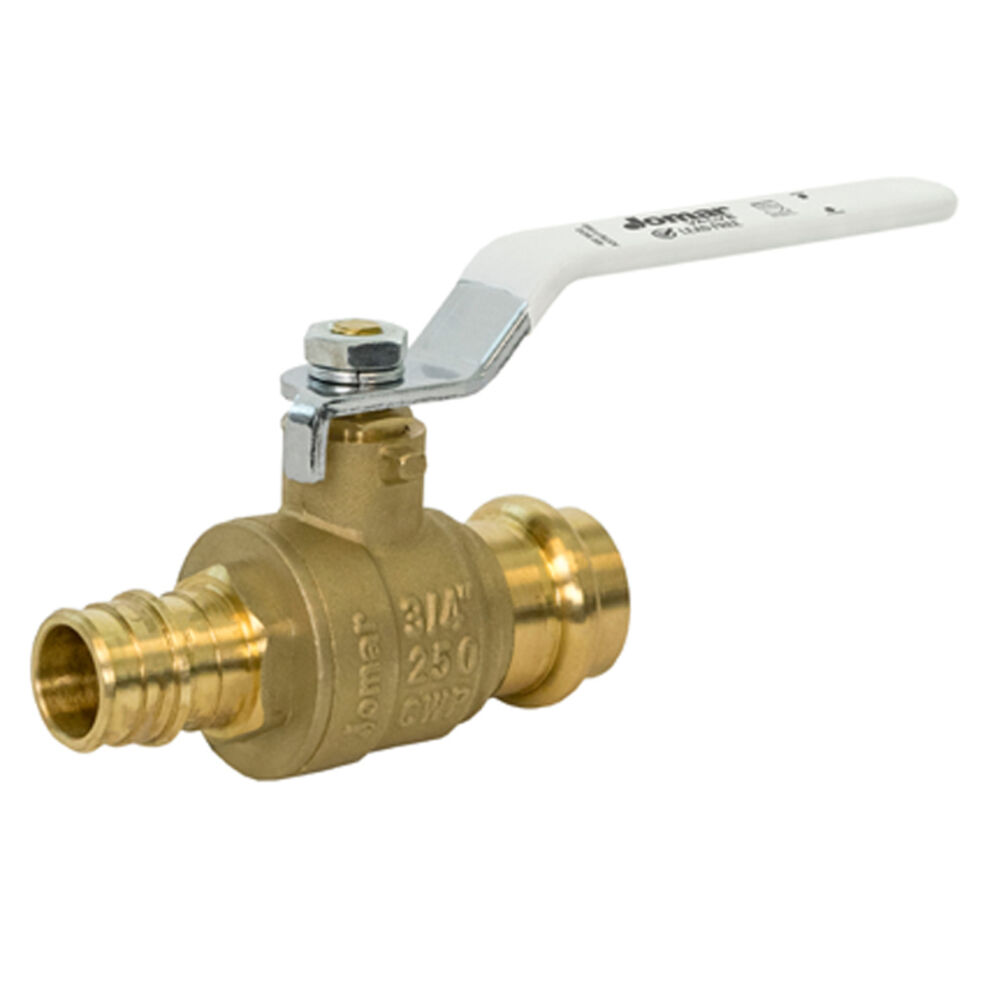

Name: 104-564PG 2-Piece Lead Free Ball Valve with Lever Handle, 3/4" Nominal, Press x F1960 Cold Expansion PEX, Brass Body, PTFE Softgoods
Brand: First Supply Approved
SKU: JOM104564PG
Availability: OutOfStock

First Supply Approved

104-564PG 2-Piece Lead Free Ball Valve with Lever Handle, 3/4" Nominal, Press x F1960 Cold Expansion PEX, Brass Body, PTFE Softgoods

Item #JOM104564PG

UPC662527309143

BrandFirst Supply Approved

: 104-564PG, Ball Valve, 2-Piece, 3/4 in Nominal, Press x F1960 Cold Expansion PEX End Style, 250 psi WOG Pressure, Stainless Steel Ball, 3.52 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Brass Body, PTFE Softgoods, Import

: Gland follower and single oring stem design

Blowout proof stem

100% leak tested

Wetted surfaces contain less than 0.25% lead content
: Body MaterialLead Free Brass
Domestic / ImportImport
End StylePress x F1960 Cold Expansion PEX
Nominal Size3/4 in
Port TypeStandard
Softgoods MaterialPTFE / EPDM
Ball MaterialStainless Steel
Handle StyleLever
Inlet to Outlet Length3.52 in
ManufacturerFirst Supply Approved
Pressure Rating250 psi WOG
SeriesT-422G PRESS x EXPANSION
Temperature Rating200 deg F
Top to Inlet Center2.09 in
Trim Material305 Brass Stem and PTFE Seat
Type2-Piece

: Catalog
Specification Sheet
