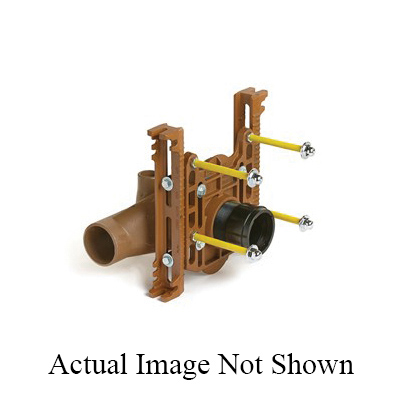

0211LY-M58/54 (-M13) Single Adjustable Fixture Support

JRS0211LYM58M54M13 MFG #: 0211LY-M58/54 (-M13)
  • Specifications: No-Hub Left Hand Long Barrel Outlet
  • Type: Single
  • Dimensions: 16-3/4 in W
  • Manufacturer: Jay R. Smith Mfg. Co
  • Manufacturer #: 0211LY-M58/54 (-M13)
  • Series: 0211LY-58/54
  • Suitable For Use With: Siphon Jet Water Closets
The Quarterback Water Closet Support from Jay R. Smith® Mfg. Co. is designed for a better fit in less chase area. Newly designed legs provide easy access to the securing bolts of the faceplate allowing for height adjustment even with adjacent wall framing. The legs also have four additional securing slots, which can accommodate accessories to aid in installation, especially for pre-fabrication.

Smith® Adjustable Fixture Support, Single, Series: 0211LY-58/54, For Use With: Siphon Jet Water Closets, No-Hub Left Hand Long Barrel Outlet, 16-3/4 in W
  • Features
  • Includes
  • Product Videos
  • Symmetric construction
  • Increased load bearing capability
  • One bolt per leg allowing quicker and easier pre-fabrication
  • Incremental markings in 1/2 in increments
  • Quicker rough-in for the installing contractor
  • 3 Anchor points for secure installation
  • Integral adjustable wall coupling nipple and test cap
  • 10 in L nipple cover various installations
  • Enhanced sealing with an O-ring at the faceplate
Polystyrene Tiling Frame, Face Plate with Side Leg Assembly/O-Ring Seal and Adjustable ABS Nipple
