- Maintenance-free, dual FKM O-ring stem design, light weight and durable forged traditional brass body, blow-out proof stem, PTFE seats for improved wear. Ball with drain for maintenance or to prevent freeze. Dacromet® coated steel handle and nut for greater corrosion resistance. Available in sizes and configurations 1/2 to 1 in, FNPT x FNPT and 1/2 to 1 in, C.

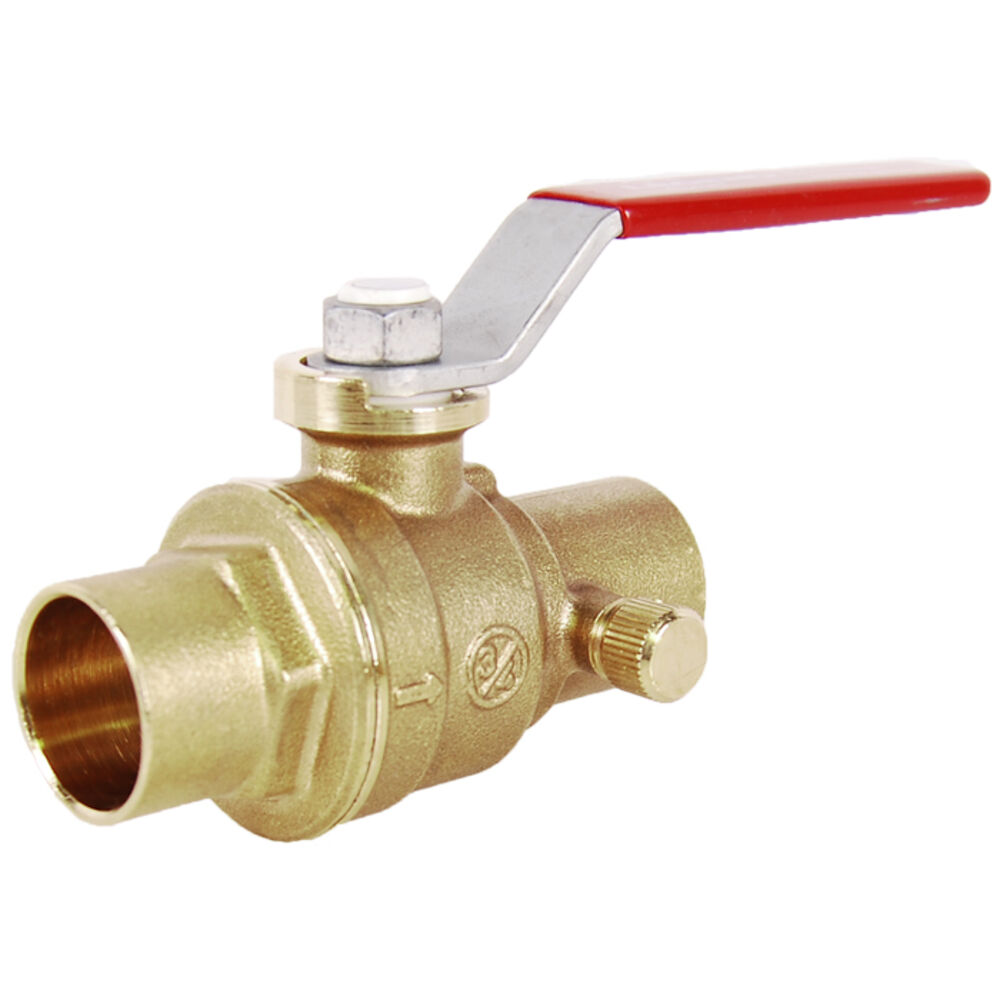

LEGEND Ball Valve, Lead Free, Series: S-1100, 3/4 in Nominal, C, 500 psi CWP, Full Port, 316 Stainless Steel Ball, 3.15 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Forged Brass Body, Chrome Plated Forged Brass Stem and TFM PTFE Seat Trim, Import
- Durable forged brass body
- Bottom loaded Blow-out proof stem
- Dual O-Ring stem seal
- 3M Dyneon TFM PTFE seats
- Allows line to be drained for maintenance or to prevent freeze-up
- Not suitable for steam service
- Body MaterialForged BrassDomestic / ImportImportEnd StyleCNominal Size3/4 inPort TypeFullBall Material316 Stainless SteelInlet to Outlet Length3.15ManufacturerLEGENDManufacturer #101-514SeriesS-1100Top to Inlet Center1.87Trim MaterialChrome Plated Forged Brass Stem and TFM PTFE Seat
