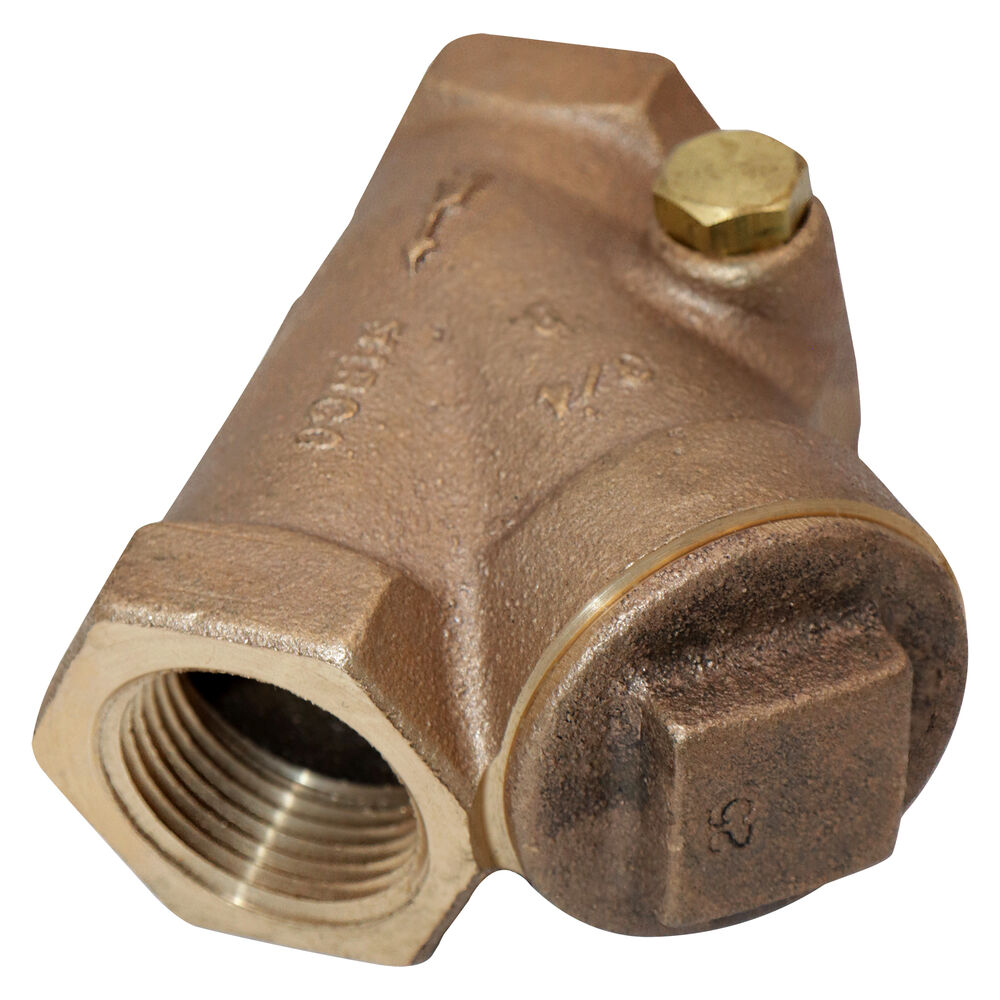

- The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features threaded end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services. The NIBCO® swing check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5-year 125% limited warranty.
NIBCO® Swing Check Valve, Y-Pattern, Series: T-413-B, 3/4 in Nominal, NPT End Style, 200 psi Pressure, 125 lb Pressure Class, Media: Steam, 2.94 in Inlet to Outlet Length, 1.88 in Top to Inlet Center, Bronze Body, Bronze Seat/Disc Trim, Domestic
- Renewable bronze disc
- Regrindable seat
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- 125 psi/8.6 bar saturated steam to 353 deg F
- Body MaterialBronzeDomestic / ImportDomesticEnd StyleNPTNominal Size3/4 inPressure Class125 LbInlet to Outlet Length2.94ManufacturerNIBCO Inc.Manufacturer #NL73008MediaSTEAMPressure Rating200 psiSeriesT-413-BTop to Inlet Center1.88Trim MaterialBronze Seat/DiscTypeY-Pattern
