- The NIBCO® ball valve is made of Lead free Silicon Performance Bronze™ alloy and has achieved the stringent NSF/ANSI 61 section 8 (Commercial Hot) and NSF/ANSI 372 listings. The 2-Piece valve provides bubble-tight shut-off at 600 psi and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball and is ideal for use in applications that deliver water for human consumption including residential and commercial construction. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features threaded ends for easy installation. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.

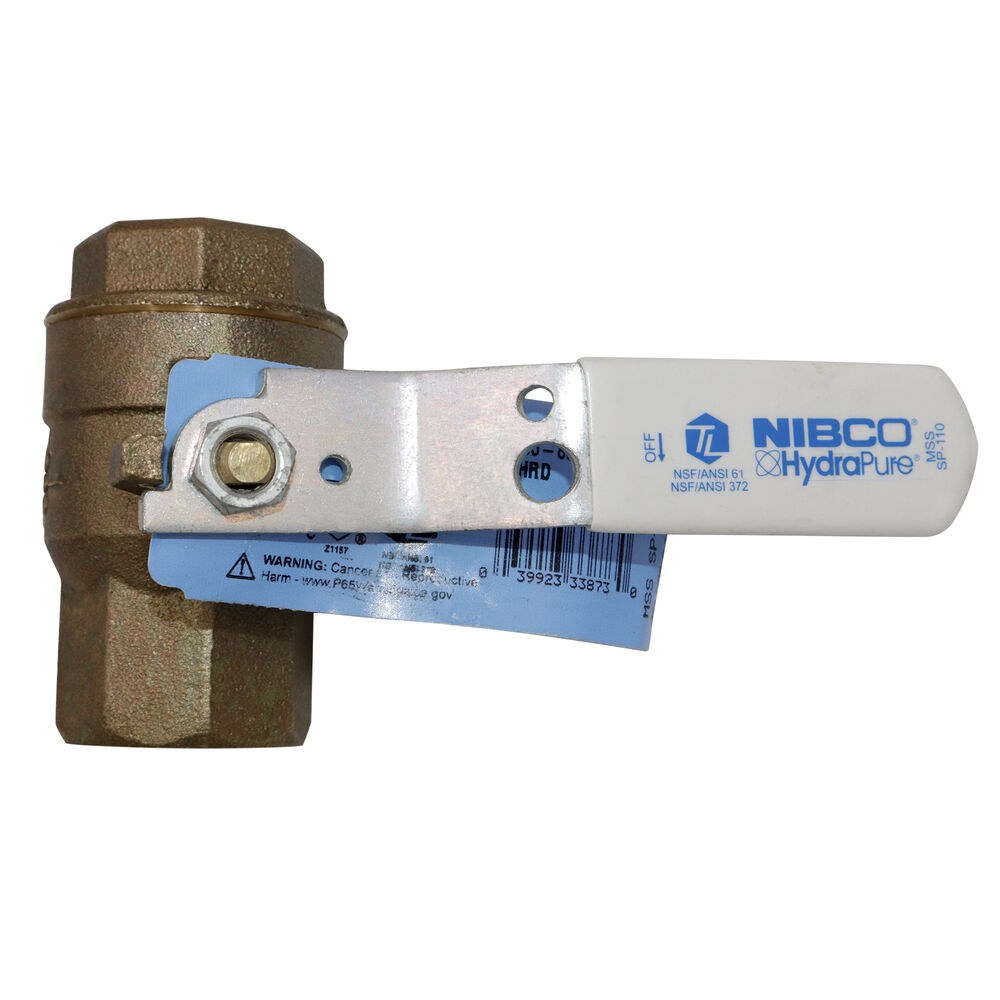

NIBCO® HydraPure® Ball Valve, Lead Free 2-Piece, Series: T-585-80-LF, 1 in Nominal, Thread End Style, 600 psi Pressure, 300 deg F, Full Port, Media: Water, 1 in Orifice, Standard Lever Actuator, Silicon Bronze Ball, 3.34 in Inlet to Outlet Length, 2.48 in Top to Inlet Center, Silicon Bronze Body, Silicon Bronze Stem Trim, PTFE Softgoods, Domestic
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Silicon performance bronze body, ball and stem
- Blowout-proof stem
- NIBCO® HydraPure® Lead-free markings on handle and body
- Dezincification resistant
- PTFE seat ring/thrust washer
- Standard lever handle, optional NIB-SEAL®, locking lever, memory stop, extended lever, round and wing
- Body MaterialSilicon BronzeDomestic / ImportDomesticEnd StyleThreadNominal Size1 inPort TypeFullSoftgoods MaterialPTFEActuator TypeStandard LeverBall MaterialSilicon BronzeInlet to Outlet Length3.34ManufacturerNIBCO Inc.Manufacturer #NL950XAMediaWaterOrifice Size1Pressure Rating600 psiSeriesT-585-80-LFTemperature Rating300 deg FTop to Inlet Center2.48Trim MaterialSilicon Bronze StemType2-Piece
