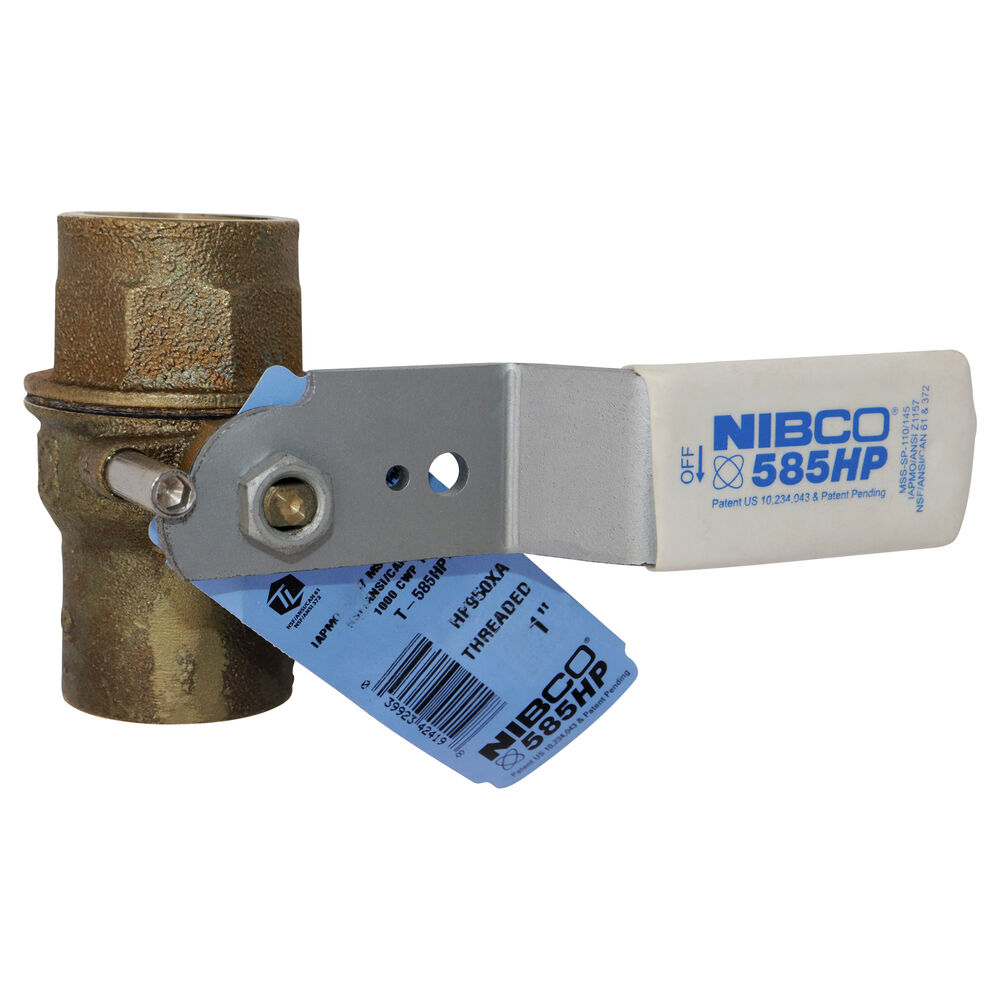

- The 585HP is on the cutting edge of manufacturing technology, ease of installation, and highest quality standards. The Classic Ball Valve has been completely rethought and redesigned to enhance the user experience and incorporate advances in assembly technology. NIBCO has created the most advanced commercial ball valve on the market today. The valve is laser-welded to create an incredibly strong joint between the body and body-end pieces, eliminating a potential leak path. The weld allows for an increased pressure rating of 1,000 psi, up from the standard 600 psi.
- Full port
- Laser Welded
- Reversible Handle
- Easily Adjustable Pack Nut
- Blowout-proof Stem
- Reinforced PTFE Seat Rings
- Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
- 150 psi/10 Bar Steam Working Pressure
- Maximum temperature rating 300°F
- End StyleThreadNominal Size1 inHandle StyleCS Standard LeverManufacturerNibco IncManufacturer #HP950XAMaterialBronzePressure Rating1000 psiTemperature Rating300 deg F
