- The NIBCO® bronze ball valve provides bubble-tight shut-off at 600 psi. The 3-Piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The 3-Piece valve is repairable in-line. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The 3-Piece valve features threaded ends for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.

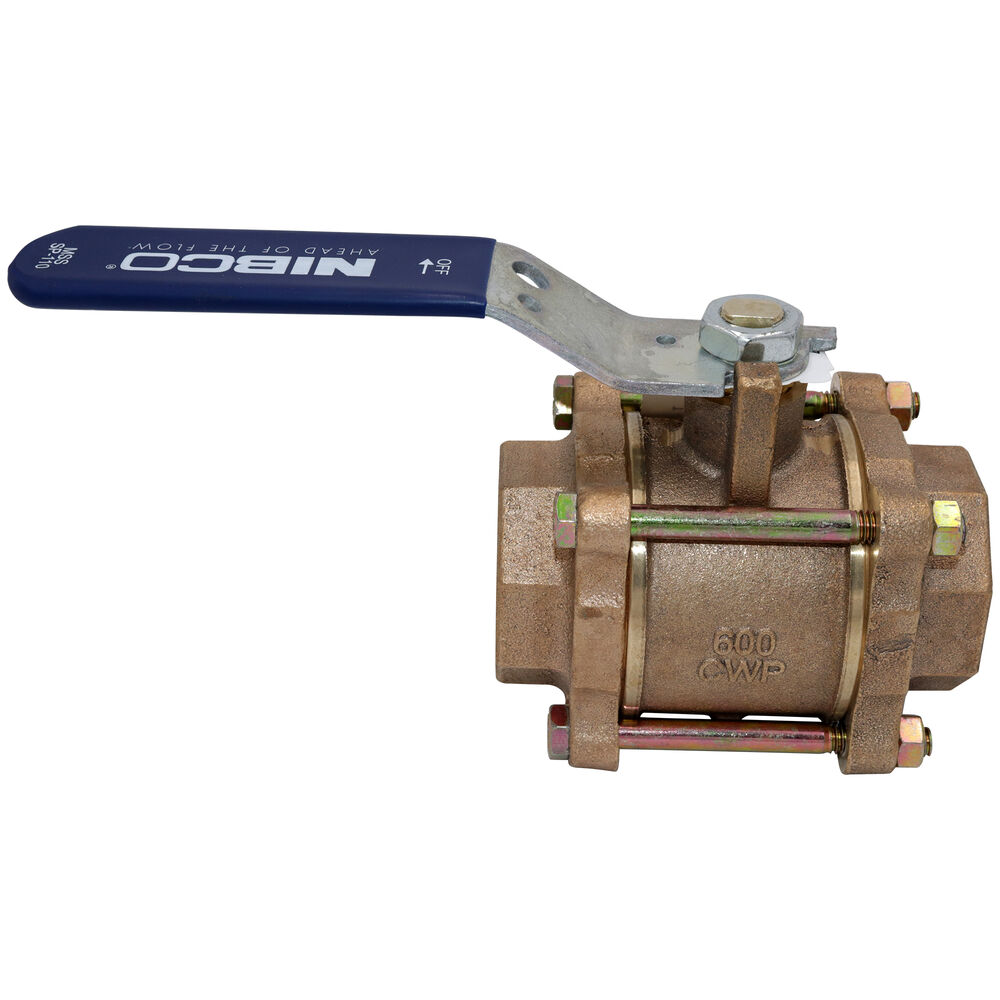

NIBCO® Ball Valve, 3-Piece, Series: T-595-Y, 1-1/2 in Nominal, FNPT End Style, 600 psi Pressure, 400 deg F, Full Port, Media: Air/Gas/Water, 1-1/2 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 4.56 in Inlet to Outlet Length, 2.97 in Top to Inlet Center, Bronze Body, Silicon Bronze Stem Trim, PTFE/Fluorocarbon Rubber Softgoods, Domestic
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- PTFE seat ring/packing and fluorocarbon rubber O-Ring seal
- Standard lever handle, optional NIB-SEAL®
- Body MaterialBronzeDomestic / ImportDomesticEnd StyleFNPTNominal Size1-1/2 inPort TypeFullSoftgoods MaterialPTFE/Fluorocarbon RubberActuator TypeStandard LeverBall MaterialChrome Plated BrassInlet to Outlet Length4.56ManufacturerNIBCO Inc.Manufacturer #NL9950CMediaAir/Gas/WaterOrifice Size1-1/2Pressure Rating600 psiSeriesT-595-YTemperature Rating400 deg FTop to Inlet Center2.97Trim MaterialSilicon Bronze StemType3-Piece
