- Oatey® MODA™ condensate drain kits outlet boxes shall be used in residential or commercial applications requiring drain line access recessed in the wall. MODA™ condensate drain kits contain a quarter-turn drainage funnel, and a preinstalled inlet adapter for connection to condensate, water softener or other auxiliary drain lines. When installed, the drainage funnel provides a 1 in air gap to the drain, while permitting the use of a washing machine hose in the same drain line. The inlet adapter shall have with a male test plug, secured with a stainless steel retention ring. The drain connection shall include a removable quarter turn plug for DWV testing. Box shall be manufactured of PVC, allowing solvent welded joints to be prepared in accordance with ASTM D2855 for PVC drainage systems (without the use of specialty cements). The outlet boxes shall also include interlocking wing flanges on each side. The outlet box wing flanges shall allow installation on a single stud, or between two studs using the included side brackets. No additional components shall be required for a between stud installation.

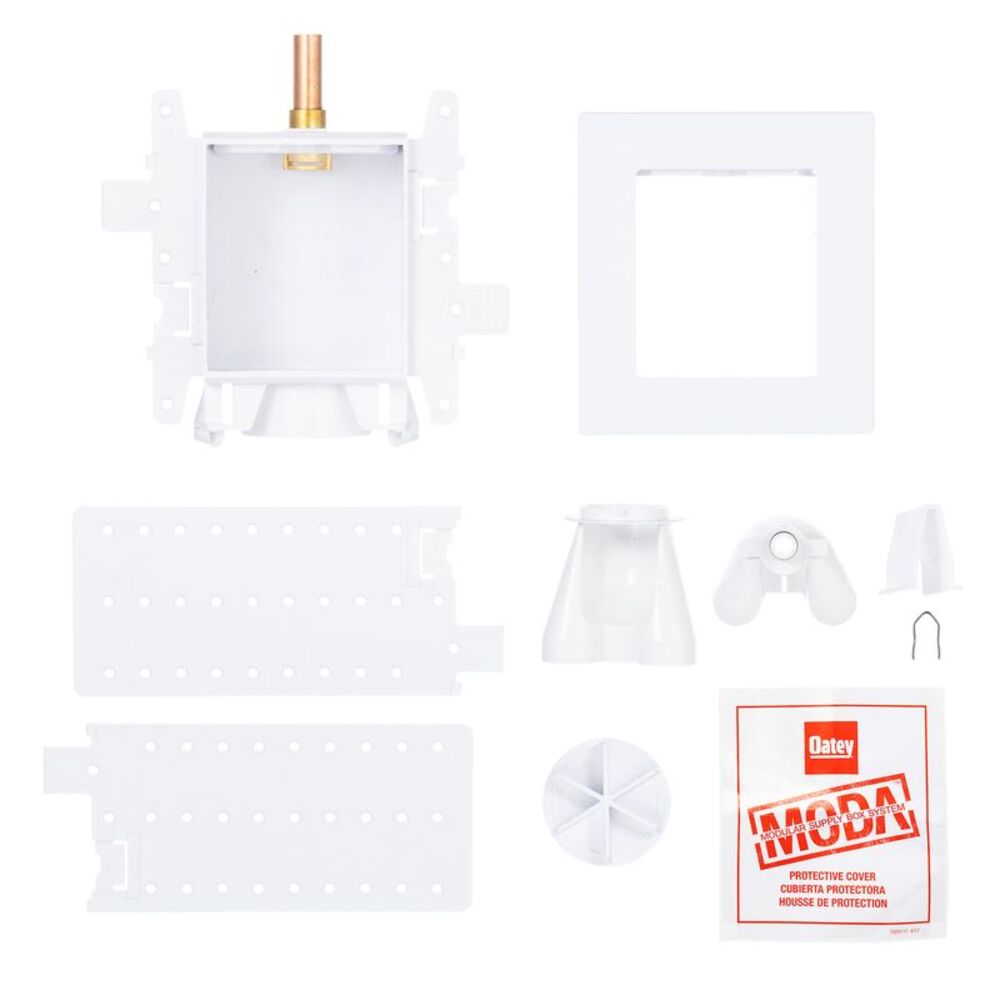

Oatey® MODA™ Condensate Secondary Drain Kit, 3/4 in, For Use With: Washing Machine, Brass PEX Connection
- 8 in W x 3.38 in D x 4.85 in H box
- 250 deg F temperature
- 7 gpm flow
- Faceplates are pre-assembled on box
- Auxiliary Drain Box, Funnel, 1 Inlet Connection and Drain Test Plug
- Size3/4 inSpecificationsF1960 Cold Expansion PEXSuitable For Use WithWashing MachineManufacturerOATEYManufacturer #37988
