- Exposed, battery-powered, sensor-activated, urinal flushometer with a single-flush side mount unit for 3/4 in top spud urinals.

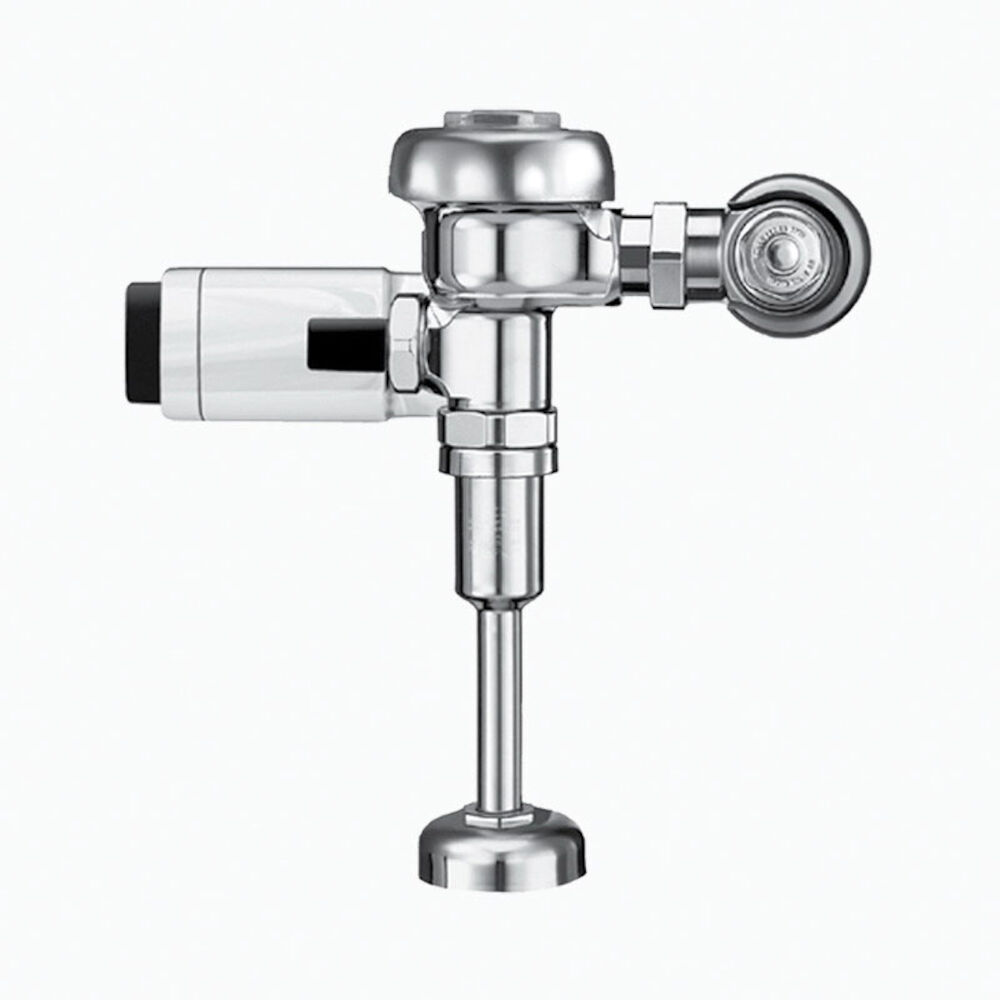

Sloan® Regal® Sensor Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, Battery, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi, Semi-Red Brass, Polished Chrome
- Water conservation is aided by the ADA compliant, non-hold-open handle which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- (4) Size C Batteries
- Finish / ColorPolished ChromeFlush Rate1 gpfInlet Size3/4 in IPSPower SourceBatteryPressure Rating15 to 80 psiSpud Coupling3/4 inConnection LocationTop SpudFixture TypeUrinalManufacturerSloan Valve CompanyManufacturer #3982525MaterialSemi-Red BrassRough-In Size11-1/2 inSensor Range22 to 42 inSeries186TypeSingle-FlushValve DesignDiaphragm
