- This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.

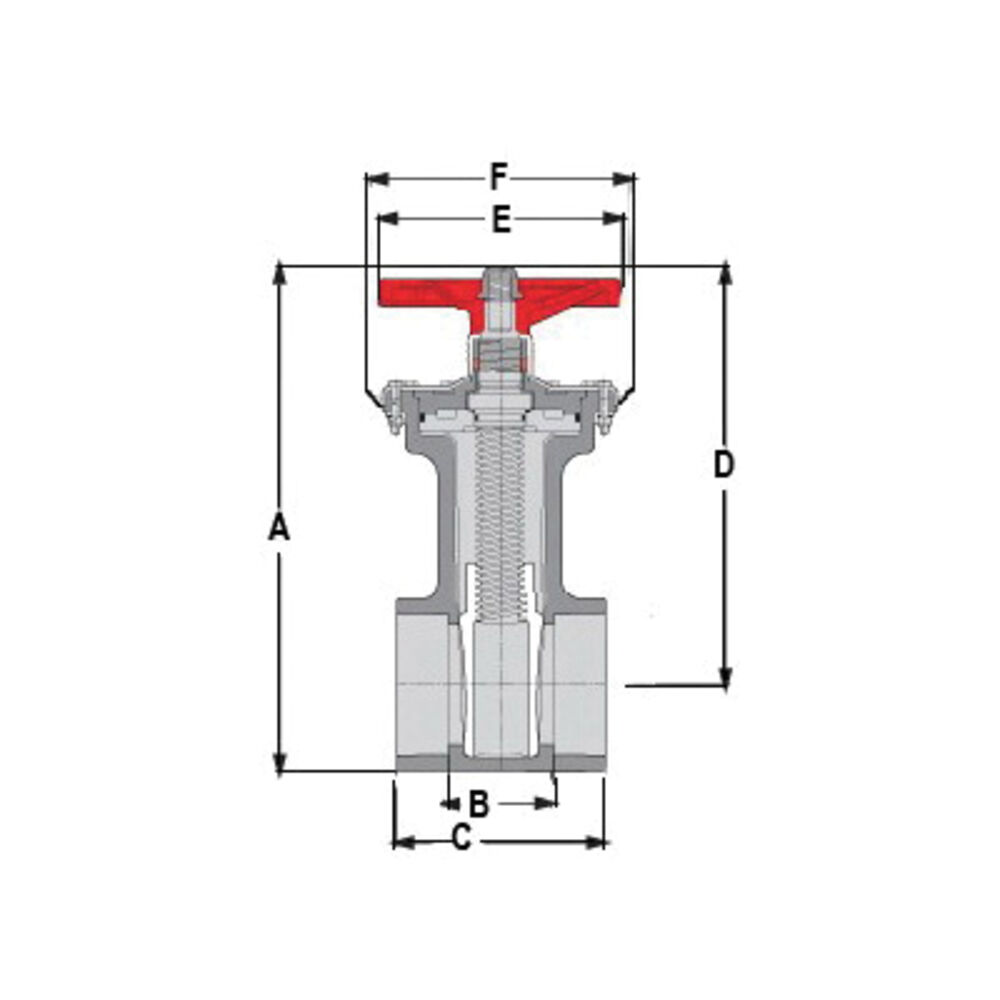

Spears® Gate Valve, 4 in Nominal, Socket End Style, 235 psi Pressure, 140 deg F, Handwheel Actuator, PVC Body, PVC Trim, EPDM O-Ring Softgoods, 8 in Diameter Hand Wheel, Gray, Domestic
- Tapered wedge with specially designed sealing surface
- Non-rising stem design
- O-ring stem seals instead of packing
- Positive grip, high impact polypropylene handwheel operator
- Fully serviceable, replaceable components accessible without valve removal
- SCH 80
- Valves are assembled with silicone free, water soluble lubricant
- Actuator TypeHandwheelBody MaterialPVCDomestic / ImportDomesticEnd StyleSocketNominal Size4 inColorGrayHand Wheel Diameter8 inManufacturerSpears ManufacturingManufacturer #2022-040Pressure Rating235 psiSoftgoods MaterialEPDM O-RingTemperature Rating140 deg FTrim MaterialPVC
