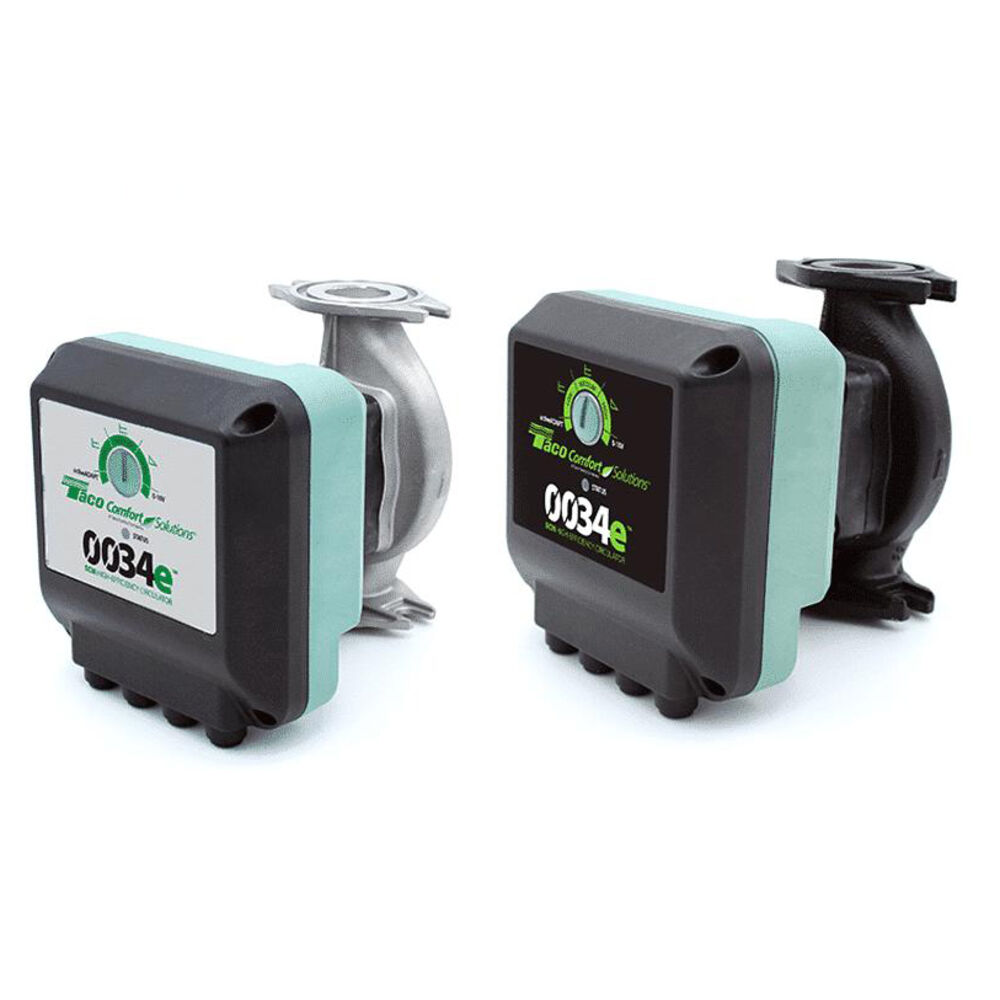

- Taco®, 0034eP-F2, High Efficiency Circulator, Cast Iron, Series: 00e, 50 gpm Flow Rate, 34 ft Maximum Head, 115/208/230 V, 1.48 A at 115V, 0.70 A at 230V, 50 to 60 Hz Frequency, 1 ph, 830 to 4300 rpm Motor, Composite Impeller, Flange Mounting, 14 to 230 deg F, Ceramic Bearing, 7.05 in H x 6.22 in W x 8.05 in D Dimensions, Domestic
- Simple 3-button control
- Digital LED screen displays, Watts, GPM, Head, RPM and diagnostic error codes
- Five operating modes to match any system requirements - activeADAPT®, Constant Pressure, Proportional Pressure, Min/Max Fixed Speed or speed control through 0-10 VDC or PWM external input
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Replaces all single speed and 3-speed circulators in its class
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Whisper quiet operation
- Rotatable control cover to simplify installation
- Domestic / ImportDomesticFlow Rate50 gpmMaterialCast IronVoltage Rating115 / 208 / 230 VAmperage Rating1.48 A at 115V / 0.70 A at 230VBearing TypeCeramicDimensions7.05 in H x 6.22 in W x 8.05 in DFrequency Rating50 to 60 HzImpeller TypeCompositeManufacturerTACOManufacturer #0034EP-F2Maximum Head34 ftMotor Speed830 to 4300 rpmMounting TypeflangePhase1Series00eTemperature Rating14 to 230 deg F
