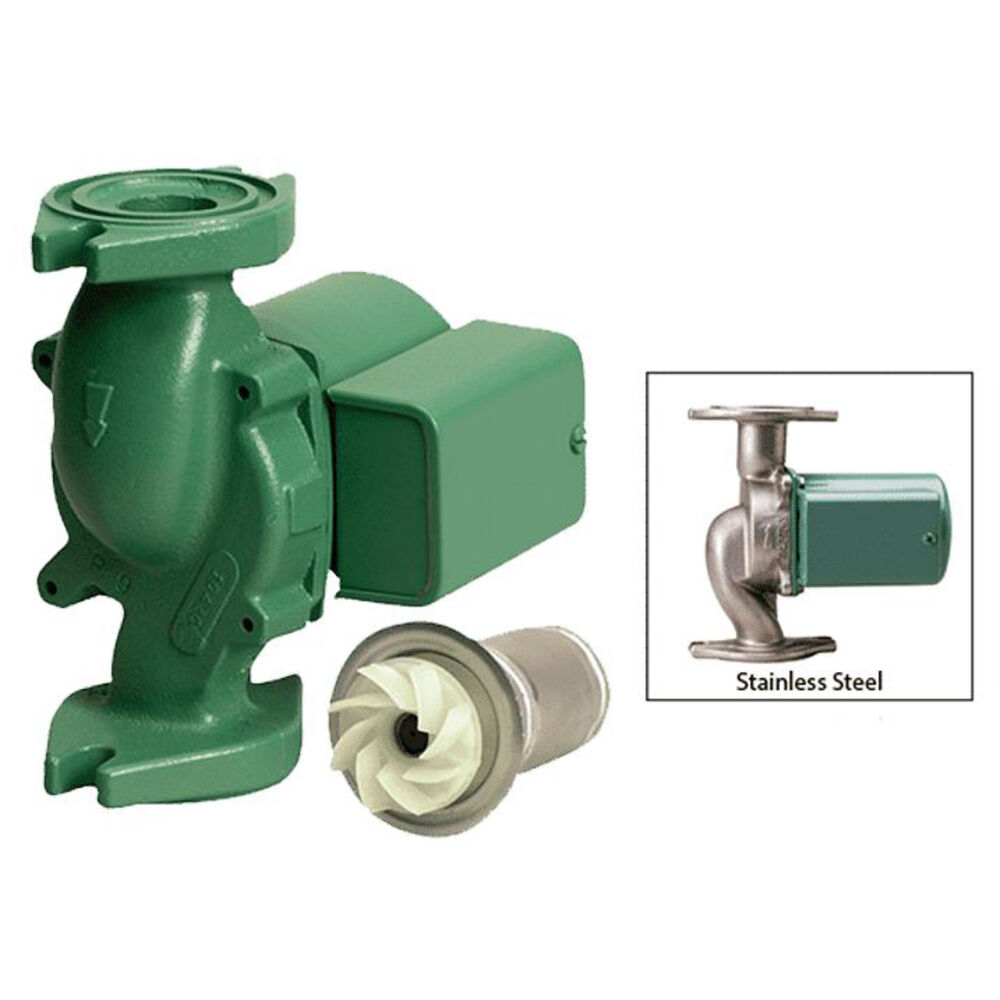

- Taco®, 005-F2, Cartridge Circulator, Cast Iron, Series: 00, 0 to 19 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 0 to 9 ft Maximum Head, 1/35 hp Power, 115 V, 0.52 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 5-4/8 in D Dimensions
- Cast Iron or Stainless Steel Construction
- Cast Iron or Stainless Steel Construction
- Direct Drive-Low Power Consumption
- No Mechanical Seal
- Quiet, Efficient Operation
- Self Lubricating
- Standard High Capacity Output-Compact Design
- Unique Replaceable Cartridge - Field Serviceable
- Unique Replaceable Cartridge Design-Field Serviceable
- Unmatched Reliability - Maintenance Free
- Unmatched Reliability-Maintenance Free
- Flange Gaskets
- Flow Rate0 to 19 gpmInlet Size1-1/2, 1, 3/4, 1-1/4 inMaterialCast IronVoltage Rating115 VBearing TypeCarbonDimensions6-3/8 in H x 4-3/4 in W x 5-4/8 in DFrequency Rating60 HzImpeller TypeNon-MetallicManufacturerTACOManufacturer #005-F2Maximum Head0 to 9 ftMaximum Pressure125 psiMotor HP1/35 HPMotor Speed3250 rpmMounting TypeflangePhase1Series00Temperature Rating40 to 230 deg F
