Taco®

007e-2F4 007e® ECM High-Efficiency Circulator, 2-Way Flange, Cast Iron

TAC007E2F4 MFG #: 007e-2F4
007e-2F4 007e® ECM High-Efficiency Circulator, 2-Way Flange, Cast Iron
  • Flow Rate: 16 gpm
  • Voltage Rating: 120 VAC
  • Connection Type: Universal 2-Way Flange
  • Dimensions: 6-3/8 in H x 6 in W x 5 in D
  • Energy Rating: 168 to 187
  • Manufacturer: TACO
  • Manufacturer #: 007e-2F4
  • Material: Cast Iron
  • Phase: 1
  • Pressure Rating: 125 psi
  • Series: 007e
  • Temperature Rating: 230 deg F
  • Type: High Efficiency
  • Valve / Cartridge Type: Composite

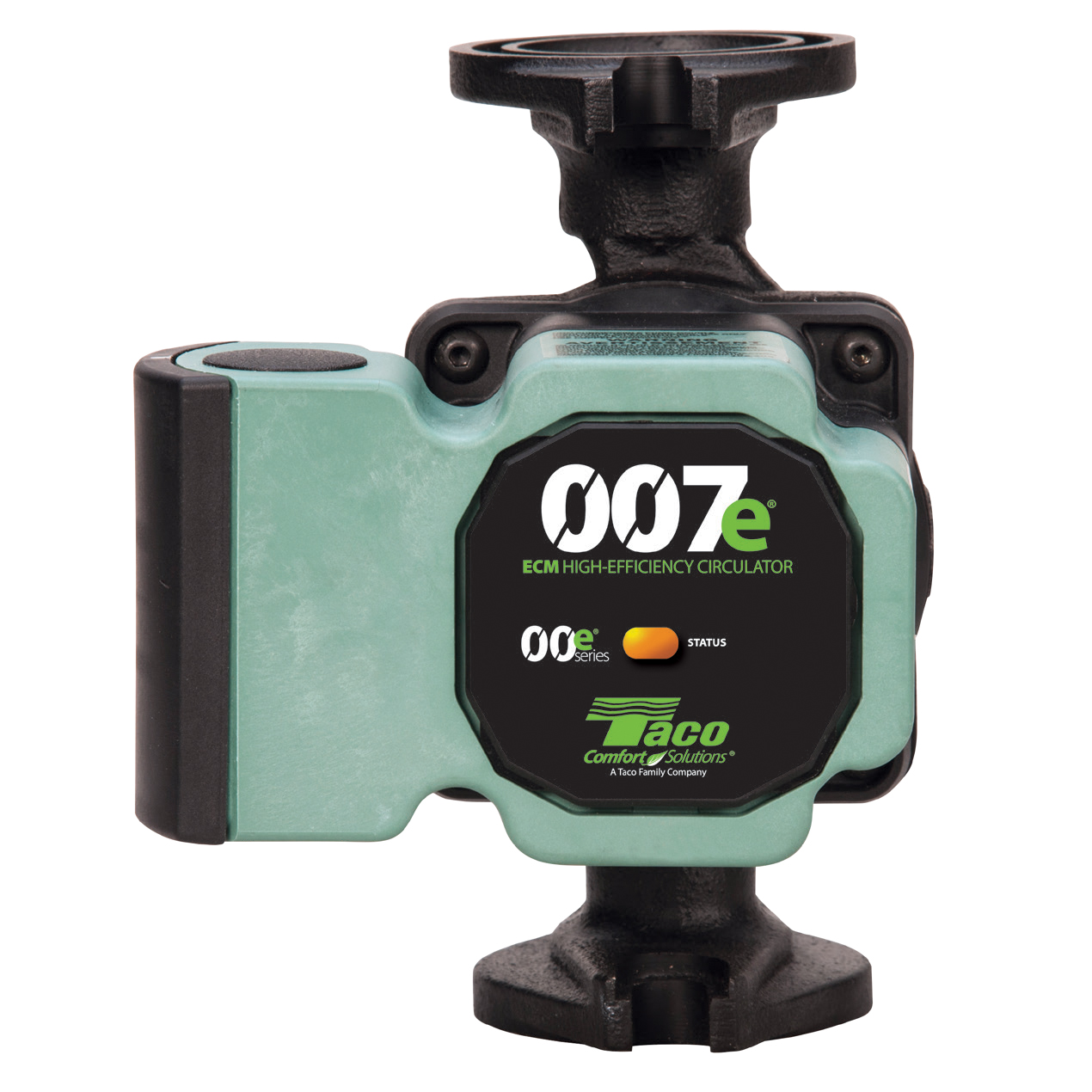

The Taco 007e® is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is ideal for hydronic systems zoned with circulators or zone valves, or used on potable water systems for domestic water recirculation. The 007e delivers the performance equivalent of the classic 007, plus the reliability and easy installation that made the 00® famous. Install it, forget it.®

  • Features
  • Includes
  • The 007e is not suitable for chilled water systems.
  • 10’ Shut-off head, 16 gpm max flow
  • ECM performance equivalent to the legendary 007 circulator
  • High-efficiency ECM motor uses up to 85% less electricity
  • SureStart ® automatic unblocking and air purging mode
  • BIO Barrier® protects pump from system contaminants (Cast Iron only)
  • Green Mode active system monitoring and automatic power optimization
  • Nut-grabber feature on flanges for easier fit-up
  • Dual electrical knockouts, 6” stranded wire leads included for easy wiring
  • Double insulated — No ground wire required
  • Whisper-quiet operation
  • Multi-color LED showing operating mode and error code diagnostics
Integral Flow Check (IFC®)
