Taco®

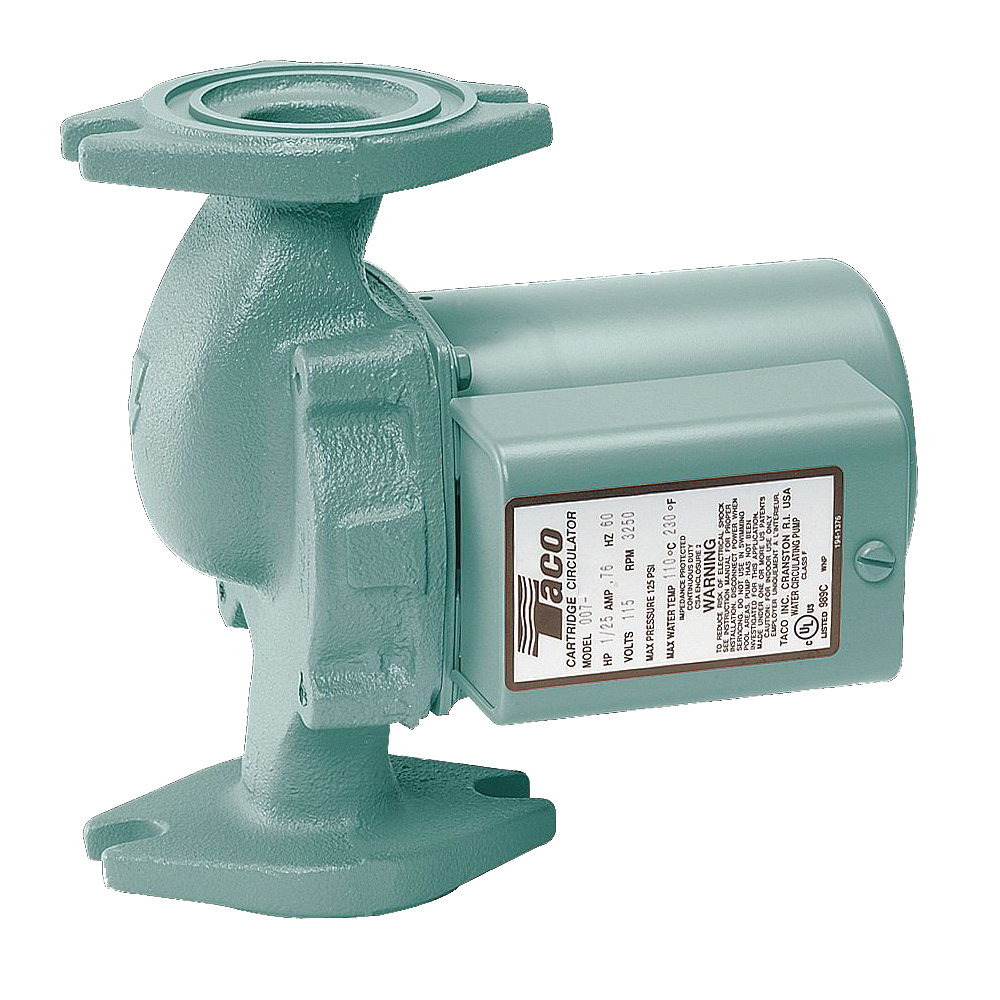

007-F5-5 007 Circulator Pump, Cast Iron, Rotated Flanges, 1/25 HP

TAC007F55 MFG #: 007-F5-5
007-F5-5 007 Circulator Pump, Cast Iron, Rotated Flanges, 1/25 HP
  • Flow Rate: 23 gpm
  • Voltage Rating: 115 VAC
  • Amperage: .74 A
  • Connection Size: 3/4, 1, 1-1/4, 1-1/2 in
  • Connection Type: Rotated Flange
  • Dimensions: 6-3/8 in H x 6-1/2 in W x 4-3/4 in D
  • Frequency Rating: 60 Hz
  • Manufacturer: TACO
  • Manufacturer #: 007-F5-5
  • Material: Cast Iron
  • Max Head: 10 ft
  • Phase: 1
  • Pressure Rating: 125 psi
  • Series: 007
  • Speed: 3250 rpm
  • Temperature Rating: 230 deg F
The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems. Available in Cast Iron or Stainless Steel construction with universal flanged connections. The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit. Ideal for a wide range of applications.

  • Features
  • Standard High Capacity Output-Compact Design
  • Quiet, Efficient Operation
  • Direct Drive-Low Power Consumption
  • Unique Replaceable Cartridge Design-Field Serviceable
  • Self Lubricating
  • No Mechanical Seal
  • Unmatched Reliability-Maintenance Free
