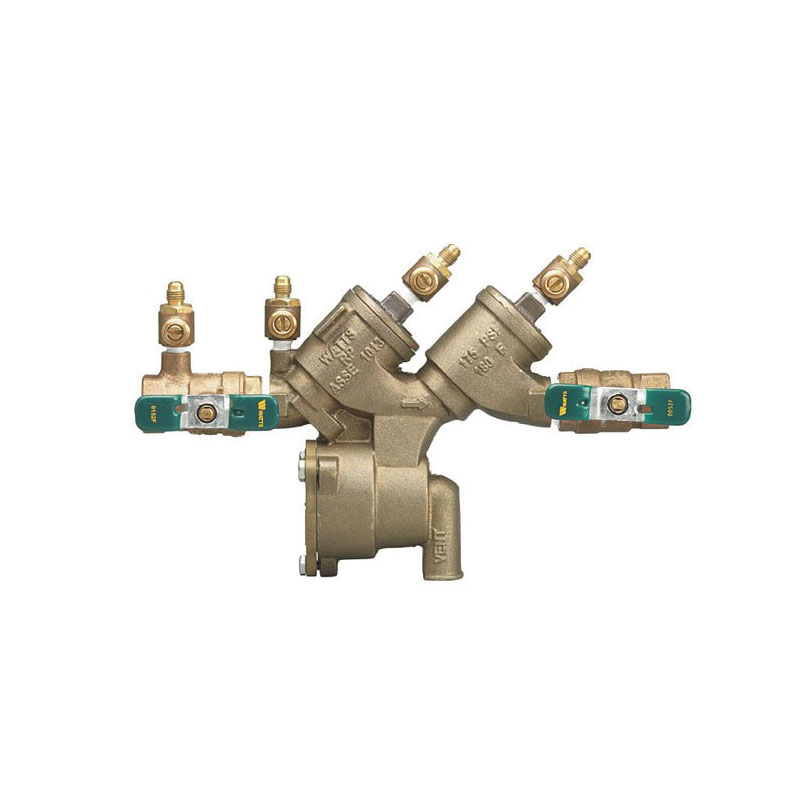

0062775 919, 919-QT Reduced Pressure Zone Assembly, Quarter-Turn Resilient Seated Ball Valve, Bronze Body

WAT919QTH MFG #: 0062775
  • Ball Valve / Gate Valve Type: Quarter-Turn Resilient Seated Ball Valve
  • Body Material: Bronze
  • Domestic / Import: Domestic
  • End Style: NPT
  • Nominal Size: 1-1/4 in
  • Dimensions: 18-1/8 in L x 11-7/16 in H
  • Manufacturer: Watts Water Technologies
  • Manufacturer #: 0062775
  • Port Type: Full
  • Pressure Rating: 175 psi
  • Series: 919
  • Temperature Rating: 33 to 180 degF
Series 919 Reduced Pressure Zone Backflow Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross-connections or for containment at the service line entrance. This series features two poppet style check valves, replaceable check seats, with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.

WATTS® GoldenEagle® Reduced Pressure Zone Assembly, Series: 919, 1-1/4 in Nominal, NPT, 175 psi, 33 to 180 deg F, Quarter-Turn Resilient Seated Ball Valve Ball Valve/Gate Valve, Full Port, Bronze Body, 18-1/8 in L x 11-7/16 in H, Domestic
  • Features
  • Product Videos
  • Separate access covers for the check valves and relief valve for easy of maintenance
  • Top entry all check internals easily accessible
  • All rubber elastomers of chloramine resistant material
  • Check valve poppet assemblies are fully guided by innovative plastic seat guide
  • Replaceable push-in check valve and relief valve seat eliminates threads from the water way
  • EZ twist relief valve cover with quarter-turn locking joint captures the spring load during repair to facilitate disassembly
  • Innovative check valve plastic cover bushing provides trouble free guiding of the check valve poppet
  • Bottom mounted relief valve provides reduced installation clearances
  • Compact space saving design
  • Top mounted test cocks for easy in testing and reduced installation clearances
  • Silicone rubber disc
  • Replaceable polymer check seats
  • Stainless steel cover bolts
  • Shut-off valve with lever handles
