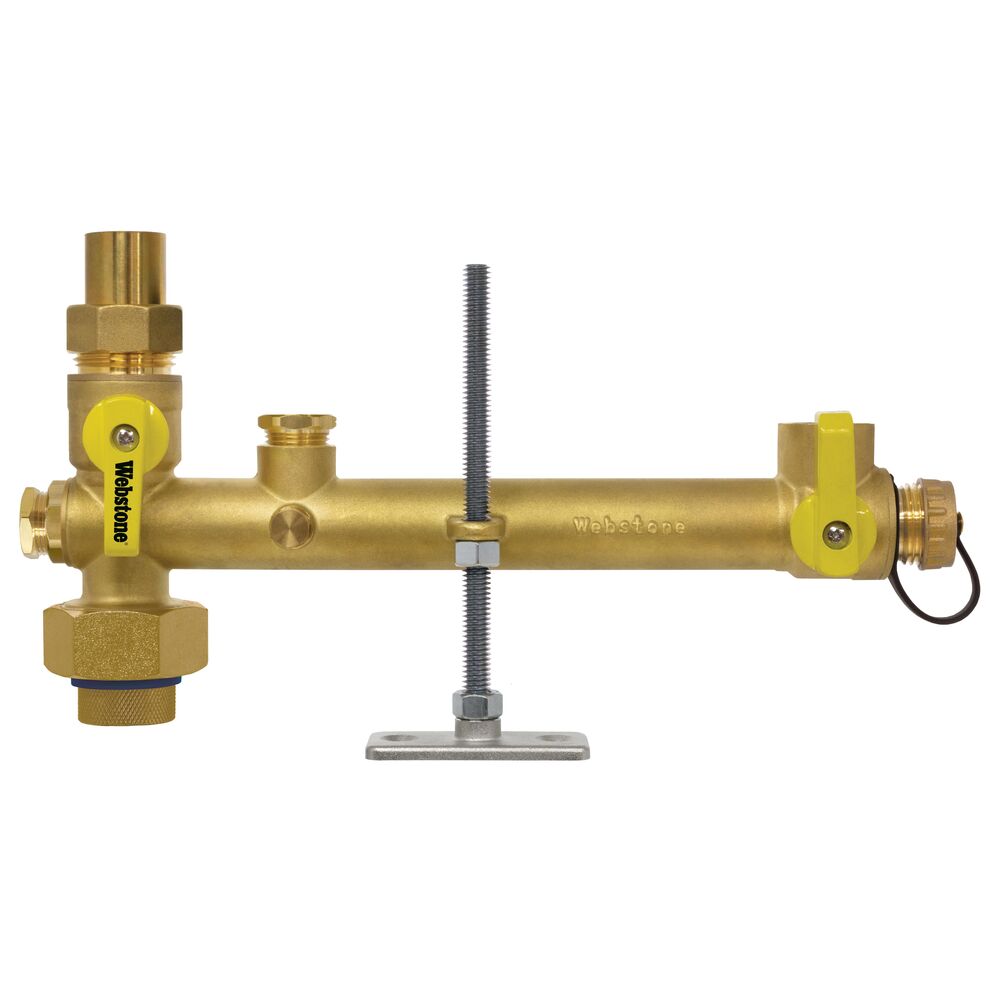

- Pro-Pal Water Heater Supply Valve, w/ Expansion Tank Service, Full Port DZR Brass Ball w/ Union End, w/ 3/4 Expansion Tank Port & Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2", 1/2" & 1/8"), Includes Mounting Hardware
Webstone, H-52653W, Valve, Series: H-X265, 3/4 in Nominal, FIP Union x SWT x FIP x Hose End Style, 150 psi Pressure, 180 deg F, Full Port, Media: Water, Quarter Turn Handle Actuator, Stainless Steel Ball, Lead Free DZR Brass Body, PTFE Trim, EPDM Softgoods, 2.44 in H x 5.12 in W x 12.2 in L Dimensions, Import
- Simplifies storage tank water heater installations
- Integrated valves isolate the water supply and expansion tank for service
- 1/2 in FIP cold water tapping for Water Heater Tempering Valve
- 1/2 in FIP port for installation of vacuum relief valve and 1/8 in plugged gauge port
- Compact version available if expansion tank is not required
- Saves 135 min, Replaces 16 Components, Eliminates 15 Leakpaths
- This valve is actuated by a blowout proof stem
- Double O-ring Stem Seals
- Models available to satisfy all state and federal low-lead laws
- Compatible with 3/4 in MIP expansion tanks up to 5 gal
- Support Hardware
- Body MaterialLead Free DZR BrassDomestic / ImportImportEnd StyleFIP Union x SWT x FIP x HoseNominal Size3/4 inPort TypeFullSoftgoods MaterialEPDMActuator TypeQuarter Turn HandleBall MaterialStainless SteelDimensions2.44 in H x 5.12 in W x 12.2 in LManufacturerNIBCO Inc.Manufacturer #H-52653WMediaWaterPressure Rating150 psiSeriesH-X265Temperature Rating180 deg FTrim MaterialPTFE
