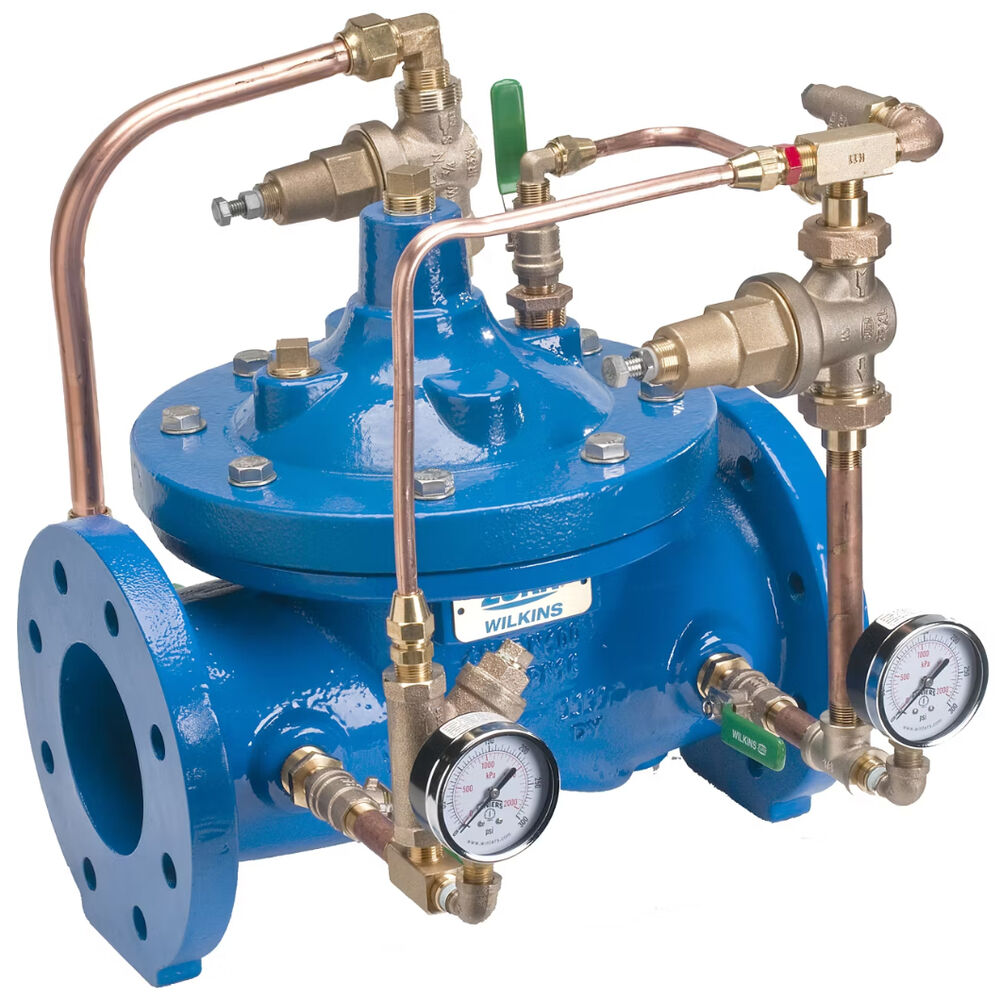

Zurn® Wilkins 212-ZW209BP Globe Style Pressure Reducing Valve w/ Low Flow Bypass, 2-1/2", Flanged, 250 psi, 20 to 300 gpm, Ductile Iron Body
Sign In to View Pricing & Availability
- The ZW209BP Pressure Reducing Valve with Low Flow Bypass prevents chattering of the main valve specifically from 0 to 10 gpm. Standard features ease maintenance and repair and provide the lowest total cost of ownership.
Zurn® Wilkins Pressure Reducing Valve, Lead Free Globe Style, Series: ZW209BP, 2-1/2 in Nominal, Flanged, 250 psi Pressure, 150 lb Pressure Class, 140 deg F, 20 to 300 gpm, Full Port, Media: Water, 11 in Inlet to Outlet Length, 7-3/8 in Top to Inlet Center, Ductile Iron Body, Buna-N Rubber Disc/Stainless Steel Disc Guide/Seat/Stem/Spring Trim, Nylon Reinforced Buna-N Diaphragm Softgoods, Epoxy Coated, Blue, Domestic
- Holds downstream pressure to a constant value
- Pressure gauges, wye strainer, isolation valves, and epoxy coating come standard to simplify start-up and maintenance
- Ideal for accommodating both high and low flow rates
- 15 to 150 psi PRXL pilot
- Copper Tube, Bronze Fittings and PRXL Pilot
- Body MaterialDuctile IronDomestic / ImportDomesticEnd StyleFlangedFlow Rate20 to 300 gpmNominal Size2-1/2 inPressure Range250 psiColorBlueFinishEpoxy CoatedInlet to Outlet Length11 inManufacturerZurn WaterManufacturer #212-ZW209BPMediaWaterPort TypeFullPressure Class150 LbSeriesZW209BPSoftgoods MaterialNylon Reinforced Buna-N DiaphragmTemperature Rating140 deg FTop to Inlet Center7-3/8 inTypeGlobe Style
