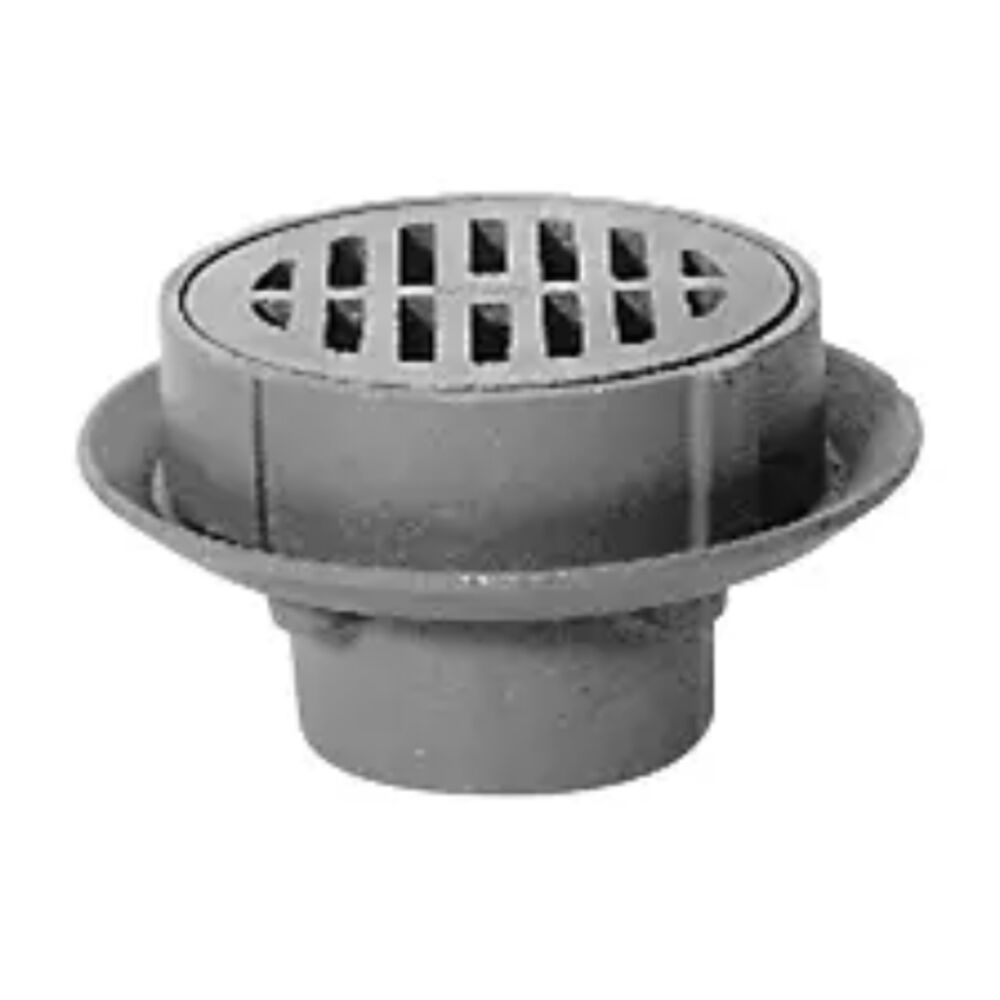

Z507-4NH-Y Zurn® 7" Medium-Duty Area Drain w/ Sediment Bucket, 4" No-Hub Outlet, Cast Iron, Dura-Coated
Sign In to View Pricing & Availability
- The Zurn® Z507 7 in area drain has a Dura-Coated cast iron body with bottom outlet, seepage pan and combination membrane flashing clamp for medium-duty cast iron deep flange slotted grate.
Zurn® Area Drain, Medium Duty, Series: Z507, 4 in Outlet, No-Hub, Cast Iron Drain, Dura Coated, 9 in Dia x 3-11/16 in H
- Patented AR spool for replacements of Zurn® 475V Ductile Iron n-Pattern Series, as well as unique customer-modified installations, provide additional drop-in replacement options for every installation setting
- 9 sq-in grate open area
- Bottom Outlet, Seepage Pan, Combination Membrane Flashing Clamp, Frame, Sediment Bucket and 7 in Dia Dura-Coated Cast Iron Top
- Connection TypeNo-HubDrain MaterialCast IronDimensions9 in Dia x 3-11/16 in HFinishDura CoatedManufacturerZurn WaterManufacturer #Z507-4NH-YOutlet Size4 inSeriesZ507TypeMedium Duty
