Furnaces

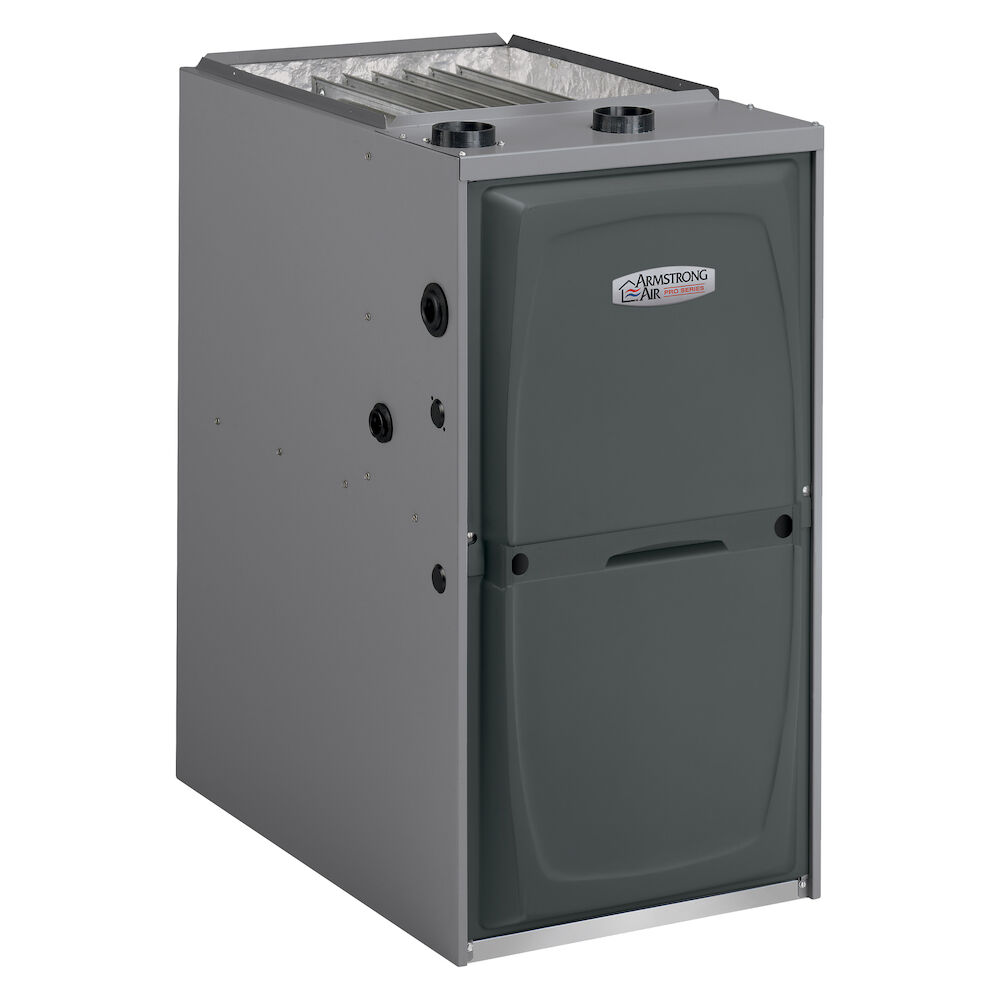

A97USMV
Armstrong Air Pro Series

A97USMV

  • Modulating Heat
  • PRO Series™ System
  • Variable Speed Fan Motor
  • Comfort Sync® Enabled
  • 97% AFUE
  • Quiet Combustion™ Technology
  • Advanced Heat Exchanger
  • EHX™ Technology

ARMSTRONG AIR A97USMV 97% AFUE - PRO SERIES™ GAS FURNACES

UPFLOW
Item # Model Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal* Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA97USMV070B12S A97USMV070B12S 66,000 64,000 97.0% 3 Tons 138
ARAA97USMV090C12S A97USMV090C12S 88,000 85,000 97.0% 3 Tons 155
ARAA97USMV090C16S A97USMV090C16S 88,000 85,000 97.0% 4 Tons 165
ARAA97USMV090C20S A97USMV090C20S 88,000 85,000 97.0% 5 Tons 165
ARAA97USMV110C20S A97USMV110C20S 110,000 106,000 97.0% 5 Tons 175
ARAA97USMV135D20S A97USMV135D20S 132,000 127,000 97.0% 5 Tons 190
DOWNFLOW
Item # Model Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal* Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA97DSMV070B12S A97DSMV070B12S 66,000 64,000 97.0% 3 Tons 140
ARAA97DSMV090C16S A97DSMV090C16S 88,000 85,000 97.0% 4 Tons 165
ARAA97DSMV090C20S A97DSMV090C20S 88,000 85,000 97.0% 5 Tons 165
ARAA97DSMV110C20S A97DSMV110C20S 110,000 107,000 97.0% 5 Tons 174

Mobile/tablet users scroll table sideways to view all columns.

A96US2V
Armstrong Air Pro Series

A96US2V

  • 2 Stage Heating
  • PRO Series™ System
  • Variable Speed Fan Motor
  • Comfort Sync® Enabled
  • 96% AFUE
  • Quiet Combustion™ Technology
  • Advanced Heat Exchanger
  • EHX™ Technology

ARMSTRONG AIR A96US2V 96% AFUE - PRO SERIES™ TWO STAGE GAS FURNACES

UPFLOW
1st Stage 2nd Stage
Item # Model Input (Btuh) Output* (Btuh) Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal
Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA96US2V045B12S A96US2V045B12S 29,000 28,000 44,000 42,000 96.0 3 130
ARAA96US2V070B12S A96US2V070B12S 43,000 41,000 66,000 62,000 96.0 3 138
ARAA96US2V090C12S A96US2V090C12S 57,000 55,000 88,000 84,000 96.0 3 154
ARAA96US2V090C16S A96US2V090C16S 57,000 55,000 88,000 85,000 96.0 4 165
ARAA96US2V090C20S A96US2V090C20S 57,000 55,000 88,000 85,000 96.0 5 166
ARAA96US2V110C16S A96US2V110C16S 72,000 70,000 110,000 105,000 96.0 4 173
ARAA96US2V110C20S A96US2V110C20S 72,000 70,000 110,000 106,000 96.0 5 174
ARAA96US2V135D20S A96US2V135D20S 88,000 84,000 132,000 126,000 96.0 5 188
DOWNFLOW
1st Stage 2nd Stage
Item # Model Input (Btuh) Output* (Btuh) Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal
Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA96DS2V045B12S A96DS2V045B12S 29,000 28,000 44,000 43,000 96.0 3 131
ARAA96DS2V070B16S A96DS2V070B16S 43,000 42,000 66,000 64,000 96.0 4 136
ARAA96DS2V090C20S A96DS2V090C20S 57,000 56,000 88,000 85,000 96.0 5 164
ARAA96DS2V110C20S A96DS2V110C20S 72,000 70,000 110,000 106,000 96.0 5 176

Mobile/tablet users scroll table sideways to view all columns.

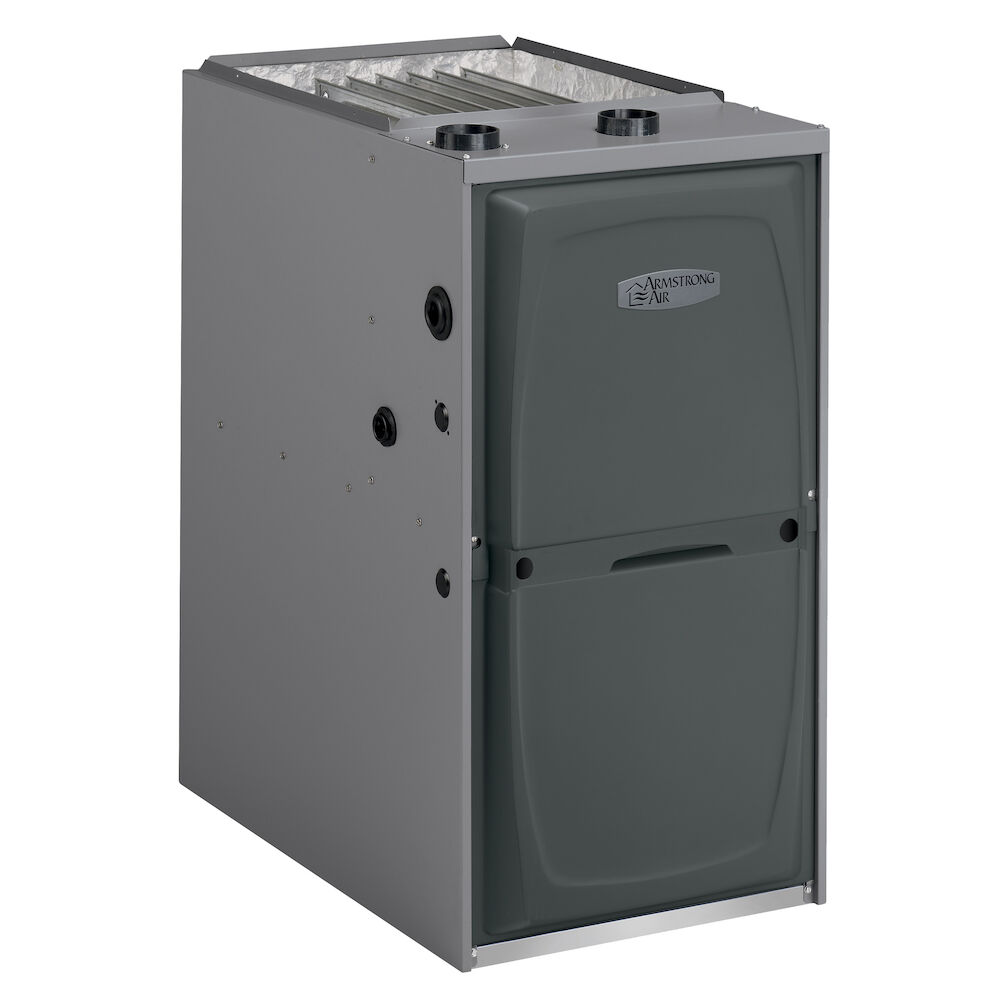

A96UH2E
Armstrong Air

A96UH2E

  • 2 Stage Heating
  • Constant Torque Motor
  • ENERGY STAR® Rating
  • 96% AFUE
  • Advanced Heat Exchanger
  • EHX™ Technology

ARMSTRONG AIR A96UH2E 96% AFUE - TWO STAGE GAS FURNACES

UPFLOW
1st Stage 2nd Stage
Item # Model Input (Btuh) Output* (Btuh) Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal
Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA96UH2E030B08S A96UH2E030B08S 20,000 19,000 30,000 29,000 2 96.0 130
ARAA96UH2E045B12S A96UH2E045B12S 29,000 28,000 44,000 42,000 3 96.0 130
ARAA96UH2E070B12S A96UH2E070B12S 43,000 41,000 66,000 62,000 3 96.0 138
ARAA96UH2E090C16S A96UH2E090C16S 57,000 55,000 88,000 85,000 4 96.0 166
ARAA96UH2E110C20S A96UH2E110C20S 72,000 70,000 110,000 105,000 5 96.0 174
DOWNFLOW
1st Stage 2nd Stage
Item # Model Input (Btuh) Output* (Btuh) Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal
Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA96DF2E045B12S A96DF2E045B12S 29,000 28,000 44,000 43,000 3 96.0 131
ARAA96DF2E070B16S A96DF2E070B16S 43,000 42,000 66,000 64,000 4 96.0 138
ARAA96DF2E090C16S A96DF2E090C16S 57,000 56,000 88,000 85,000 5 96.0 166
ARAA96DF2E110C20S A96DF2E110C20S 72,000 70,000 110,000 106,000 5 96.0 176

Mobile/tablet users scroll table sideways to view all columns.

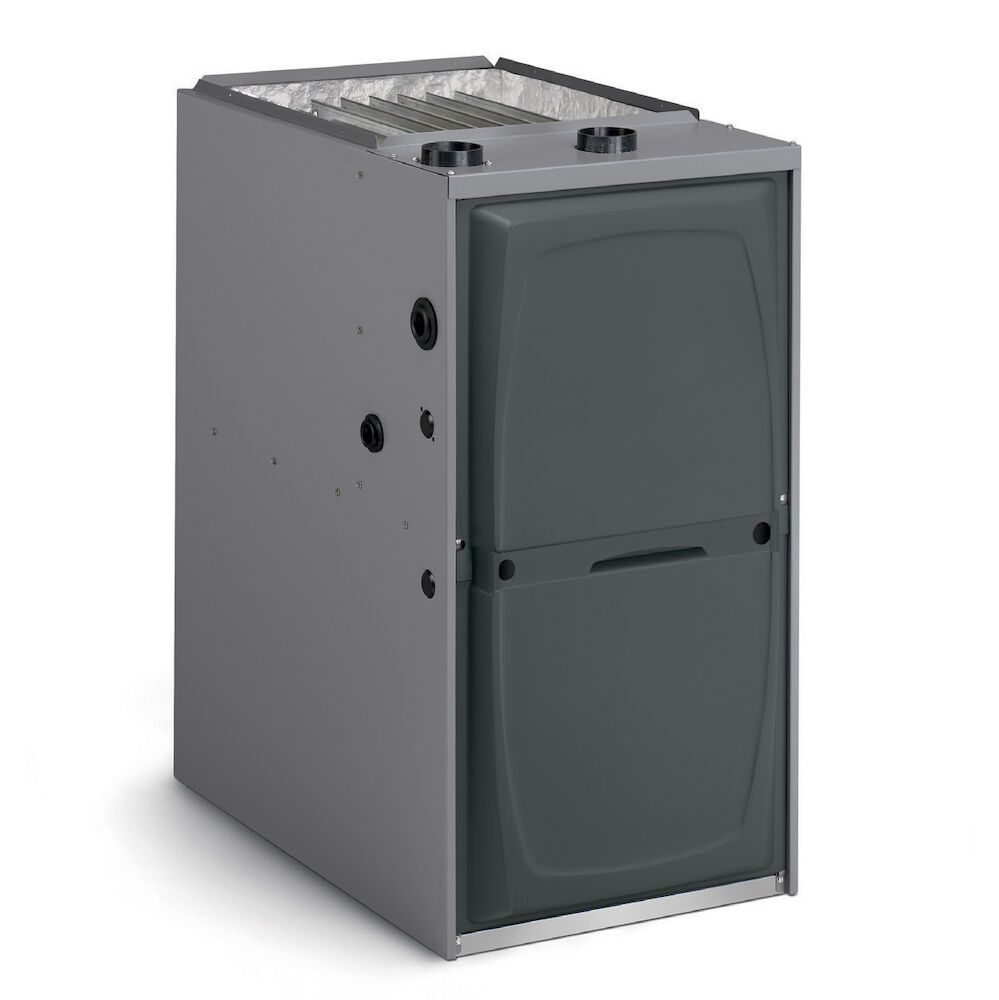

A95UH1E
Armstrong Air

A95UH1E

  • 95% AFUE
  • Constant Torque Motor
  • ENERGY STAR® Certified
  • Quiet Combustion™ Technology
  • Advanced Heat Exchanger
  • EHX™ Technology

ARMSTRONG AIR A95UH1E 95% AFUE - GAS FURNACES

UPFLOW
Item # Model Input (Btuh) Output (Btuh) AFUE (ICS) Nominal Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA95UH1E030B08S A95UH1E030B08S 30,000 28,000 95.0% 1-1/2 - 3 129
ARAA95UH1E045B12S A95UH1E045B12S 44,000 42,000 95.0% 1-1/2 - 3 129
ARAA95UH1E070B12S A95UH1E070B12S 66,000 64,000 95.0% 1-1/2 - 3 136
ARAA95UH1E090C16S A95UH1E090C16S 88,000 85,000 95.0% 2-1/2 - 4 160
ARAA95UH1E110C20S A95UH1E110C20S 110,000 106,000 95.0% 3 - 5 170
ARAA95UH1E135D20S A95UH1E135D20S 132,000 128,000 95.0% 3-1/2 - 5 187
DOWNFLOW
Item # Model Input (Btuh) Output (Btuh) AFUE (ICS) Nominal Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA95DF1E045B12S A95DF1E045B12S 44,000 42,000 95.0% 1-1/2 - 3 131
ARAA95DF1E070B16S A95DF1E070B16S 66,000 64,000 95.0% 2-1/2 - 4 146
ARAA95DF1E090C16S A95DF1E090C16S 88,000 85,000 95.0% 2-1/2 - 4 162
ARAA95DF1E110C20S A95DF1E110C20S 110,000 106,000 95.0% 3 - 5 174

Mobile/tablet users scroll table sideways to view all columns.

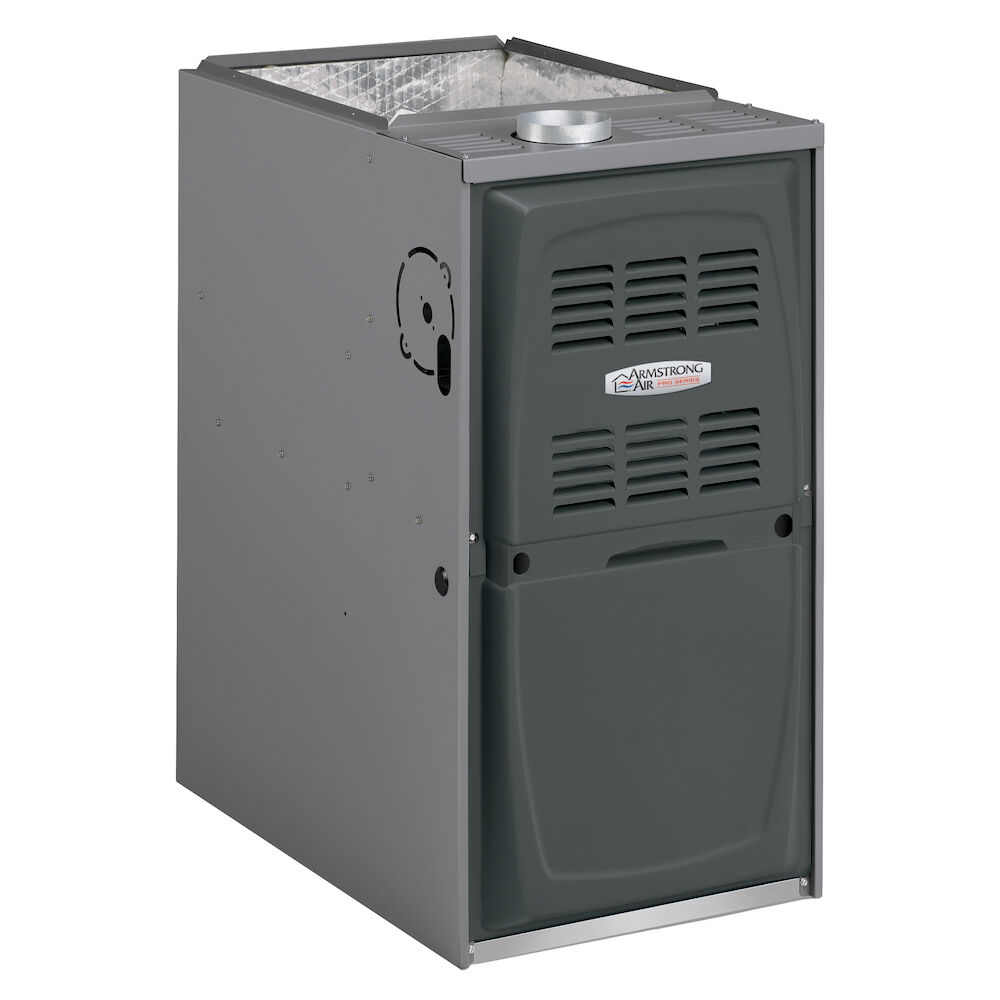

A80US2V
Armstrong Air Pro Series

A80US2V

  • PRO Series™
  • 80% AFUE
  • Constant Torque Motor
  • Two Stage Heating
  • Variable Speed Fan Motor
  • Comfort Sync® A3 Compatable
  • EHX™ Technology
  • Quiet Combustion™ Technology

ARMSTRONG AIR A80US2V 80% AFUE - PRO SERIES™ TWO STAGE GAS FURNACES

UPFLOW
Item # Model Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA80US2V070A12 A80US2V070A12 66,000 52,000 80.0% 3 tons 128
ARAA80US2V090B12 A80US2V090B12 88,000 70,000 80.0% 3 tons 143
ARAA80US2V090B16 A80US2V090B16 88,000 70,000 80.0% 4 tons 154
ARAA80US2V090C20 A80US2V090C20 88,000 70,000 80.0% 5 tons 173
ARAA80US2V110C20 A80US2V110C20 110,000 87,000 80.0% 5 tons 181
ARAA80US2V135D20 A80US2V135D20 132,000 105,000 80.0% 5 tons 199
DOWNFLOW
Item # Model Input (Btuh) Output* (Btuh) AFUE (ICS) Nominal Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA80DS2V070A12 A80DS2V070A12 66,000 52,000 80.0% 3 tons 130
ARAA80DS2V090B16 A80DS2V090B16 88,000 69,000 80.0% 4 tons 153
ARAA80DS2V110C20 A80DS2V110C20 110,000 87,000 80.0% 5 tons 173

Mobile/tablet users scroll table sideways to view all columns.

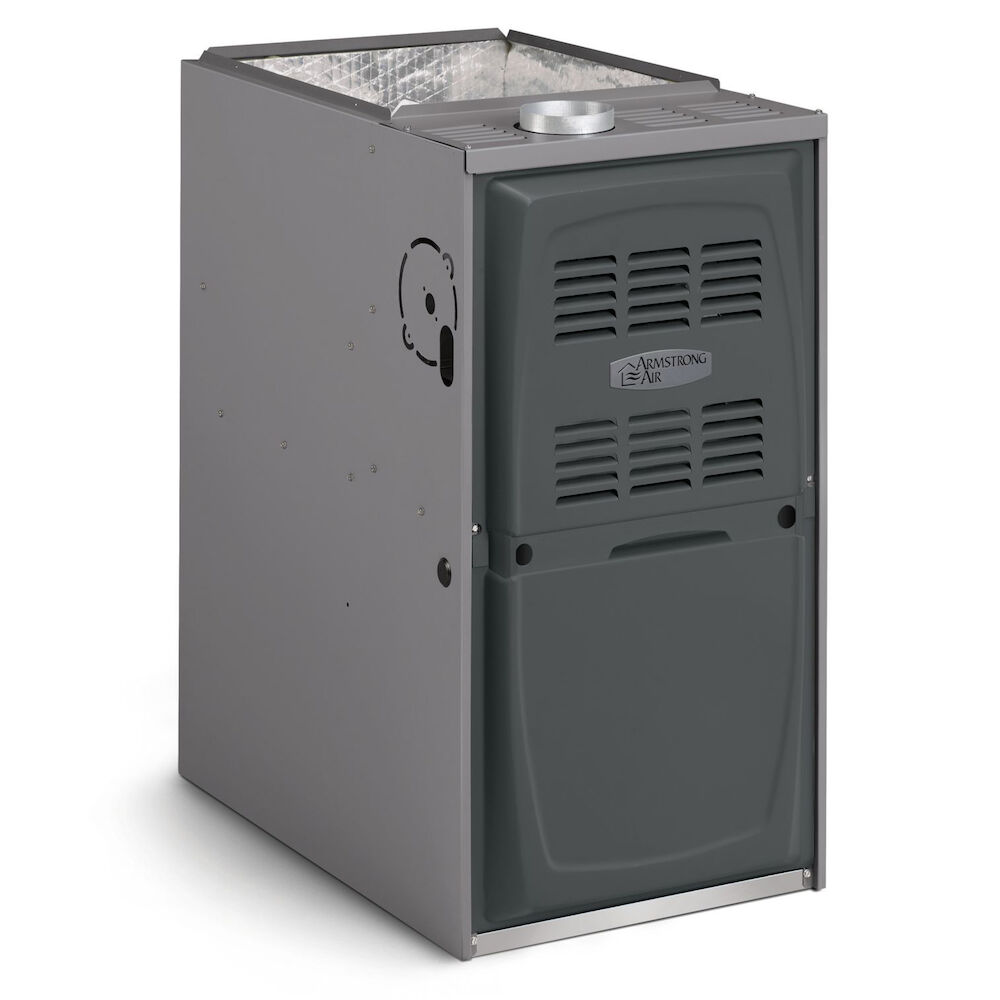

A80UH1E
Armstrong Air

A80UH1E

  • 80% AFUE
  • Constant Torque Motor
  • EHX™ Technology
  • Quiet Combustion™ Technology

ARMSTRONG AIR A80UH1E 80% AFUE - GAS FURNACES

UPFLOW
Item # Model Input (Btuh) Output (Btuh) AFUE (ICS) Nom. Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA80UH1E045A12 A80UH1E045A12 44,000 36,000 80.00% 1-1/2 - 3 111
ARAA80UH1E070A12 A80UH1E070A12 66,000 53,000 80.00% 1-1/2 - 3 111
ARAA80UH1E070B12 A80UH1E070B12 66,000 53,000 80.00% 1-1/2 - 3 127
ARAA80UH1E090B16 A80UH1E090B16 88,000 72,000 80.00% 2-1/2 - 4 142
ARAA80UH1E090C20 A80UH1E090C20 88,000 72,000 80.00% 3 - 5 152
ARAA80UH1E110C20 A80UH1E110C20 110,000 90,000 80.00% 4 - 5 160
ARAA80UH1E135D20 A80UH1E135D20 132,000 107,000 80.00% 4 - 5 178
DOWNFLOW
Item # Model Input (Btuh) Output (Btuh) AFUE (ICS) Nom. Cooling
Capacity		 Approx. Shipping
Weight (lbs.)
ARAA80DF1E045A12 A80DF1E045A12 44,000 36,000 80.00% 2 - 3 113
ARAA80DF1E070A12 A80DF1E070A12 66,000 54,000 80.00% 2 - 3 119
ARAA80DF1E070B12 A80DF1E070B12 66,000 54,000 80.00% 2 - 3 128
ARAA80DF1E090B16 A80DF1E090B16 88,000 72,000 80.00% 3 - 4 140
ARAA80DF1E110C20 A80DF1E110C20 110,000 90,000 80.00% 4 - 5 160

Mobile/tablet users scroll table sideways to view all columns.

Air Conditioners

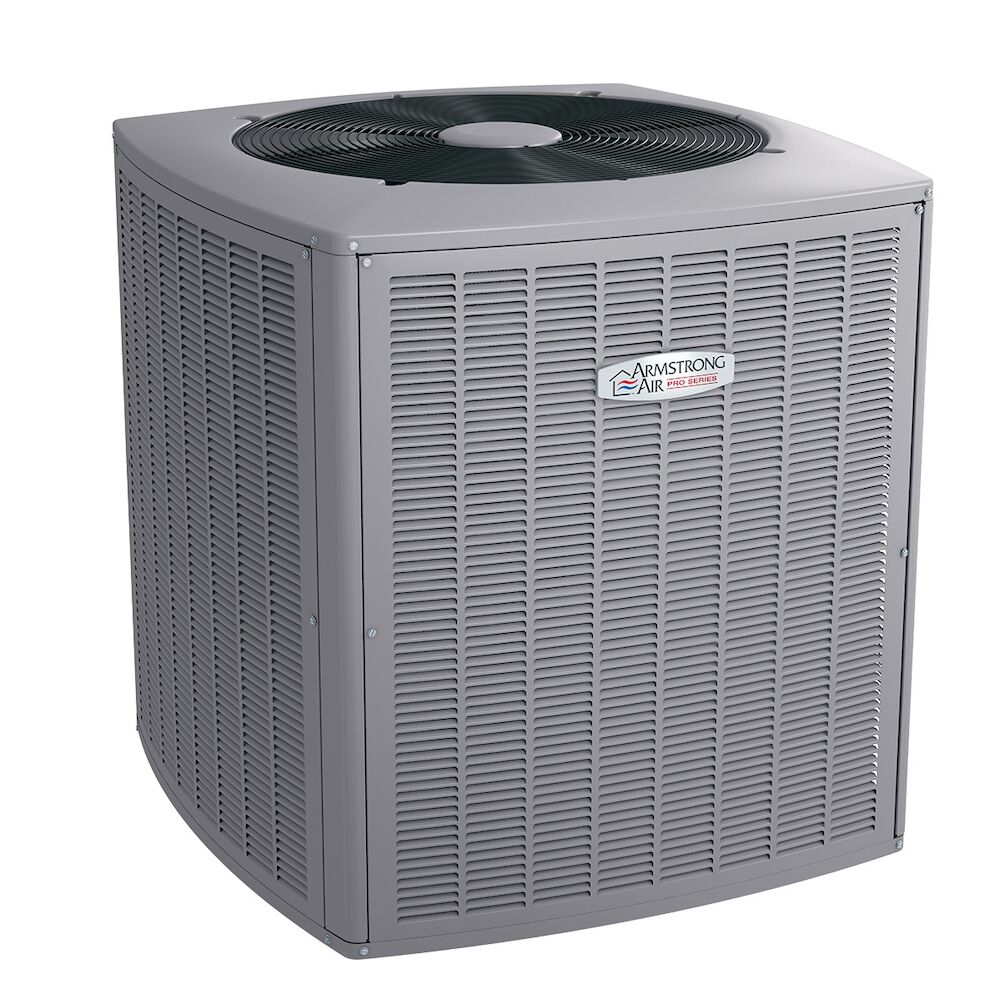

4SCU20LX
Armstrong Air Pro Series

4SCU20LX

  • PRO Series™
  • Comfort Sync® A3 Compatable
  • ENERGY STAR®
  • True Variable-Capacity Cooling
  • Integrated Compressor Protection
  • MHT™ Technology

ARMSTRONG AIR 4SCU20LX 20 SEER PRO SERIES™ AIR CONDITIONERS

Dimensions (inch) Refrigerant Line Size Outdoor Unit Connection
Item # Model Tons Width Depth Height TXV Suction Liquid Suction Liquid Weight (lbs.)
ARA4SCU20LX124P 4SCU20LX124P 2 37.75 35.75 37.50 H4TXV01 3/4 3/8 3/4 3/8 243
ARA4SCU20LX136P 4SCU20LX136P 3 37.75 35.75 37.50 H4TXV02 7/8 3/8 7/8 3/8 245
ARA4SCU20LX148P 4SCU20LX148P 4 37.75 35.75 43.75 H4TXV03 7/8 3/8 7/8 3/8 287
ARA4SCU20LX160P 4SCU20LX160P 5 37.75 35.75 43.75 H4TXV03 1 1/8 3/8 7/8 ** 3/8 321

Mobile/tablet users scroll table sideways to view all columns.

4SCU16LS
Armstrong Air Pro Series

4SCU16LS

  • PRO Series™
  • Two-Stage Scroll Compressor
  • Comfort Sync® A3 Compatable
  • ENERGY STAR® Certified
  • Up to 16 SEER
  • Integrated Compressor Protection
  • MHT™ Technology

ARMSTRONG AIR 4SCU16LS UP TO 16 SEER PRO SERIES™ AIR CONDITIONERS

Dimensions (inch)
Item # Model Tons Width Depth Height Indoor TXV Refrigerant
Line Size		 Liquid Outdoor Unit
Connection		 Liquid Weight
(lbs.)
ARA4SCU16LS124P3 4SCU16LS124P 2 29.25 31.25 43.75 A4TXV01/H4TXV01 3/4 3/8" 3/4 3/8 212
ARA4SCU16LS136P3 4SCU16LS136P 3 29.25 31.25 29.75 A4TXV01/H4TXV02 7/8 3/8" 7/8 3/8 245
ARA4SCU16LS148P3 4SCU16LS148P 4 29.25 31.25 37.75 A4TXV02/H4TXV02 7/8 3/8" 7/8 3/8 287
ARA4SCU16LS160P3 4SCU16LS160P 5 35.75 37.75 43.75 A4TXV02/H4TXV03 1 1/8 3/8" 7/8 3/8 332

Mobile/tablet users scroll table sideways to view all columns.

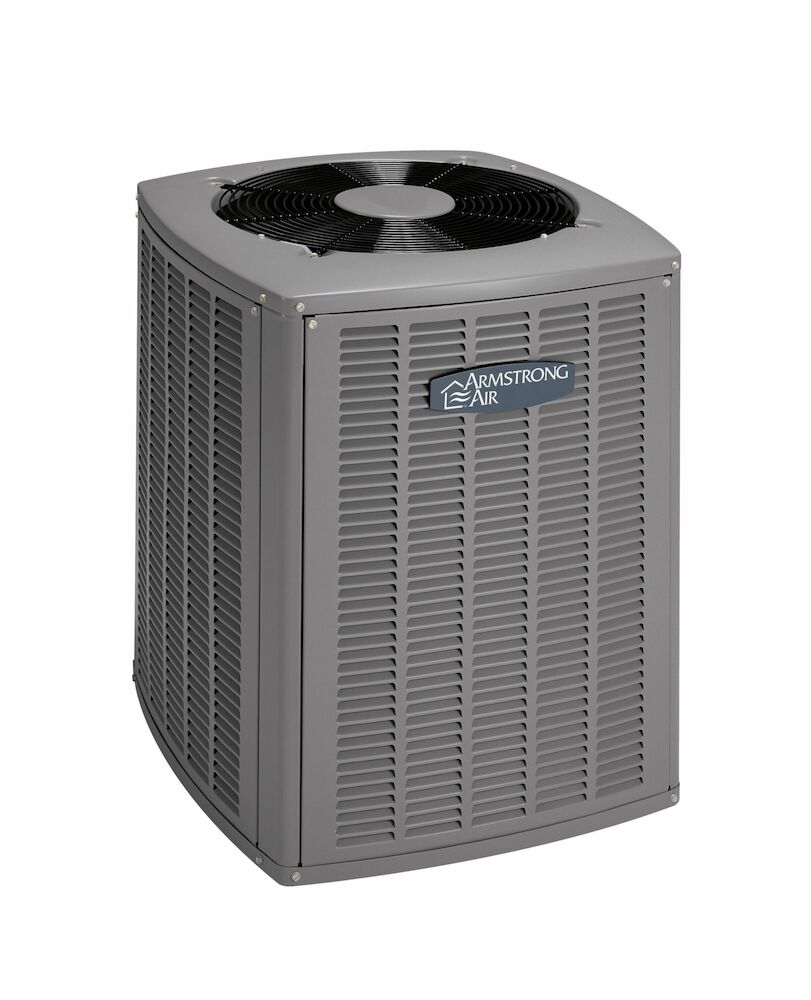

4SCU16LE
Armstrong Air

4SCU16LE

  • ENERGY STAR® Certified
  • Up to 16 SEER
  • MHT™ Technology

ARMSTRONG AIR 4SCU16LE UP TO 16 SEER AIR CONDITIONERS

Dimensions (inch)
Item # Model Tons Width Depth Height Indoor TXV Refrigerant
Line Size		 Liquid Outdoor Unit
Connection		 Liquid Weight
(lbs.)
ARA4SCU16LE118P50 4SCU16LE118P 1.5 24.75 26.75 29.75 H4TXV01 3/4 3/8" 3/4 3/8" 155
ARA4SCU16LE124P50 4SCU16LE124P 2 29.38 31.25 29.75 H4TXV01 3/4 3/8" 3/4 3/8" 171
ARA4SCU16LE130P50 4SCU16LE130P 2.5 29.38 31.25 37.75 H4TXV01 3/4 3/8" 3/4 3/8" 187
ARA4SCU16LE136P50 4SCU16LE136P 3 29.38 31.25 29.75 H4TXV02 7/8 3/8" 7/8 3/8" 205
ARA4SCU16LE142P50 4SCU16LE142P 3.5 29.38 31.25 37.75 H4TXV02 7/8 3/8" 7/8 3/8" 234
ARA4SCU16LE148P50 4SCU16LE148P 4 29.38 31.25 37.75 H4TXV02 7/8 3/8" 7/8 3/8" 255
ARA4SCU16LE160P50 4SCU16LE160P 5 35.75 37.75 43.75 H4TXV03 1 1/8 3/8" 7/8 3/8" 284

Mobile/tablet users scroll table sideways to view all columns.

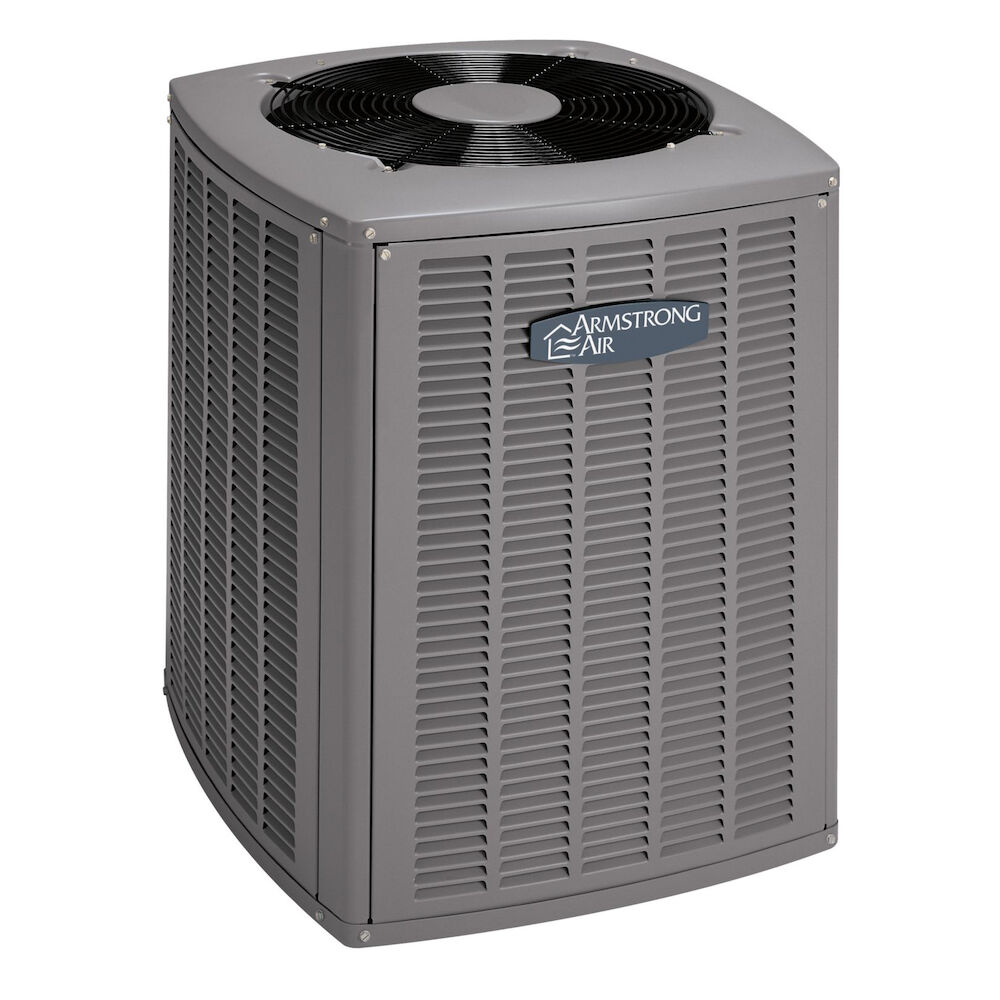

4SCU13LE
Armstrong Air

4SCU13LE

  • Up to 14 SEER
  • MHT™ Technology
  • *Sealed Contactor with Lugs
  • *Removable PVC-coated Wire Fan Discharge Grill
  • *Factory Installed High and Low Pressure Switches
  • *Benefits above 4SCU13LB

ARMSTRONG AIR 4SCU13LE UP TO 14 SEER AIR CONDITIONERS

Dimensions (inch)
Item # Model Tons Width Depth Height Indoor TXV Refrigerant
Line Size		 Liquid Outdoor Unit
Connection		 Liquid Weight
(lbs.)
ARA4SCU13LE118P5 4SCU13LE118P 1.5 24.75 26.75 25.75 H4TXV01 5/8 or 3/4* 3/8 or 1/4* 5/8 3/8 140
ARA4SCU13LE124P5 4SCU13LE124P 2 24.75 26.75 25.75 H4TXV01 5/8 or 3/4* 3/8 or 1/4* 5/8 3/8 137
ARA4SCU13LE130P5 4SCU13LE130P 2.5 24.75 26.75 29.75 H4TXV01 3/4 3/8 3/4 3/8 149
ARA4SCU13LE136P5 4SCU13LE136P 3 24.75 26.75 29.75 H4TXV02 3/4 3/8 3/4 3/8 157
ARA4SCU13LE142P5 4SCU13LE142P 3.5 29.38 31.25 29.75 H4TXV02 3/4 3/8 3/4 3/8 201
ARA4SCU13LE148P5 4SCU13LE148P 4 29.38 31.25 33.75 H4TXV02 7/8 3/8 7/8 3/8 204
ARA4SCU13LE160P5 4SCU13LE160P 4 29.38 31.25 29.75 H4TXV02 7/8 or 1-1/8* 3/8 7/8 3/8 231
*Confirm per install manual - Use larger size when over 24" of lineset

Mobile/tablet users scroll table sideways to view all columns.

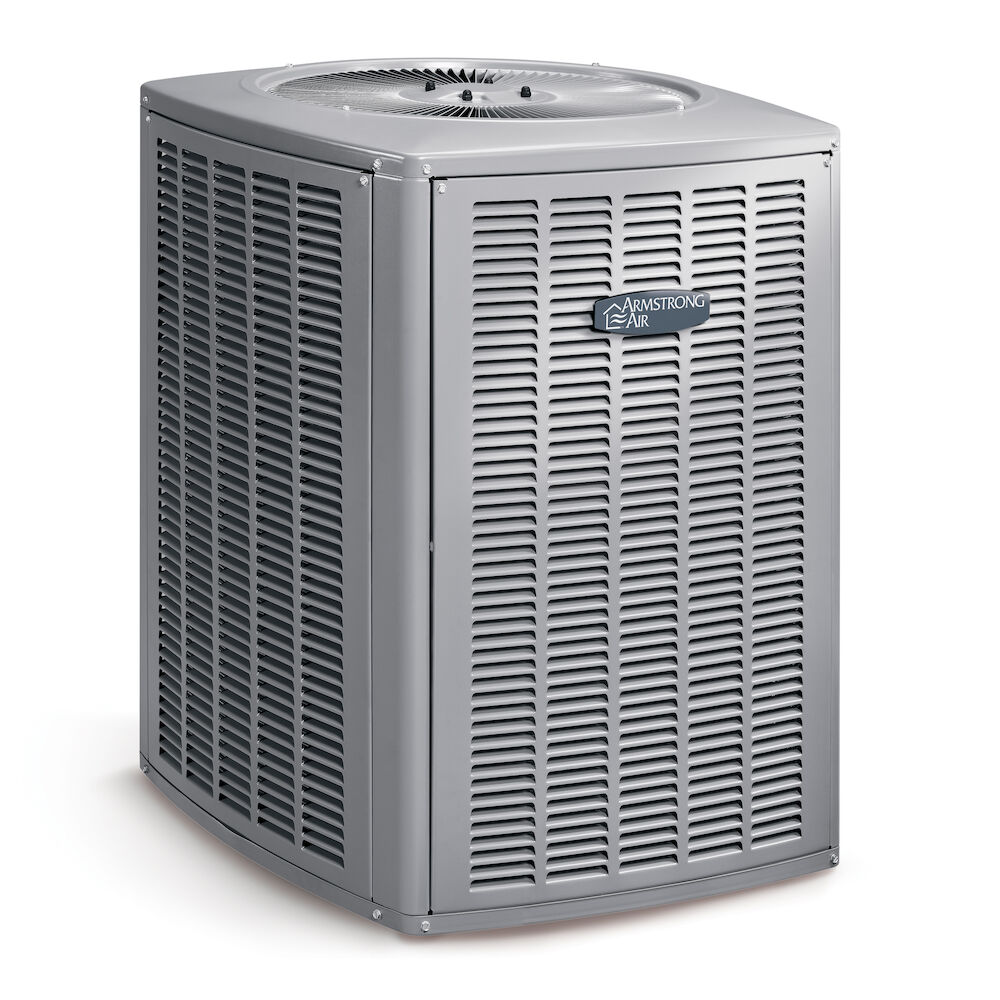

4SCU13LB
Armstrong Air

4SCU13LB

  • Up to 14 SEER
  • MHT™ Technology

ARMSTRONG AIR 4SCU13LB UP TO 14 SEER AIR CONDITIONERS

Dimensions (inch)
Item # Model Tons Width Depth Height Indoor TXV Refrigerant
Line Size		 Liquid Outdoor Unit
Connection		 Liquid Weight
(lbs.)
ARA4SCU13LB118P 4SCU13LB118P 1.5 24.75 26.75 25.75 H4TXV01 5/8 or 3/4* 3/8 or 1/4* 5/8 3/8 157
ARA4SCU13LB124P 4SCU13LB124P 2 24.75 26.75 25.75 H4TXV01 5/8 or 3/4* 3/8 or 1/4* 5/8 3/8 157
ARA4SCU13LB130P 4SCU13LB130P 2.5 24.75 26.75 29.75 H4TXV01 3/4 3/8 3/4 3/8 179
ARA4SCU13LB136P 4SCU13LB136P 3 24.75 26.75 29.75 H4TXV02 3/4 3/8 3/4 3/8 188
ARA4SCU13LB142P 4SCU13LB142P 3.5 29.38 31.25 29.75 H4TXV02 3/4 3/8 3/4 3/8 205
ARA4SCU13LB148P 4SCU13LB148P 4 29.38 31.25 33.75 H4TXV02 3/4 3/8 7/8 3/8 198
ARA4SCU13LB160P 4SCU13LB160P 5 29.38 31.25 29.75 H4TXV02 3/4 3/8 7/8 3/8 211
*Confirm per install manual - Use larger size when over 24" of lineset

Mobile/tablet users scroll table sideways to view all columns.

Heat Pumps

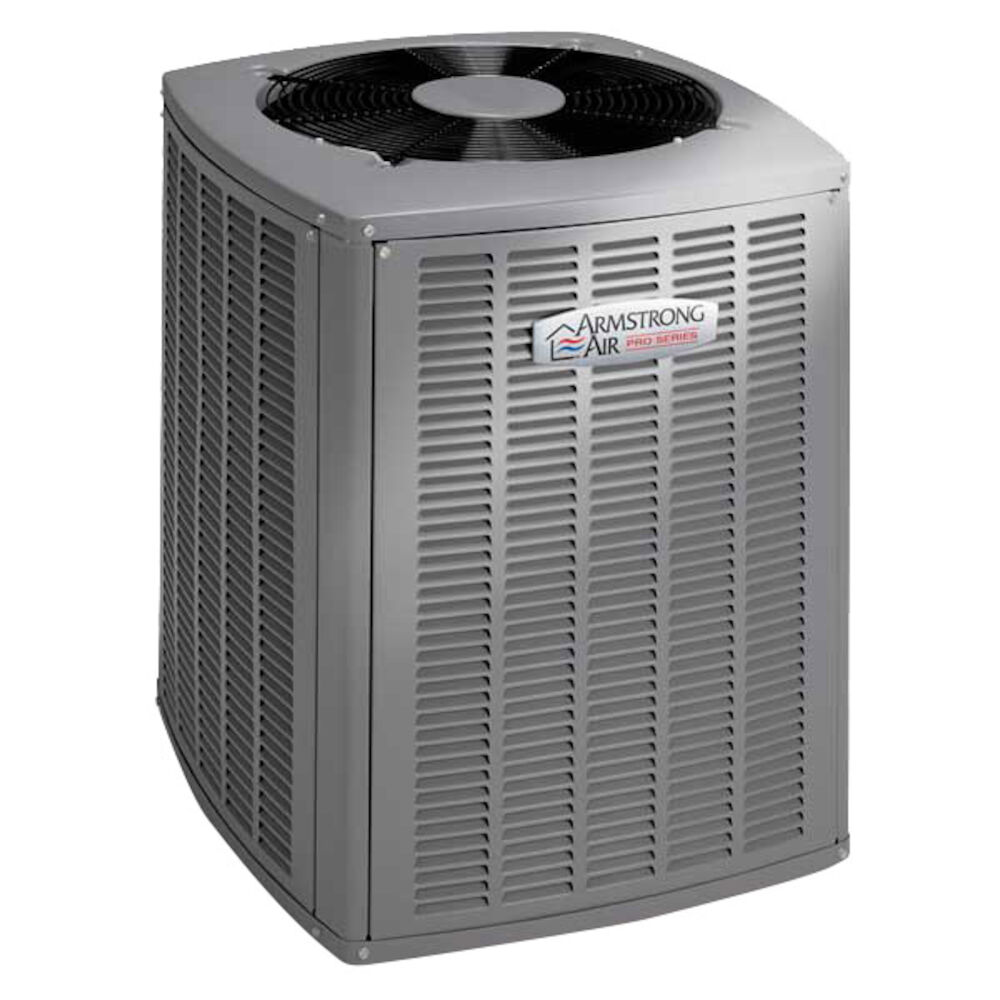

4SHP20LX
Armstrong Air Pro Series

4SHP20LX

  • PRO Series™
  • Comfort Sync® A3 Compatable
  • ENERGY STAR®
  • True Variable-Capacity Cooling
  • Up to 10 HSPF
  • Up to 20 SEER
  • Quiet Shift™ Technology
  • MHT™ Technology

ARMSTRONG AIR 4SHP20LX UP TO 20 SEER PRO SERIES™ HEAT PUMPS

Dimensions (inch) Refrigerant Line Size Outdoor Unit Connection
Unit # Model Tons Width Depth Height TXV Suction Liquid Suction Liquid Weight (lbs.)
ARA4SHP20LX124P 4SHP20LX124P 2 37.75 35.75 37.5 H4TXV01 3/4 3/8 3/4 3/8 243
ARA4SHP20LX136P 4SHP20LX136P 3 37.75 35.75 37.5 H4TXV02 7/8 3/8 7/8 3/8 245
ARA4SHP20LX148P 4SHP20LX148P 4 37.75 35.75 43.75 H4TXV03 7/8 3/8 7/8 3/8 287
ARA4SHP20LX160P 4SHP20LX160P 5 37.75 35.75 43.75 H4TXV03 1 1/8 3/8 7/8 ** 3/8 321
**Reducer fitting supplied with unit/Factory charged for 15'

Mobile/tablet users scroll table sideways to view all columns.

4SHP16LS
Armstrong Air Pro Series

4SHP16LS

  • PRO Series™
  • Comfort Sync® A3 Compatable
  • ENERGY STAR® Certified
  • Two-Stage Scroll Compressor
  • Up to 8.5 HSPF
  • Up to 16 SEER
  • Quiet Shift™ Technology
  • MHT™ Technology

ARMSTRONG AIR 4SHP16LS UP TO 16 SEER PRO SERIES™ HEAT PUMPS

Dimensions (inch) Refrigerant Line Size Outdoor Unit Connection
Unit # Model Tons Width Depth Height TXV Suction Liquid Suction Liquid Weight (lbs.)
ARA4SHP16LS124P3 4SHP16LS124P 2 24-3/4 26-3/4 33-3/4 H4TXV01 3/4 3/8 3/4 3/8 207
ARA4SHP16LS136P3 4SHP16LS136P 3 29-3/8 31-1/4 37-3/4 H4TXV01 7/8 3/8 7/8 3/8 253
ARA4SHP16LS148P3 4SHP16LS148P 4 35-3/4 37-3/4 37-3/4 H4TXV02 7/8 3/8 7/8 3/8 288
ARA4SHP16LS160P3 4SHP16LS160P 5 35-3/4 37-3/4 43-3/4 H4TXV03 11/8 3/8 7/8 3/8 313

Mobile/tablet users scroll table sideways to view all columns.

4SHP16LE
Armstrong Air

4SHP16LE

  • ENERGY STAR® Certified
  • Up to 16 SEER
  • Up to 9.5 HSPF
  • Heacy-Duty Compresso Blanket
  • Quiet Shift™ Technology
  • MHT™ Technology

ARMSTRONG AIR 4SHP16LE UP TO 16 SEER HEAT PUMPS

Dimensions (inch)
Unit # Model Tons Width Depth Height Indoor TXV Refrigerant
Line Size		 Liquid Outdoor Unit
Connection		 Liquid Weight
(lbs.)
ARA4SHP16LE118 4SHP16LE118P 1.5 28.25 28.25 43.25 H4TXV01 3/4 3/8 3/4 3/8 200
ARA4SHP16LE124 4SHP16LE124P 2 28.25 28.25 33.25 H4TXV01 3/4 3/8 3/4 3/8 210
ARA4SHP16LE130 4SHP16LE130P 2.5 28.25 28.25 33.25 H4TXV01 3/4 3/8 3/4 3/8 209
ARA4SHP16LE136 4SHP16LE136P 3 32.25 32.25 33.25 H4TXV02 7/8 3/8 7/8 3/8 247
ARA4SHP16LE142 4SHP16LE142P 3.5 32.25 32.25 43.25 H4TXV02 7/8 3/8 7/8 3/8 301
ARA4SHP16LE148 4SHP16LE148P 4 32.25 32.25 43.25 H4TXV02 7/8 3/8 7/8 3/8 305
ARA4SHP16LE160 4SHP16LE160P 5 32.25 32.25 43.25 H4TXV03 1-1/8 3/8 1-1/8 3/8 309

Mobile/tablet users scroll table sideways to view all columns.

Evaporative Coils

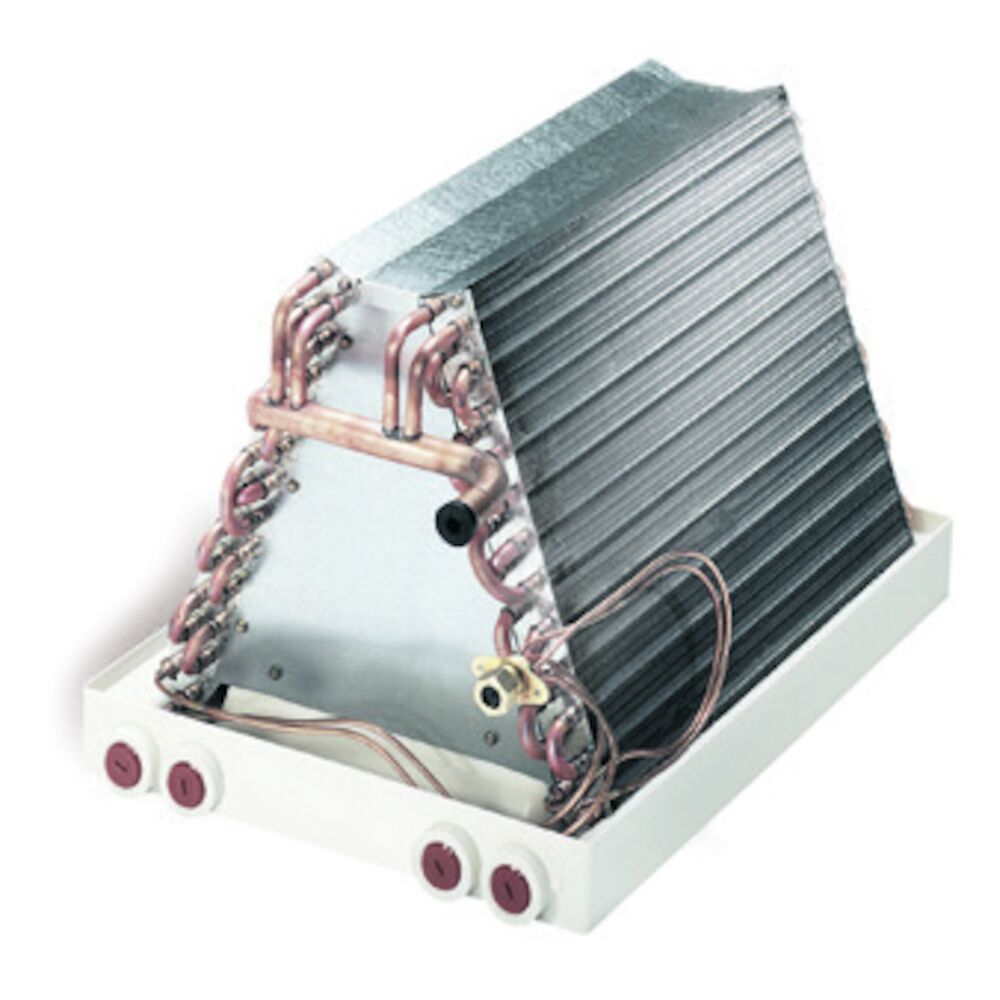

EU1P
Armstrong Air

EU1P

  • Anti-Microbial Drain Pans
  • MHT™ Technology

ARMSTRONG AIR EU1P UNCASED EVAPORATOR COILS W/ PISTON

Connection
Item # Model # Tons Type Control Vapor Liquid Width Depth Height Weight
AAEEU1P23AN1 EU1P23AN-1 1.5 / 2 Uncased Piston 3/4" 3/8" 13.00" 19.50" 17.19" 22
AAEEU1P36BN1 EU1P36BN-1 3.0 Uncased Piston 3/4" 3/8" 15.50" 19.50" 23.13" 33
AAEEU1P36CN1 EU1P36CN-1 3.0 Uncased Piston 3/4" 3/8" 20.00" 19.50" 22.50" 34
AAEEU1P62CN1 EU1P62CN-1 5.0 Uncased Piston 7/8" 3/8" 19.50" 21.50" 30.63" 58

Mobile/tablet users scroll table sideways to view all columns.

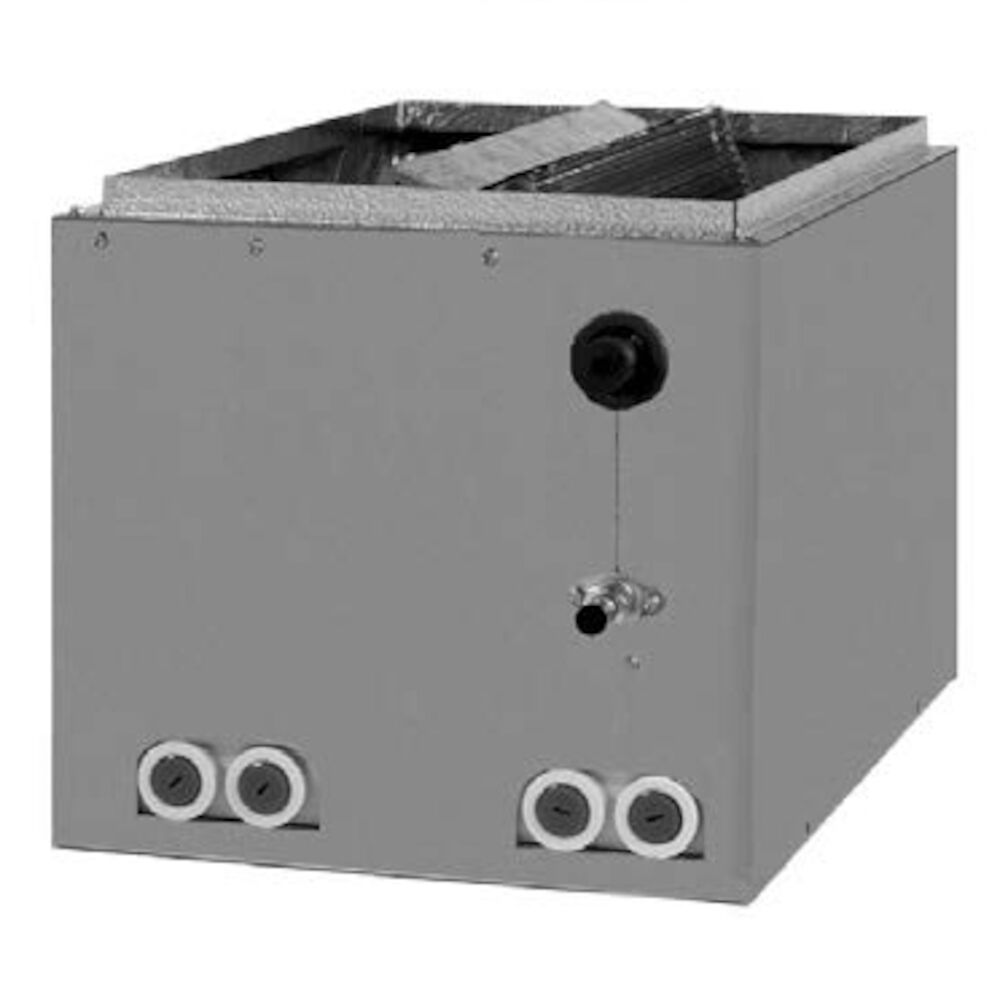

EC1P
Armstrong Air

EC1P

  • Anti-Microbial Drain Pans
  • MHT™ Technology

ARMSTRONG AIR EC1P CASED EVAPORATOR COILS W/ PISTON

Connection
Item # Model # Tons Type Control Vapor Liquid Width Depth Height Weight
AAEEC1P24BG1 EC1P24BG-1 1.5 / 2.0 Cased Piston 3/4" 3/8" 17.50" 21.00" 20.50" 40
AAEEC1P30BG1 EC1P30BG-1 2.5 Cased Piston 3/4" 3/8" 17.50" 21.00" 24.50" 46
AAEEC1P36BG1 EC1P36BG-1 3.0 Cased Piston 3/4" 3/8" 17.50" 21.00" 24.50" 51
AAEEC1P36CG1 EC1P36CG-1 3.0 Cased Piston 3/4" 3/8" 21.00" 21.00" 24.50" 55
AAEEC1P49CG1 EC1P49CG-1 4.0 Cased Piston 7/8" 3/8" 21.00" 22.00" 29.50" 72
AAEEC1P62CG1 EC1P62CG-1 5.0 Cased Piston 7/8" 3/8" 21.00" 22.00" 31.50" 76
AAEEC1P62DG1 EC1P62DG-1 5.0 Cased Piston 7/8" 3/8" 24.50" 21.00" 29.50" 77

Mobile/tablet users scroll table sideways to view all columns.

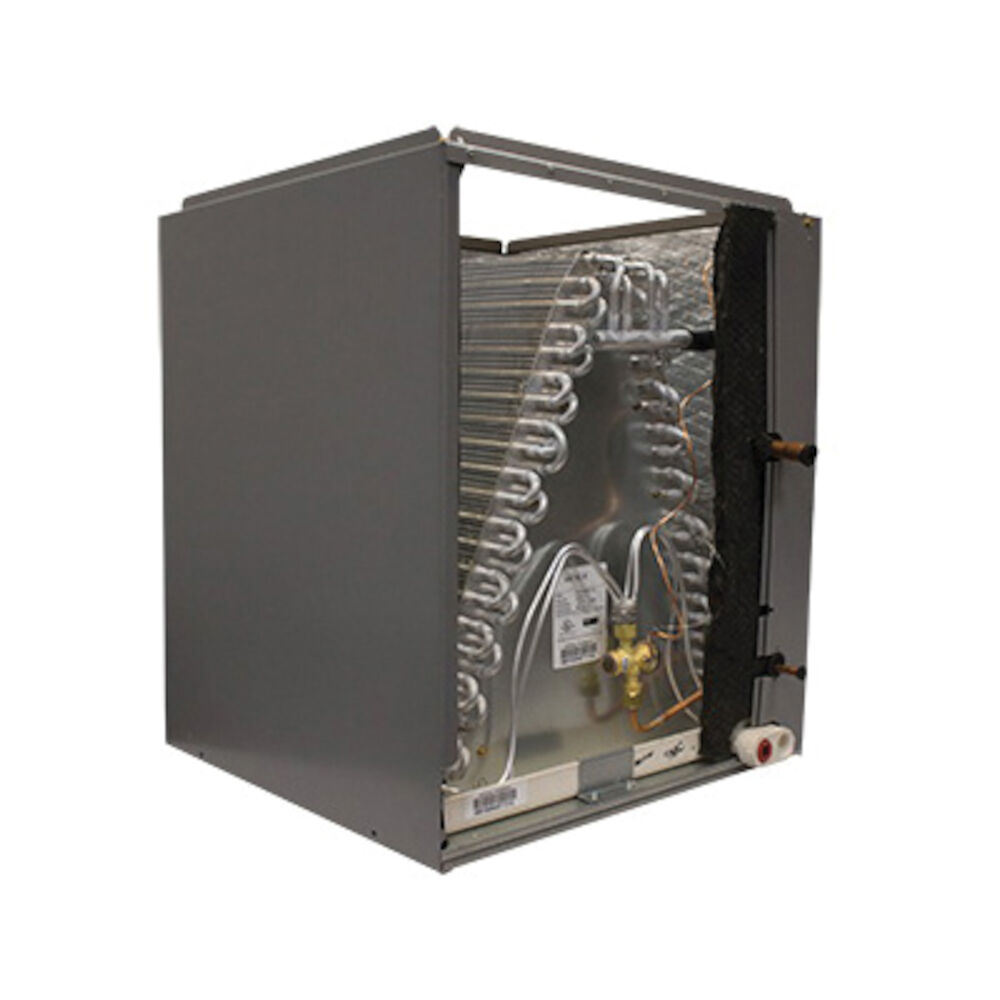

EAC4X
Armstrong Air

EAC4X

  • Factory-installed TXV
  • Fully Insulated Cabinet
  • Anti-Microbial Drain Pans
  • MHT™ Technology

ARMSTRONG AIR EAC4X CASED OMNIGUARD® EVAPORATOR COILS W/ TXV

Connection
Item # Model # Tons Type Control Vapor Liquid Width Depth Height Weight
AAEEAC4X24A-50 EAC4X24A-50 2.0 Cased TXV 3/4" 3/8" 14.50" 21.00" 18.50" 38
AAEEAC4X24B-50 EAC4X24B-50 2.0 Cased TXV 3/4" 3/8" 17.50" 21.00" 18.50" 43
AAEEAC4X30B-50 EAC4X30B-50 2.5 Cased TXV 3/4" 3/8" 17.50" 21.00" 22.50" 50
AAEEAC4X36B-50 EAC4X36B-50 3.0 Cased TXV 3/4" 3/8" 17.50" 21.00" 24.50" 50
AAEEAC4X30-36C-50 EAC4X30/36C-50 2.5/3 Cased TXV 3/4" 3/8" 21.00" 21.00" 24.50" 48
AAEEAC4X48C-50 EAC4X48C-50 4.0 Cased TXV 7/8" 3/8" 21.00" 21.00" 27.50" 60
AAEEAC4X60C-50 EAC4X60C-50 5.0 Cased TXV 7/8" 3/8" 21.00" 21.00" 27.50" 73
AAEEAC4X60D-50 EAC4X60D-50 5.0 Cased TXV 7/8" 3/8" 24.50" 21.00" 29.50" 72

Mobile/tablet users scroll table sideways to view all columns.

Controls

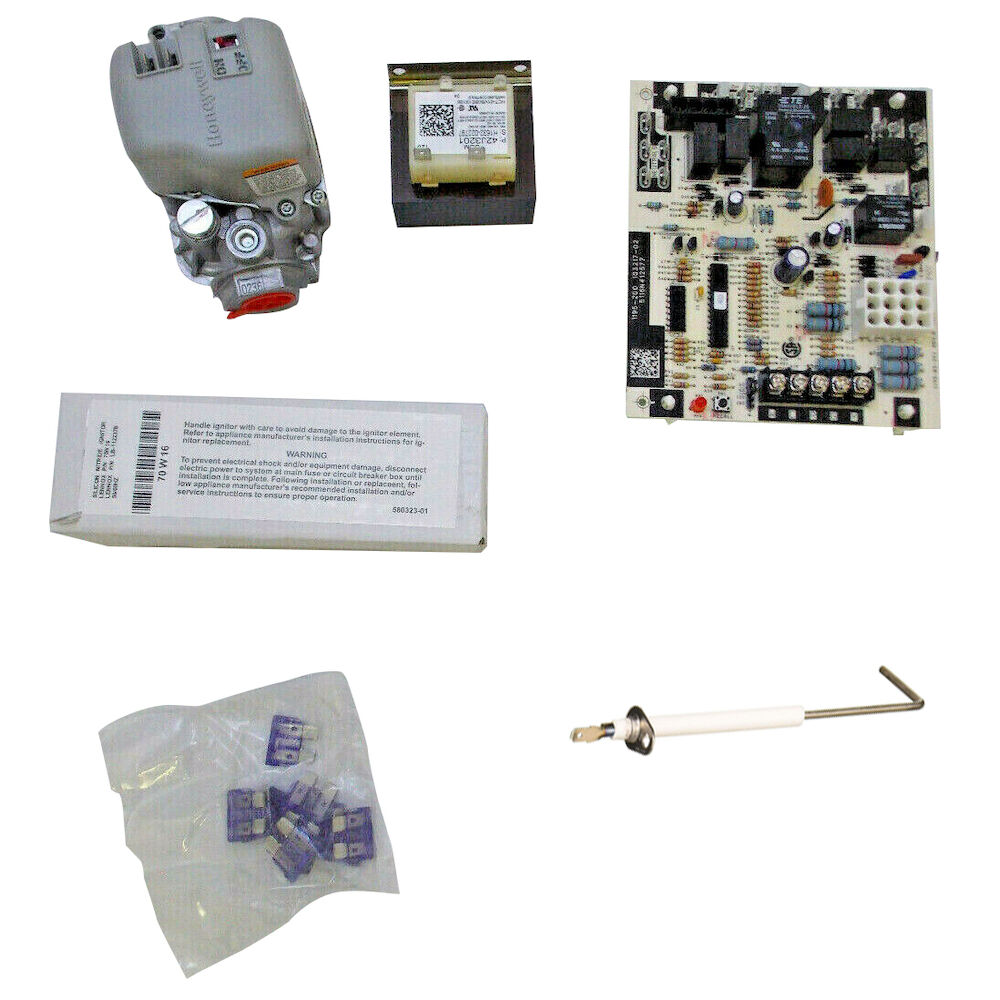

86W57 60592714 Night Service Kit A951E/A801E(A)
Armstrong Air

ACCESSORIES

Item # MFG # Model # Description
AAE15X38 15X38 605927-33 15X38 60592733 Night Service Kit for A97MV
AAE15X36 15x36 605927-31 15X36 605927-31 A96US2V/ DS2V Night Service Kit
AAE10U95 10U95 605927-23 10U95 60592723 Night Service Kit A962E
AAE86W57 86W57 605927-14 86W57 60592714 Night Service Kit A951E/A801E (A)
AAE14C96 14C96 605927-24 14C96 605927-24 Night Service Kit A802V

Mobile/tablet users scroll table sideways to view all columns.

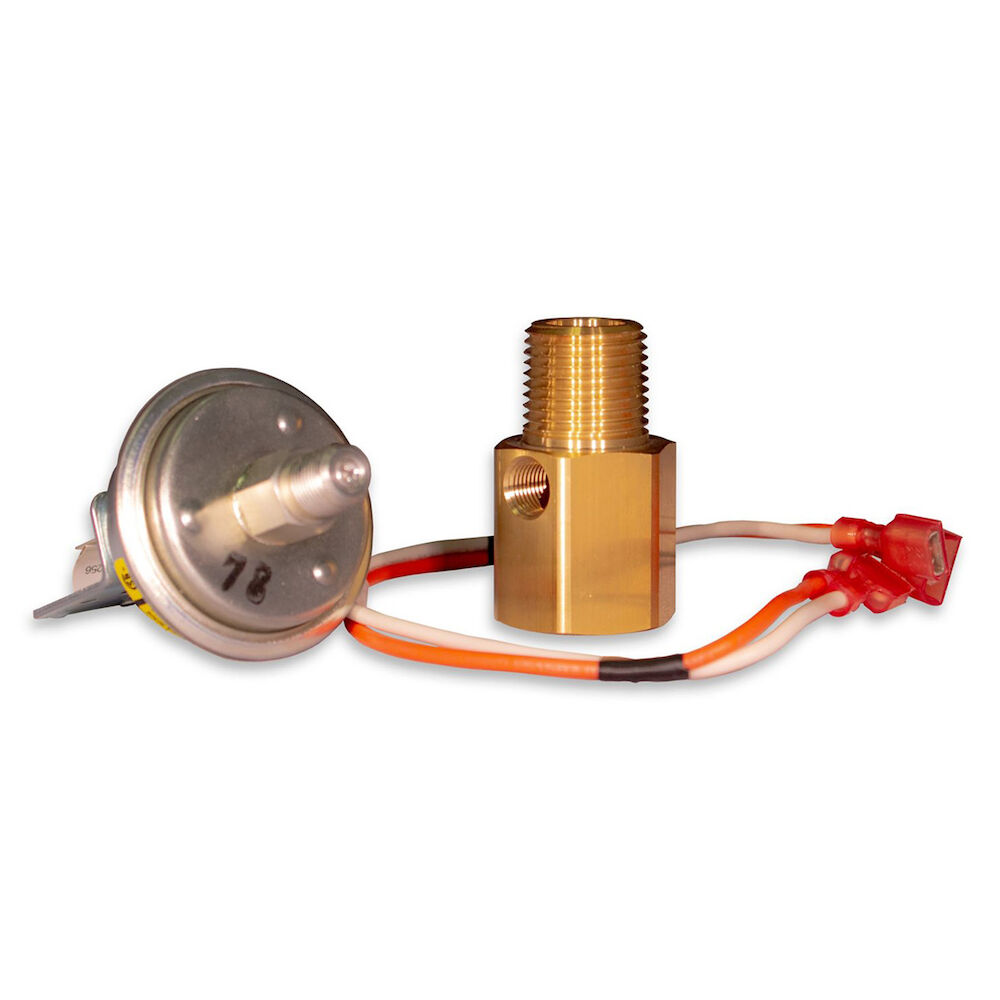

11K48 60488815 NG to LP Conversion Kit(B)
Armstrong Air

NATURAL GAS TO LP CONVERSIONS

Item # MFG # Model # Description
AAE68W77 68W77 605152-02 68W77 60515202 NAT to LP Conversion Kit A97MV
AAE11K48 11K48 604888-15 11K48 60488815 NG to LP Conversion Kit - 2 Stage (B)
AAE11K50 11K50 604888-13 11K50 60488813 NAT to LP Conversion Kit - Single Stage
AAE17H64 17H64 604888-19 17H64 604888-21 NG to LP Conversion Kit - 2 Stage 30KBTU

Mobile/tablet users scroll table sideways to view all columns.

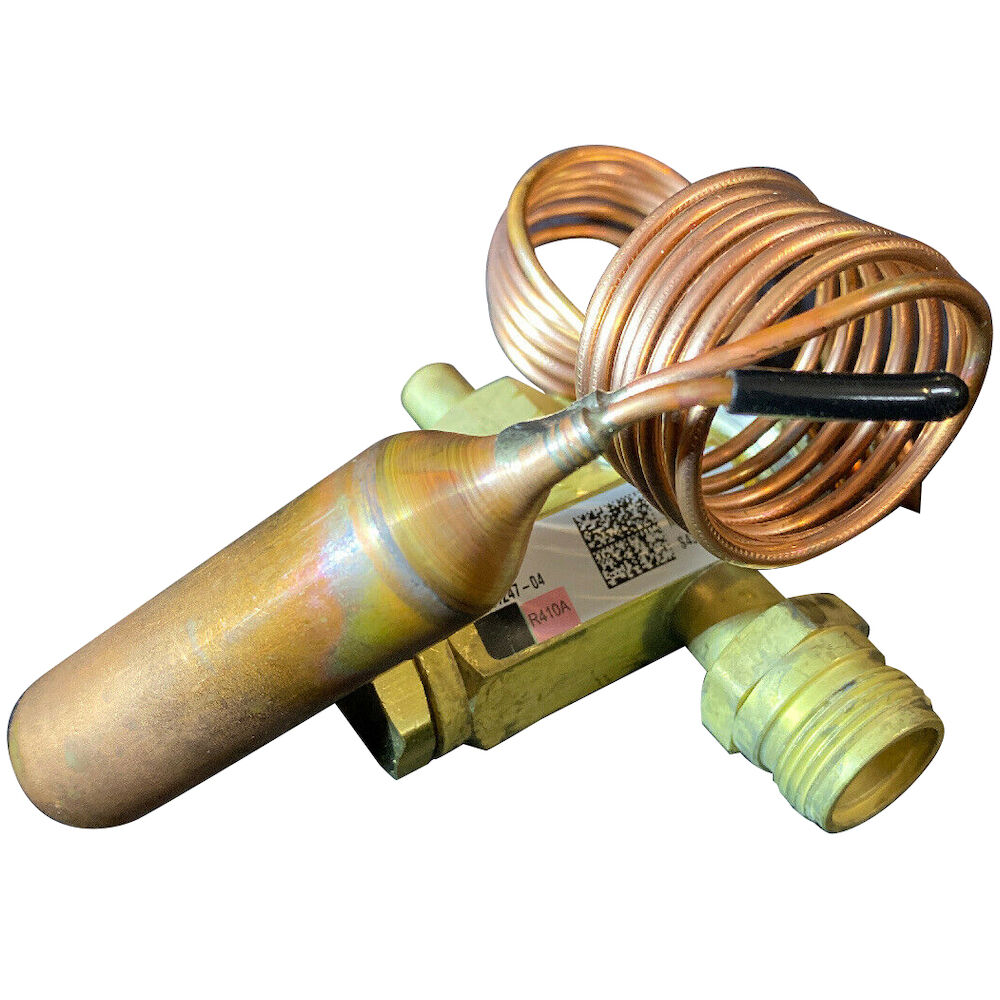

H4TXV031 TXV Kit(C)
Armstrong Air

TXVs

Item # MFG # Model # Description
AAEA4TXV011 1.851361 A4TXV01-1 A4TXV011 TXV Kit
AAEA4TXV021 1.851362 A4TXV02-1 A4TXV021 TXV Kit
AAEH4TXV011 1.851363 H4TXV01 H4TXV011 TXV Kit R410A Heat Pump
AAEH4TXV021 1.851364 H4TXV02 H4TXV021 TXV Kit R410A Heat Pump
AAEH4TXV031 1.851365 H4TXV03 H4TXV031 TXV Kit (C)

Mobile/tablet users scroll table sideways to view all columns.
